Description

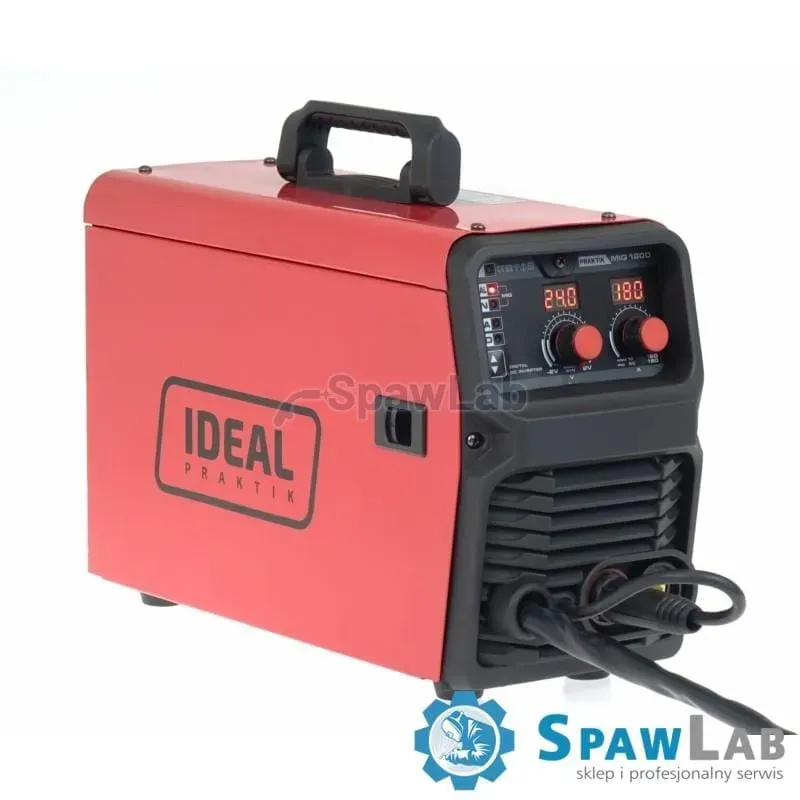

The PRAKTIK MIG 1800 MMA is an inverter semi-automatic welding machine designed for MIG/MAG, MMA, FLUX and TIG Lift arc welding. The machine is designed for a wide range of applications: from maintenance work to auto body repair.
PRAKTIK MIG 1800 is used for welding carbon and low-alloy steels. Welding is carried out in active gas or mixture shielding, and in reverse polarity without gas.
Physical parameters

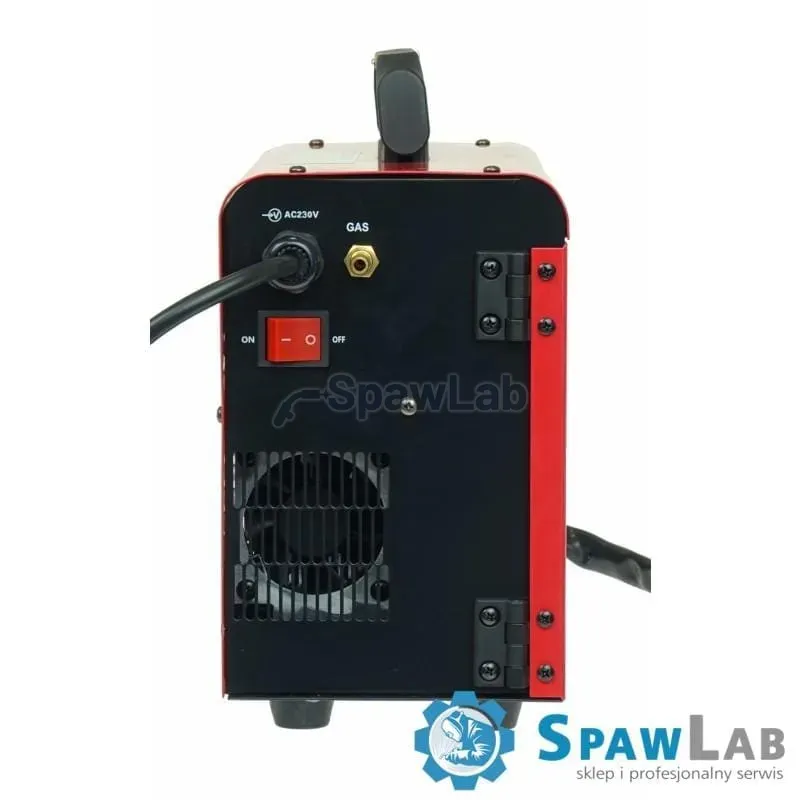

The device has a fan-cooling system which definitely increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase 230V power supply.
The device is equipped with a power plug.

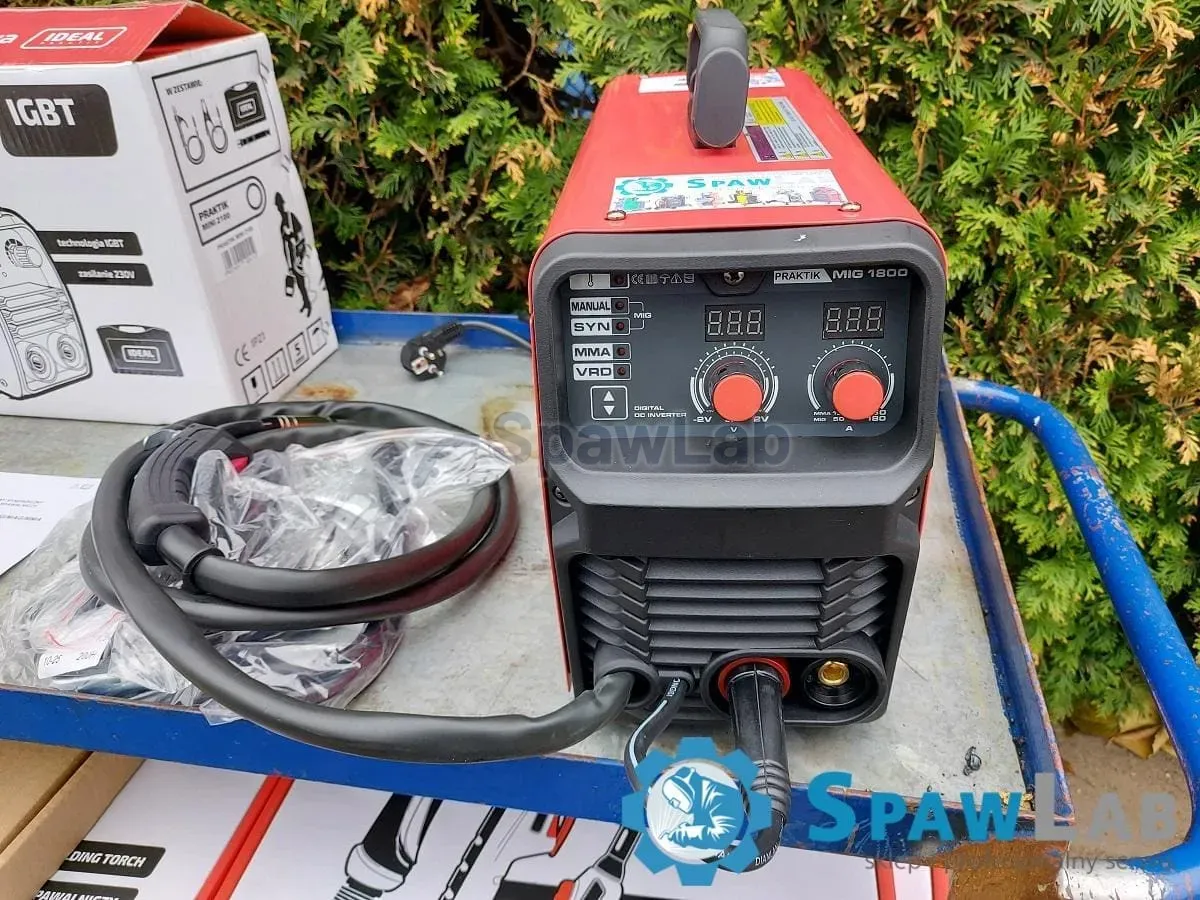

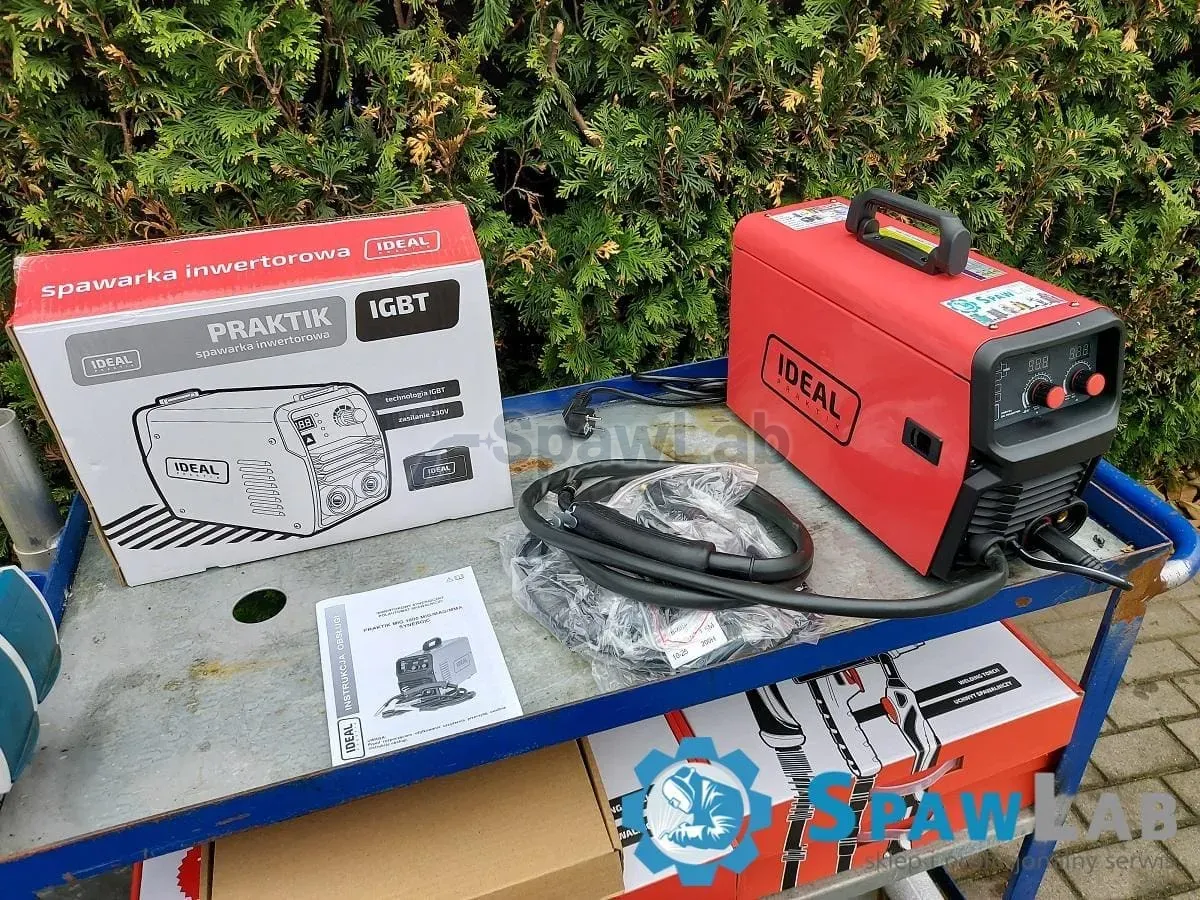

Equipment

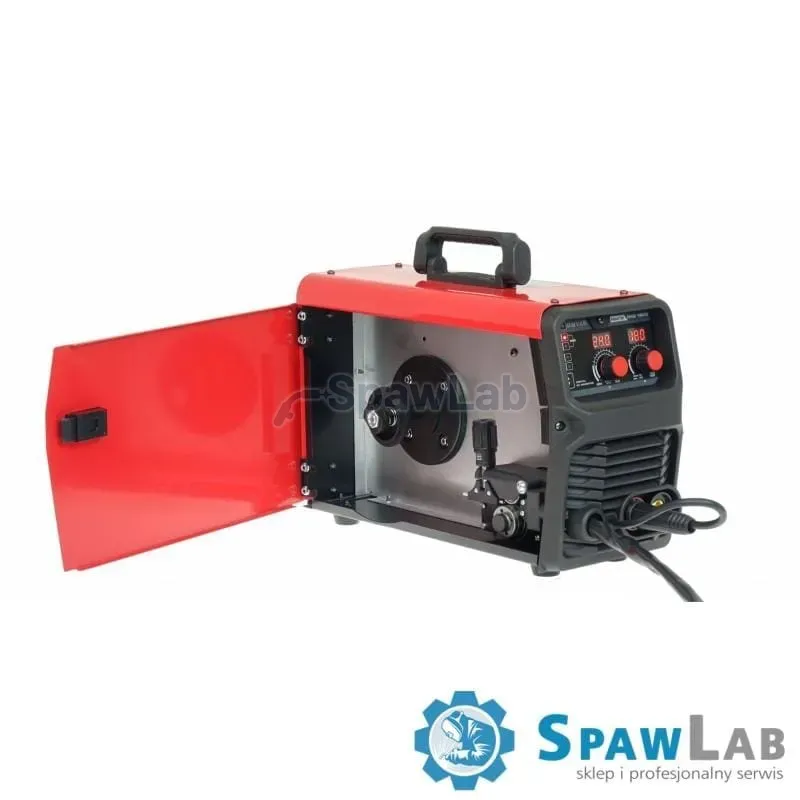

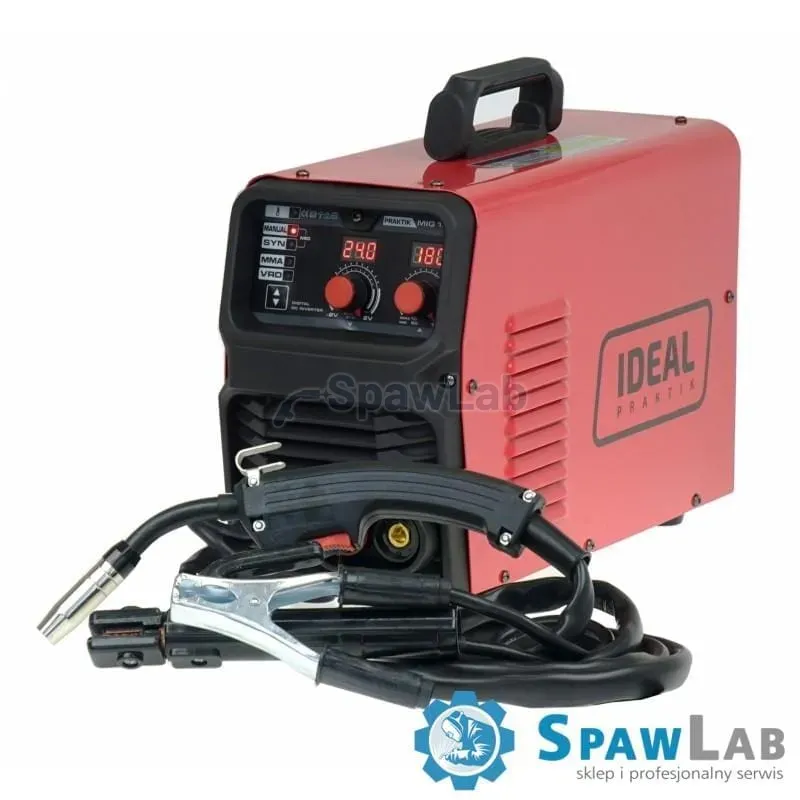

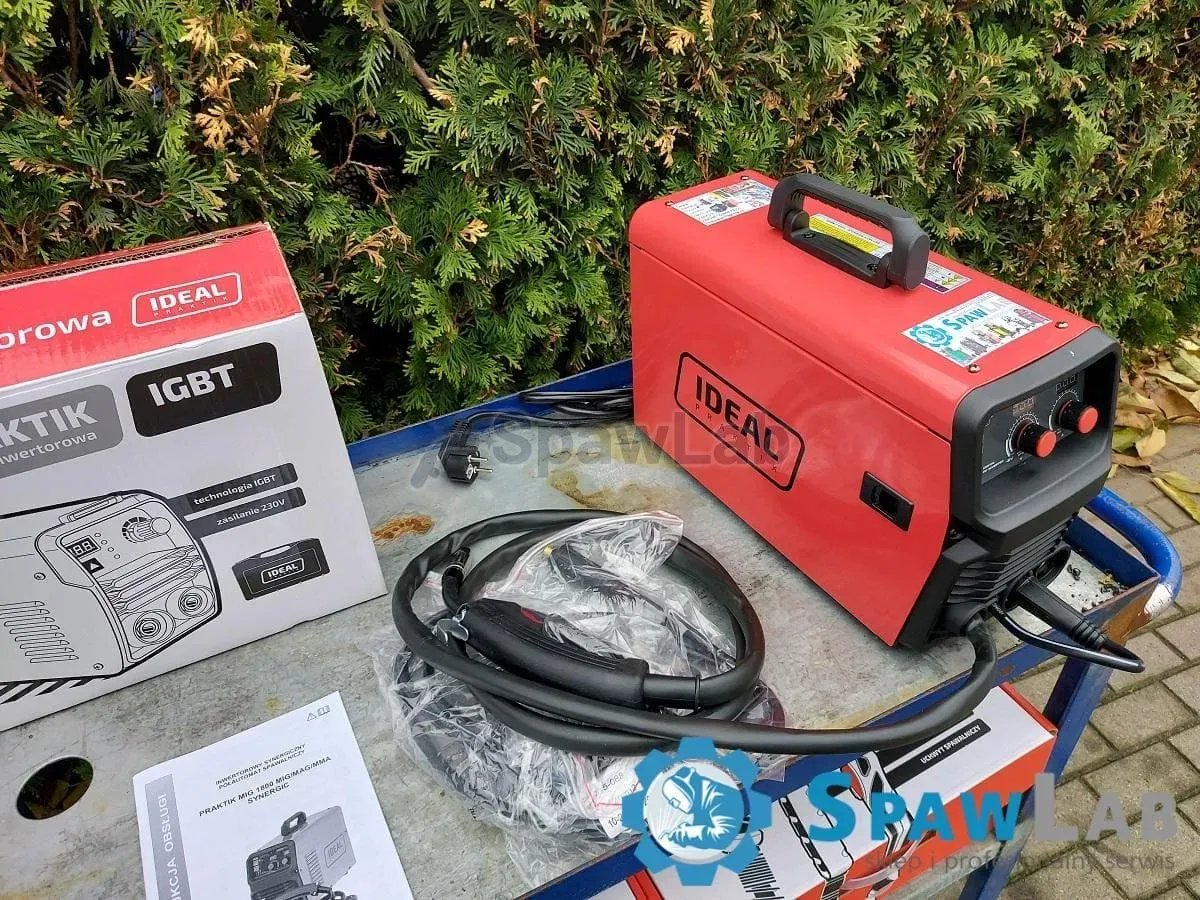

The supply includes a device with a direct MIG welding chuck, a 2-meter-long ground wire and a 1.5-meter-long electrode wire.
Warranty conditions
Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side.
| Wire spool size | max 5kg |
| Degree of protection | IP 21S |
| Weight of device / set | 11 / 12 kg |
| Overall dimensions L x W x H | 400x160x260 mm |
| Package dimensions L x W x H | 485x245x340 mm |
| SPECIFICATIONS | |
| Power | 5 kW |
| Idle state voltage | 51 V |
| Maximum current | 180 A (MIG) / 160 A (MMA) |
| Current at 100% operation | 139 A |
| Current at 60% operation | 180 A |
| Self-insulating wire diameter | 0.8 – 0.9 mm |
| Steel wire diameter | 0.6 – 0.8 mm |
| Welding electrode diameter | 1.6 – 4.0 mm |

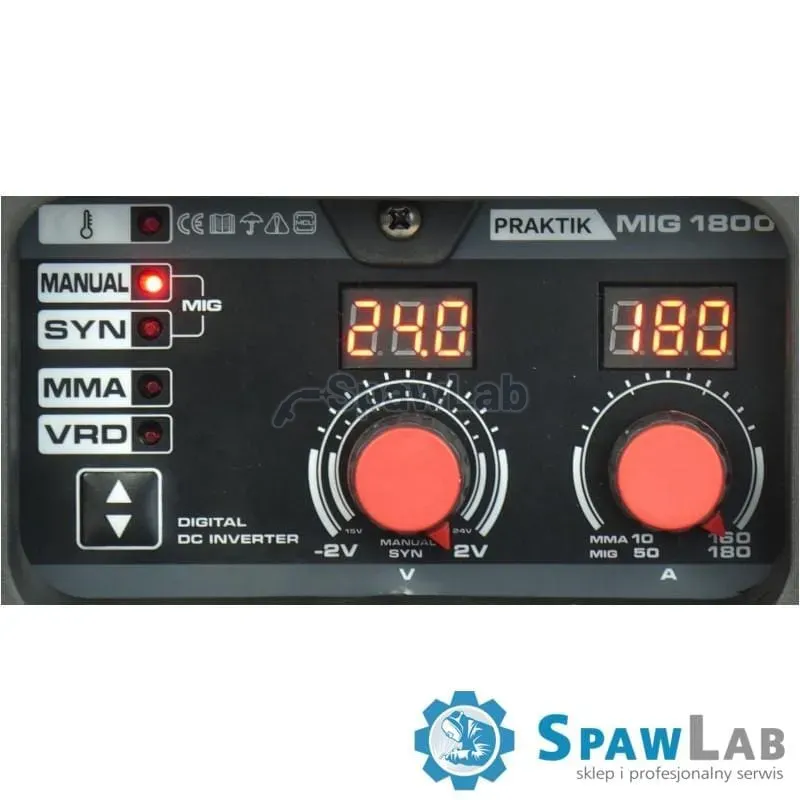

| Welding current adjustment range | 50 – 180 A (MIG/MAG) / 10 – 160 A (MMA) |
| POWER SUPPLY PARAMETERS | |
| Mains protection | C16A |
| Rated supply voltage | 230 V – 1 ph 50/60Hz |
