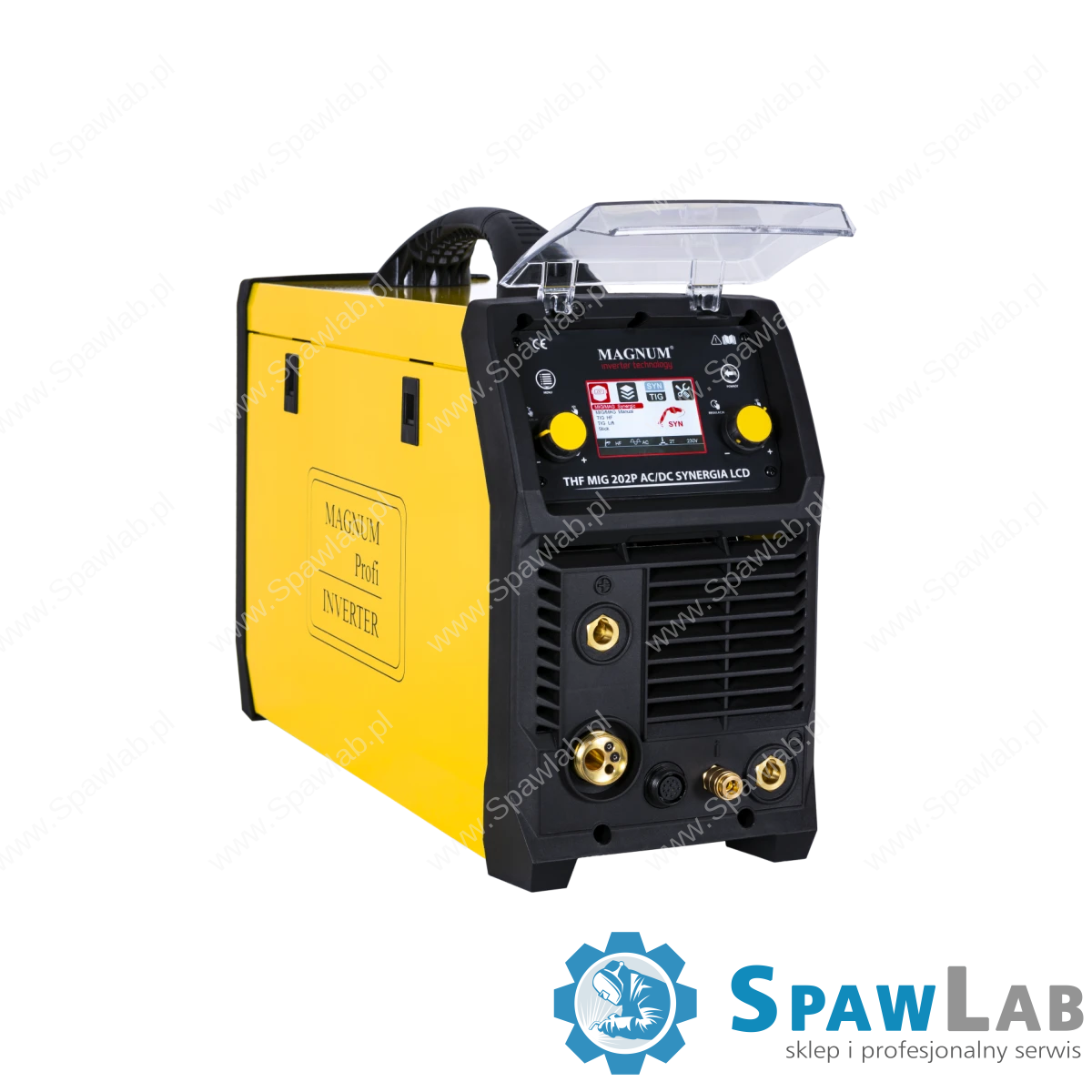

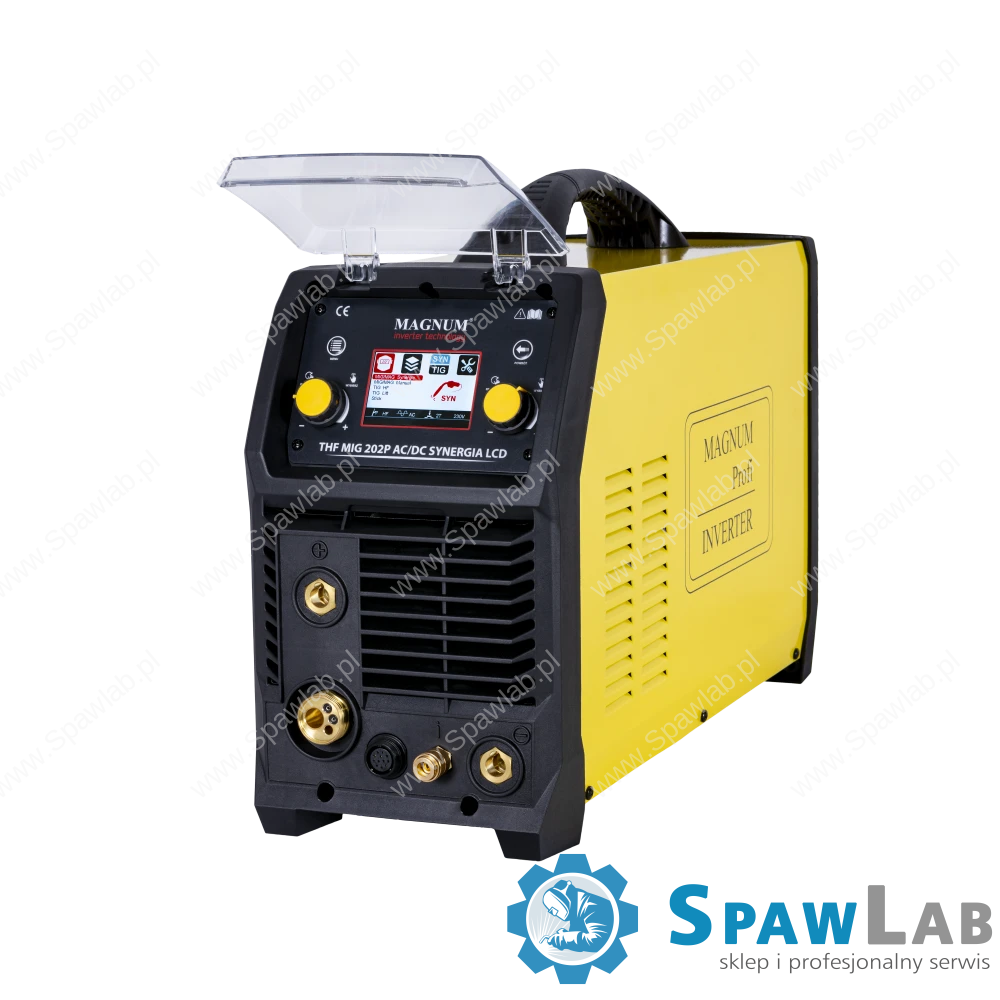

Magnum THF MIG 202 PULS AC/DC SYN PFC LCD multiprocess welder
The Magnum THF MIG 202 PULS AC/DC is an all-in-one machine that joins the full function set of an advanced double pulse MIG/MAG welder with that of a professional TIG AC/DC welder. It was designed for demanding users, from professional workshops to ambitious hobby users who accept no compromise. With PFC technology, synergic control and an intuitive LCD panel, this model redefines versatility among machines supplied from a 230V socket.
Key features
True 4-in-1: MIG/MAG, TIG AC/DC (HF striking), MMA, braze welding.
Advanced MIG/MAG: synergic control, pulse and double pulse for welds with the look of TIG.
Full TIG AC/DC control: AC balance, frequency and wave shape, TIG pulse.
Active PFC circuit: more output, stable work on long extension leads and on a weak supply.
Modern control panel with a large colour LCD display.

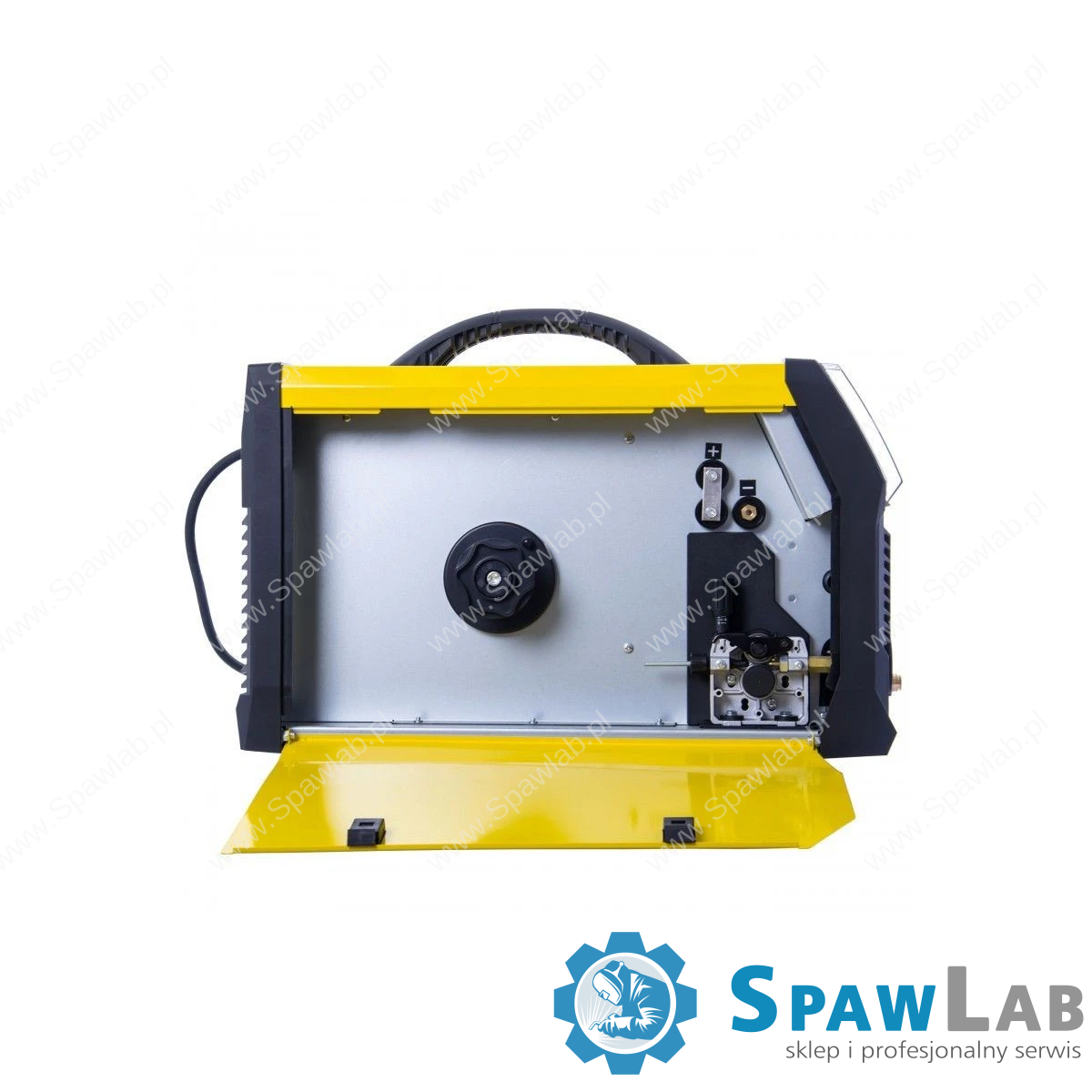

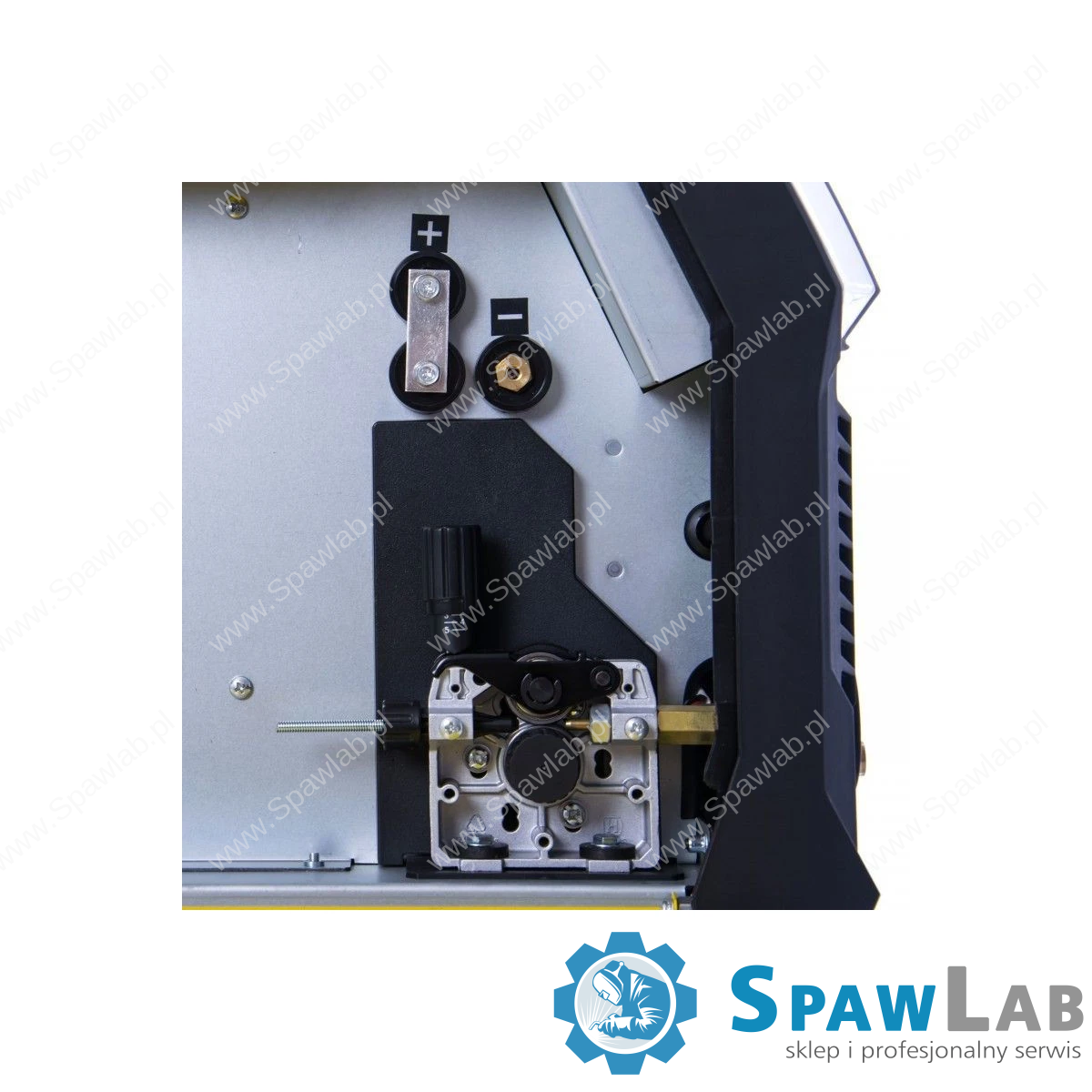

Reliable two-roll wire feeder for steady wire feeding.
High 60% duty cycle at 200A for continuous work.
Technical details
Technology in detail
At the heart of the THF MIG 202 sits an advanced IGBT inverter board supported by a set of premium class technologies. The PFC circuit (Power Factor Correction) actively corrects the power factor, which means lower current draw and tolerance of voltage fluctuation. In MIG/MAG mode, synergic control with double pulse is the key to efficient welding of aluminium and stainless steel with a perfect weld face. In the TIG process the machine gives full control over welding aluminium (AC) and other metals (DC), contactless HF arc striking, adjustment of AC balance and frequency and an advanced TIG pulse allow precise control over the weld pool, even on very thin material.
Recommended applications
- Professional automotive workshops (welding aluminium, stainless steel, braze welding).
- Production and repair of stainless steel structures (railings, furniture, installations).
- Work with aluminium (light structures, boxes, fittings).
- Advanced maintenance and refurbishment work in industry.
- A versatile welding station for the demanding craftsman.

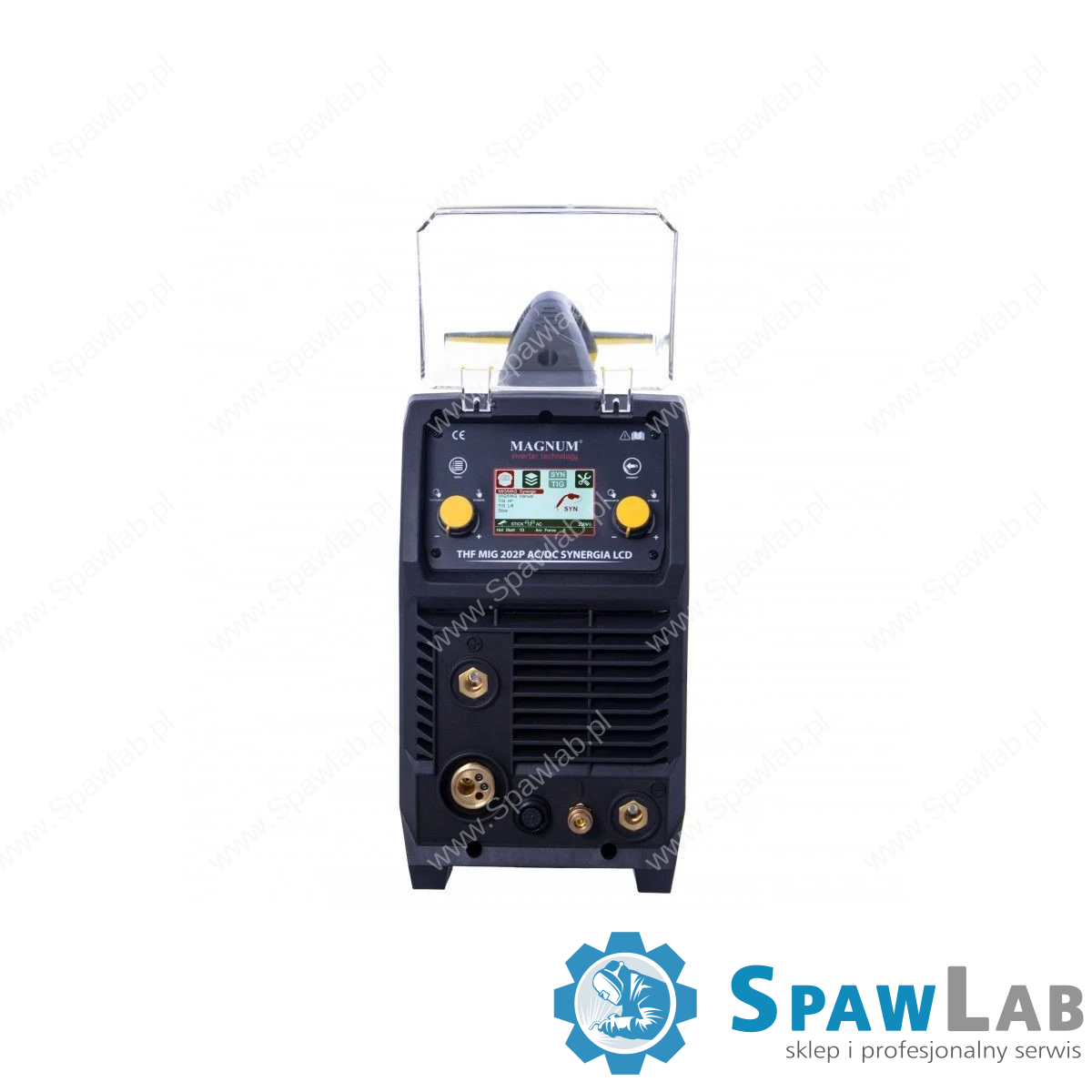

Control panel
The control panel was designed around ergonomics and intuitive use. In the centre sits a large colour LCD display that presents all welding parameters, including the pulse waveforms, in a clear graphic form. Navigation runs through a single multifunction knob, which allows an immediate choice of welding process, activation of the synergic programs and precise adjustment of the advanced functions. Despite how much the machine can do, operating it stays simple and logical.
Product specification
| Feature | Value |
|---|---|
| Power supply | AC 230V / 50Hz (with PFC circuit) |
| Welding processes | MIG/MAG, MIG pulse, MIG dual pulse, braze welding, TIG AC, TIG DC, TIG pulse, MMA |
| Technology | IGBT inverter with PFC |
| Maximum welding current [A] | 200 |
| Duty cycle [%] | 60% @ 200A |
| Wire feeder | Professional 2-roll |
| Wire spools supported [kg] | 1 / 5 |
| Weight [kg] | 18.5 |
What you get in the set
- Magnum THF MIG 202 PULS AC/DC SYN PFC LCD machine
- MIG/MAG welding torch MB15 (3m)
- Professional TIG welding torch SR26 with adjustment in the handle (4m)
- MMA electrode holder
- Earth cable
- User manual in Polish
About the Magnum brand
Magnum is a Polish brand that has been one of the leaders on the welding market since 1996. Its business model rests on supplying technically advanced machines, made in Asia to Polish specification, at a very competitive price. The strength of the brand is value for money, an offer that forms a complete workshop ecosystem, and reliable service with a door-to-door warranty that builds customer trust, from hobby users to professional workshops.
