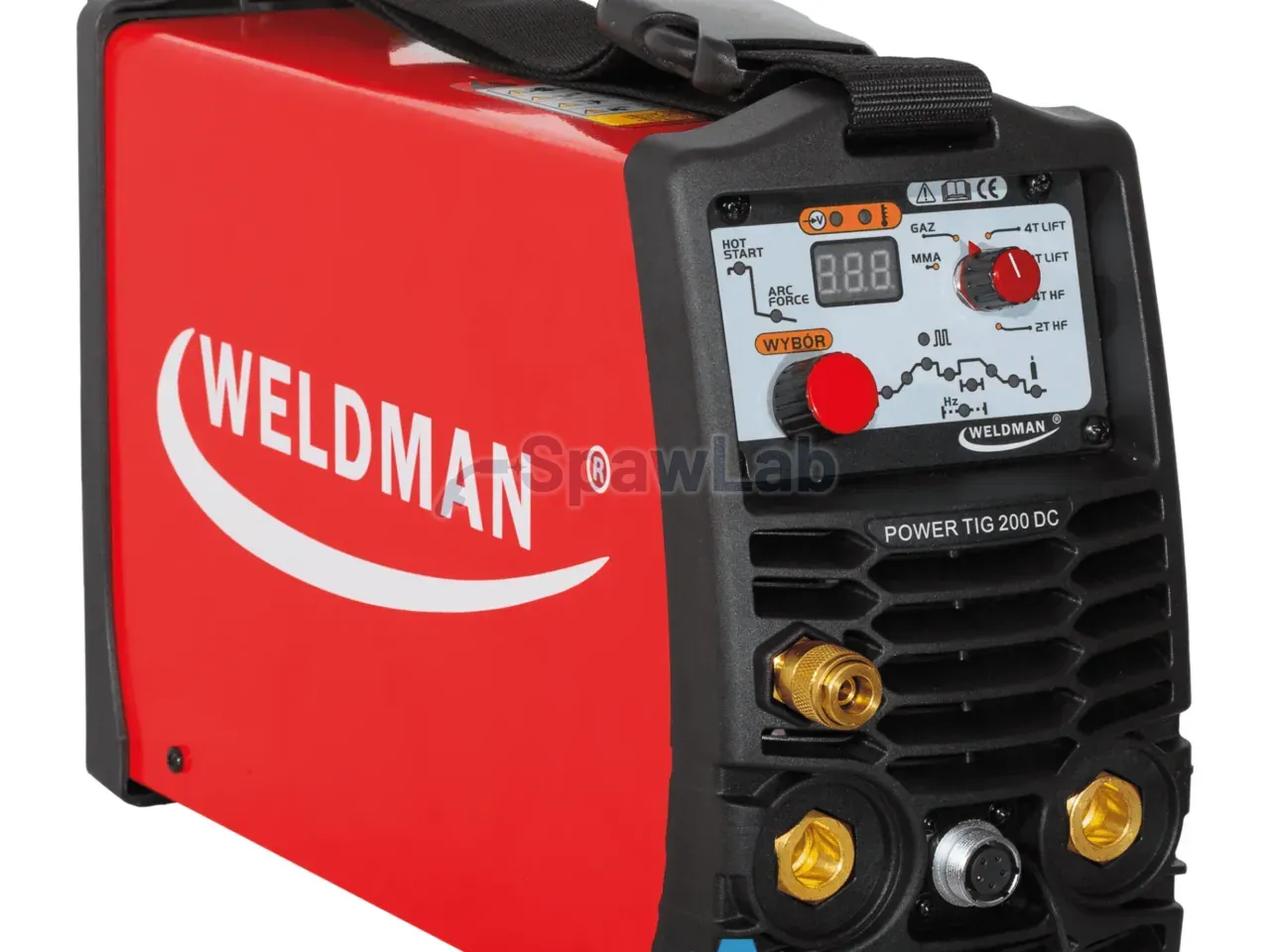

This machine from the POWER TIG series (called the welder from here on) is built on inverter technology with IGBT components together with PWM and MCU.
The welder is designed for welding in the following processes:
1) MMA
2) TIG DC
3) TIG DC PULSE on carbon, alloy, stainless and acid resistant steel, cast iron and copper.
The welder runs in 2-stroke/4-stroke mode with contactless (HF) or contact (LIFT) arc ignition.
It has an adjustable ARC FORCE (arc pressure) and HOT START function.
The welder has intelligent thermal, overload, undervoltage and overvoltage protection.
All machine parameters are set on the control panel, which carries a multifunction knob and an LCD display. That keeps setting and reading every welding parameter quick and clear.
The welder suits home users and professionals alike.
Equipment
The welder comes with:
• TIG WP 17 (DX50) welding torch 4 m
• earth lead 3m with 200A clamp (DX50)
• power lead 3 m with 230V plug
• PU gas hose 3.5 m with a type 21 quick coupling and 2 hose clamps
• plastic carrying case
Technical data
| Code | 104 404 |
| Machine type | POWER TIG 200 |
| Supply voltage [V] | 230 |
| Open circuit voltage [V] | 62 |
| Welding current range [A] | TIG DC, 5-200 MMA, 5-170 |
| Max. output at 40°C | 120A@60% 100A@100% |
| Protection class [IP] | 23 |
| Dimensions [cm] | 43x14x25 |
| Weight [kg] | 7.5 |
