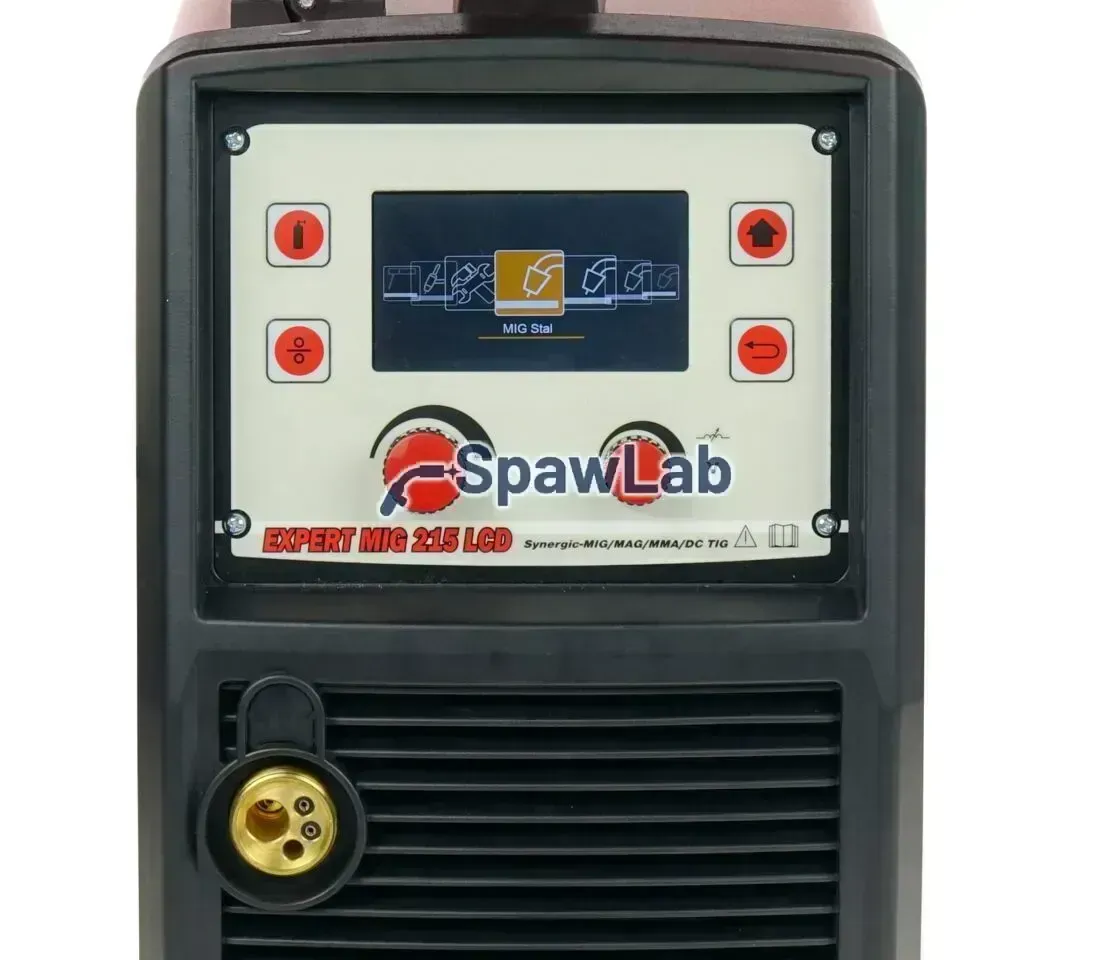

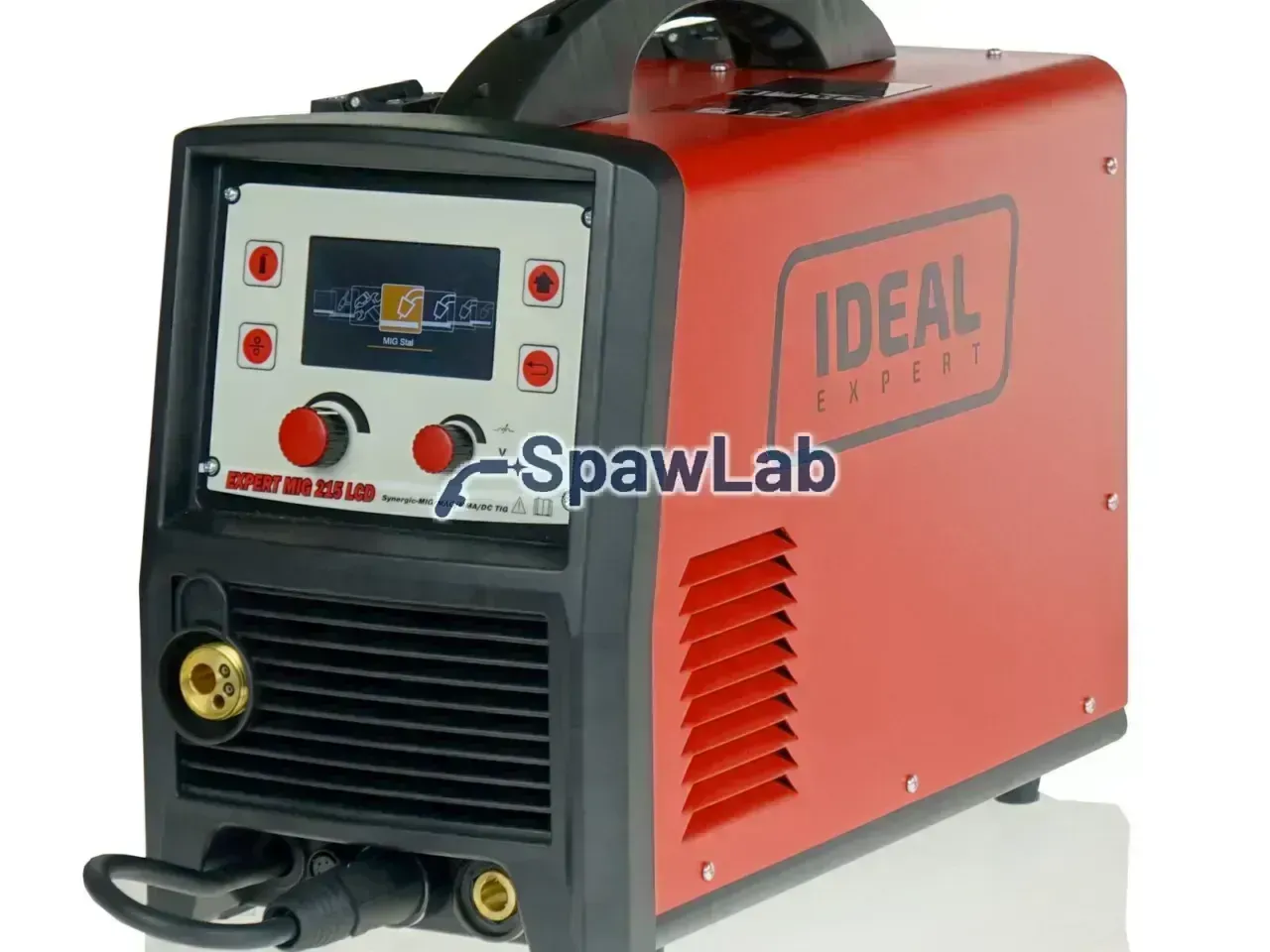

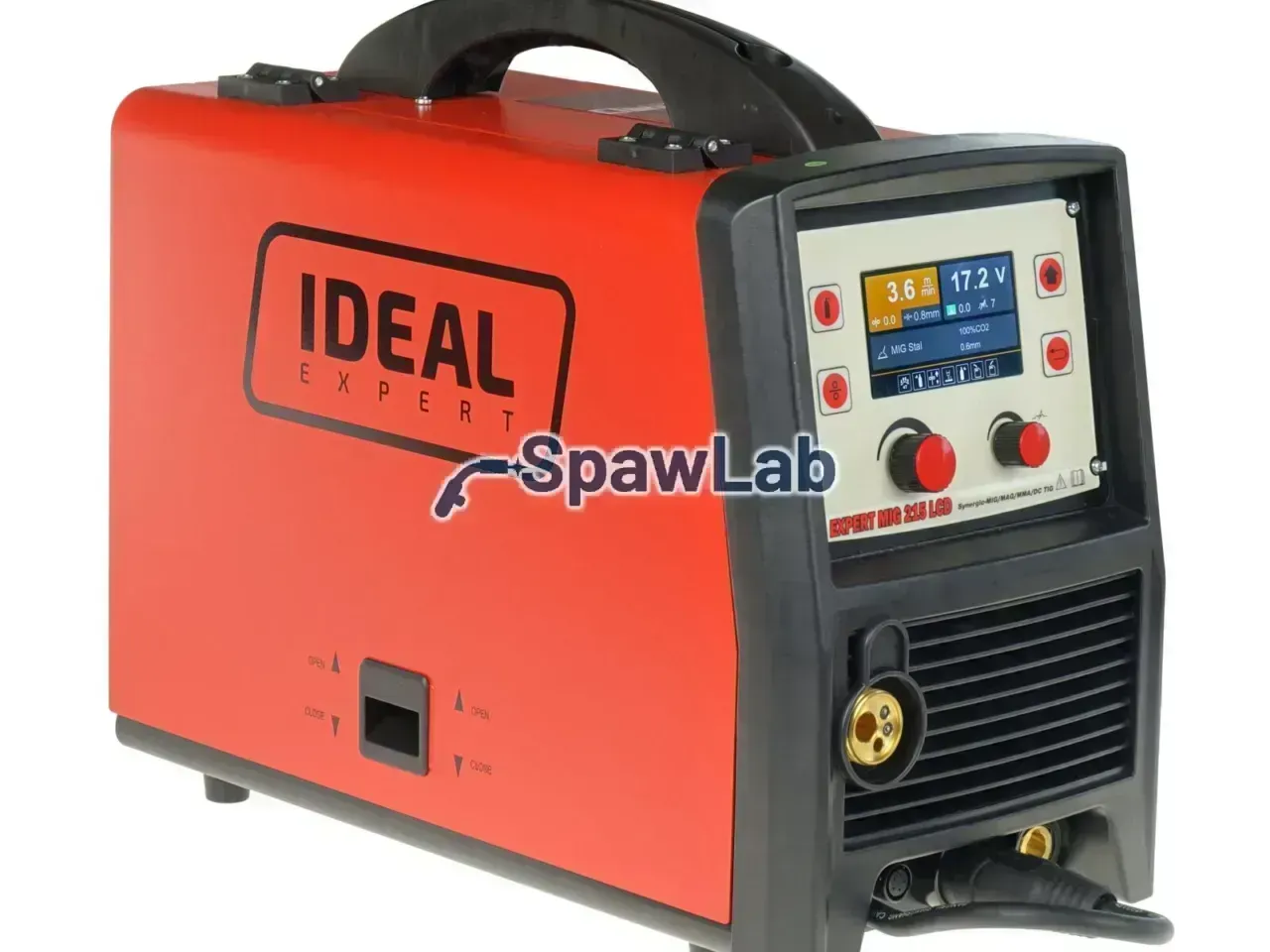

Ideal Expert MIG 215 LCD MIG/MMA/TIG Synergic ALU is a synergic 230 V inverter MIG/MAG welder for MIG/MAG, self-shielded wire (FLUX), TIG LIFT and MMA welding. You use it on steel, stainless steel and aluminium, and you can also braze galvanised car bodies and high-strength steels. It suits maintenance work and car body repairs. The menu on the LCD display is in Polish.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains input current: 16 A at 60%, 36 A maximum
- Power: 2.2 kW at 60%, 5 kW maximum
- Open circuit voltage: 69 V
- Welding current range: 40 to 200 A
- Duty cycle: 200 A at 60% (20°C), 200 A at 40% (40°C)

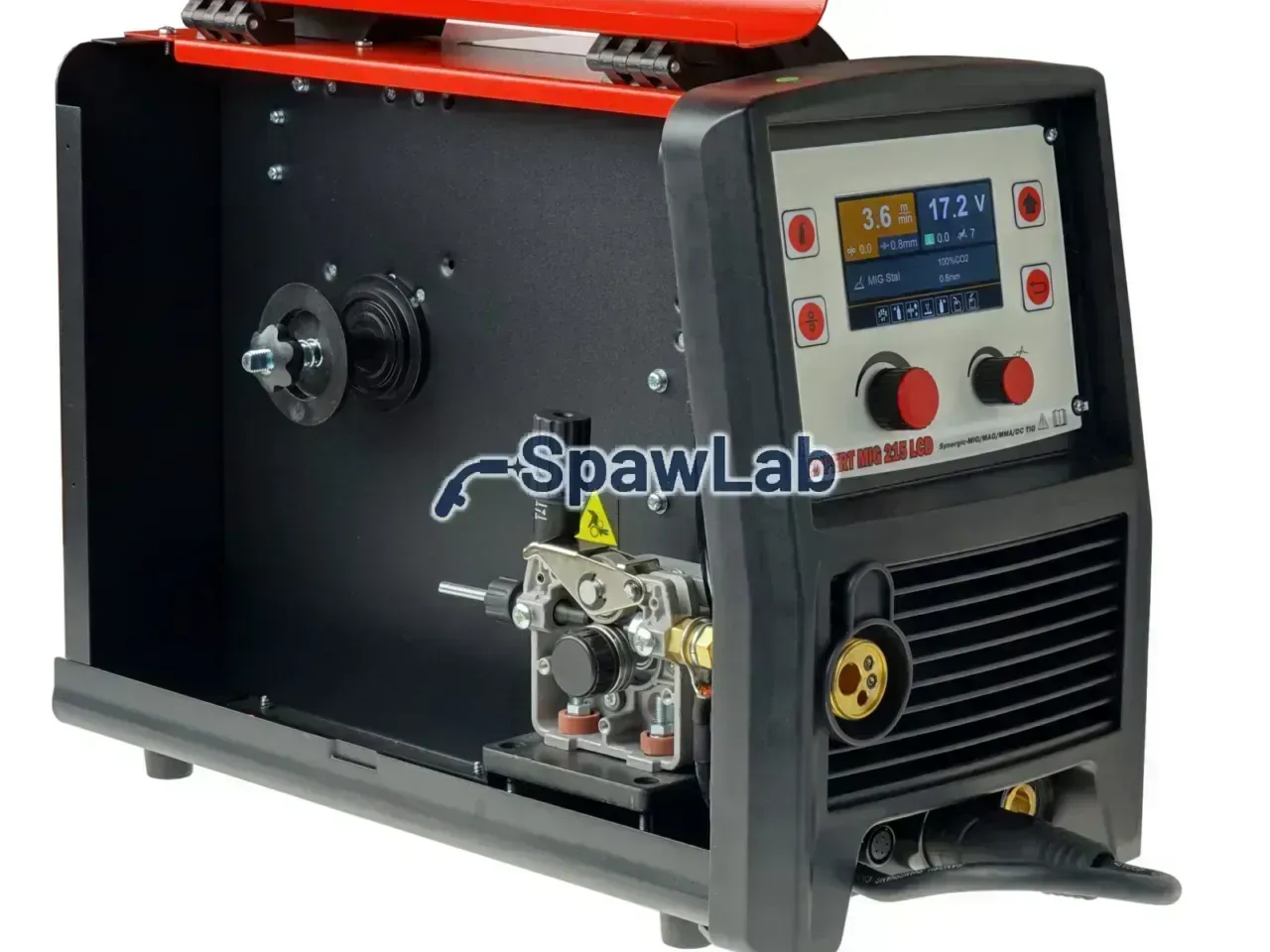

- Wire feeder: 2-roll
- Steel wire: 0.6 to 1.0 mm
- Stainless steel wire: 0.8 to 1.0 mm
- Aluminium wire: 0.8 to 1.0 mm
- Brazing wire: 0.8 to 1.0 mm
- Self-shielded wire: 0.8 to 1.2 mm
- MMA electrode: 1.6 to 4.0 mm
- Protection rating: IP21
- Weight: 19 kg
- Dimensions (L x W x H): 500 x 240 x 410 mm
Features
Synergic mode
You set the material thickness and start welding. The arc control system matches the parameters step by step to the welding position and the material. You can change the arc length manually and adjust the look of the weld to your needs.
Four processes in one machine
With one power source you weld MIG/MAG under shielding gas, with self-shielded wire (FLUX), TIG LIFT and with coated electrodes. In MIG/MAG the torch trigger works in 2T (no latch) or 4T (latch for long welds).
Cooling and protection
A fan cools the machine. It also has overload protection.

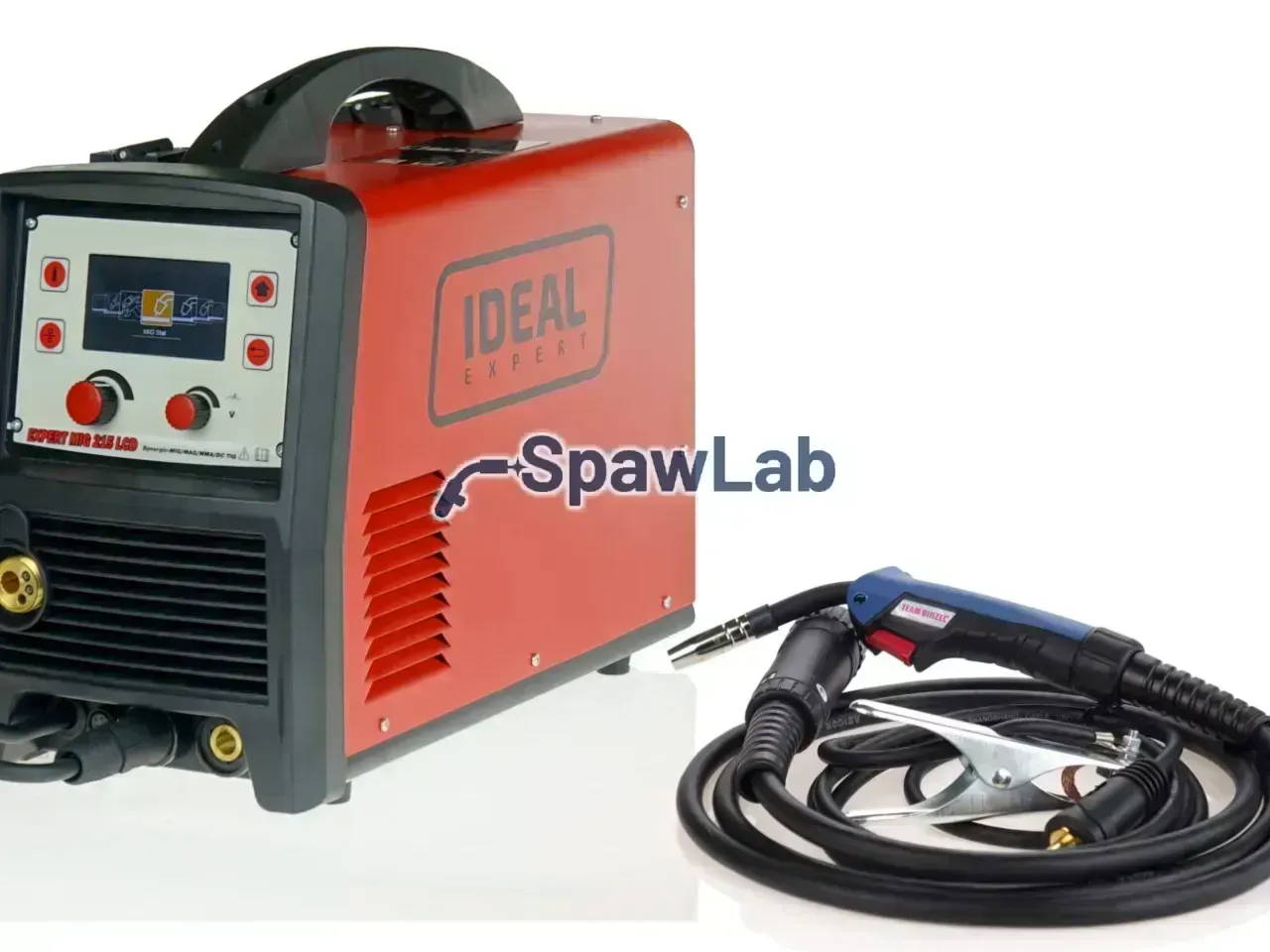

In the box
- EURO BINZEL MB15 welding torch, 3 m
- Earth cable
12-month warranty for professional use, door-to-door service with no transport costs on your side.
