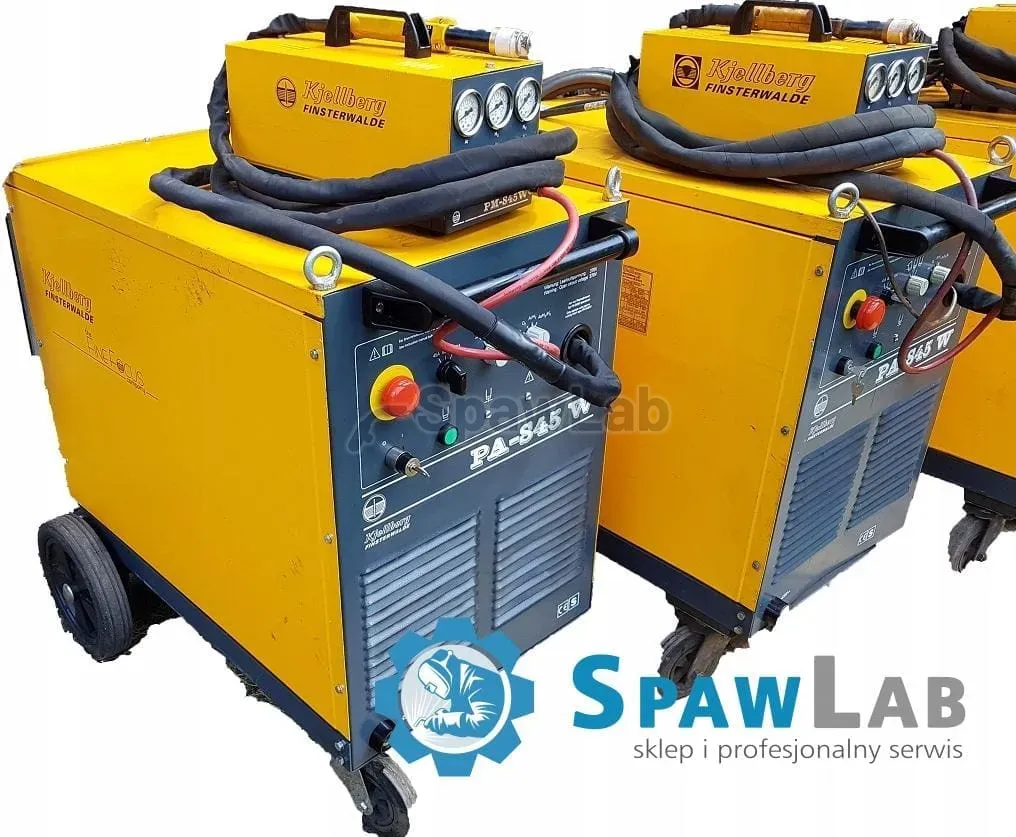

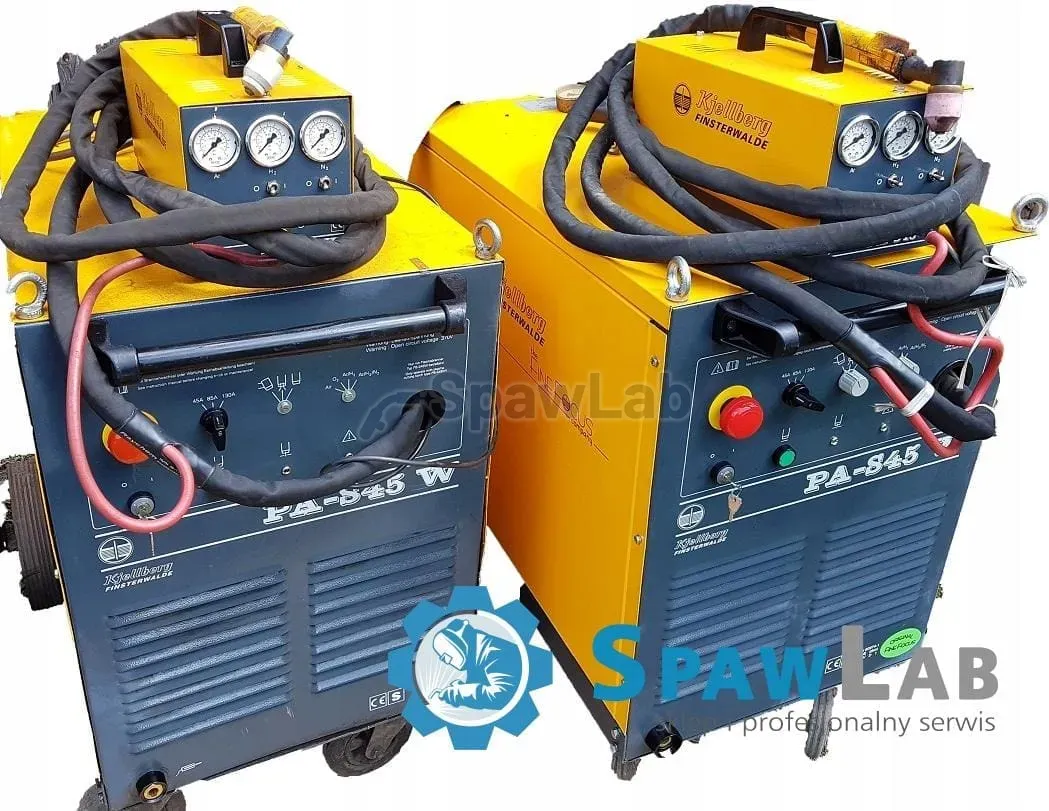

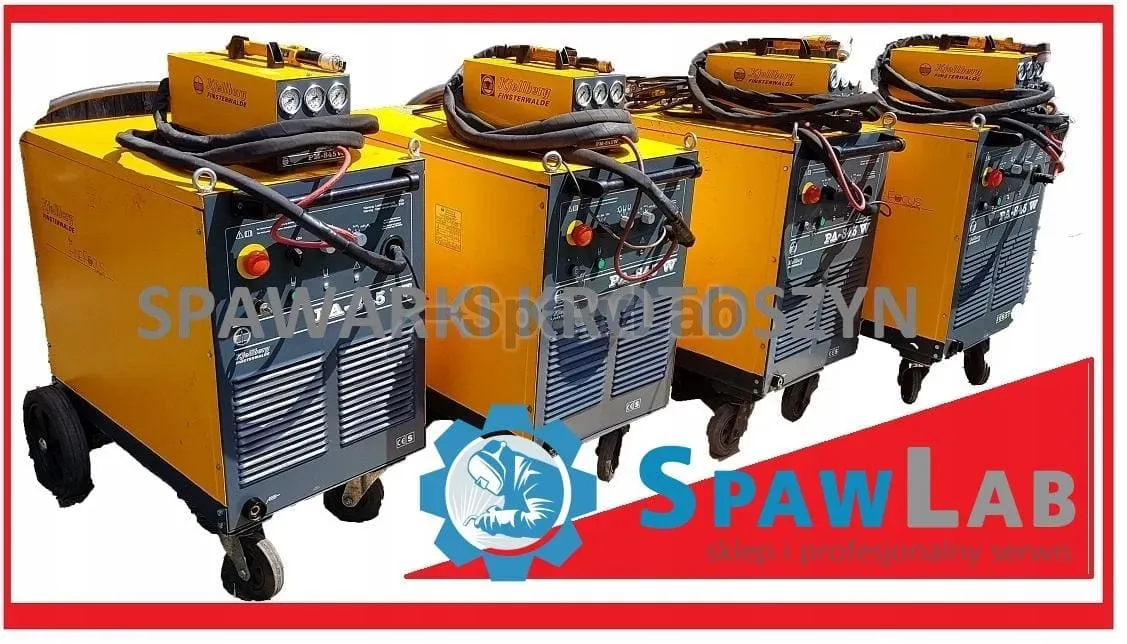

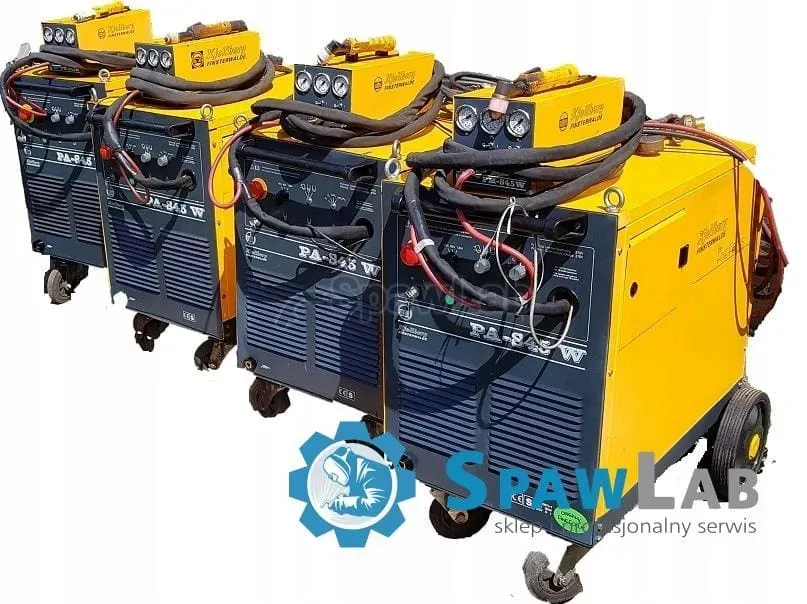

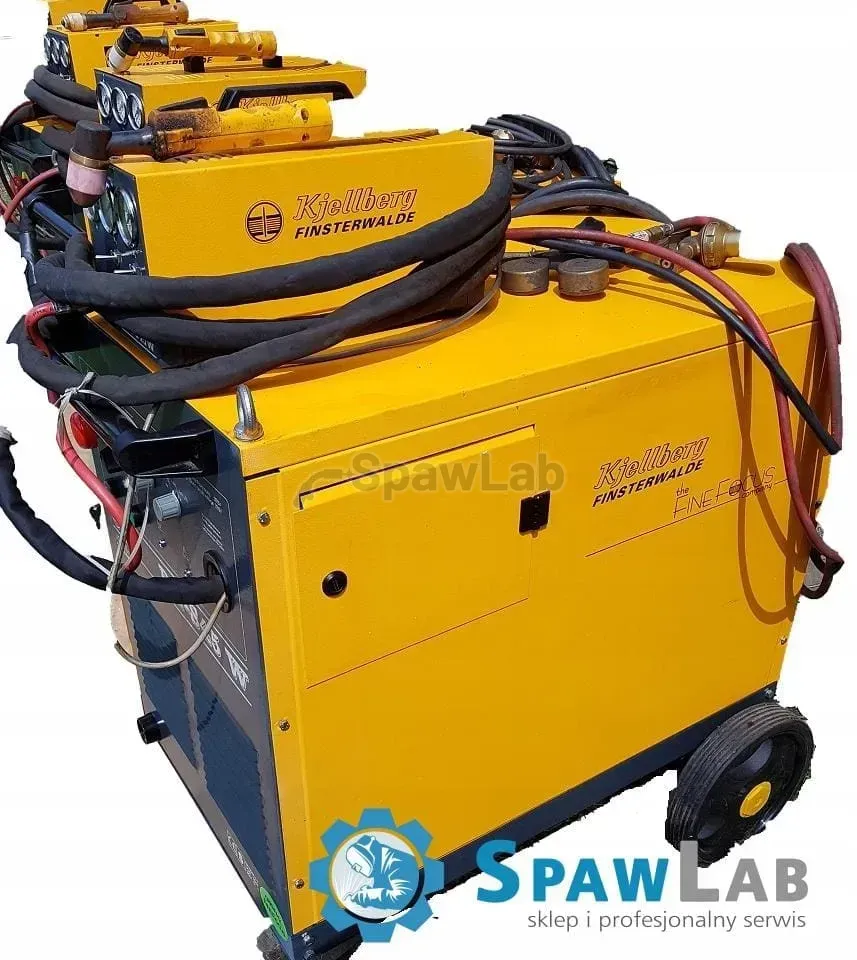

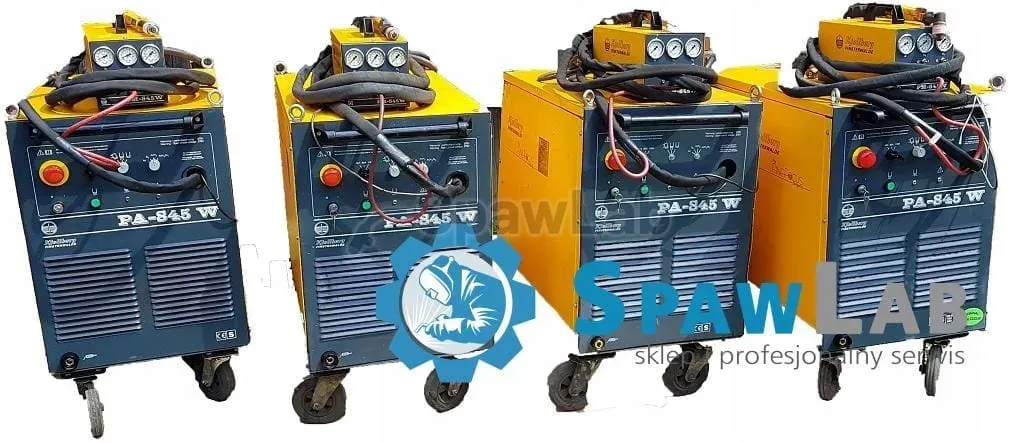

The Kjellberg PA-S45 is a plasma cutter of transformer build, liquid cooled. The product card gives a cutting current up to 60 A, while the source description speaks of 130 A at a 60% duty cycle and 85 A in continuous 100% work. The machine has three cutting modes and three current ranges.
What this machine is for

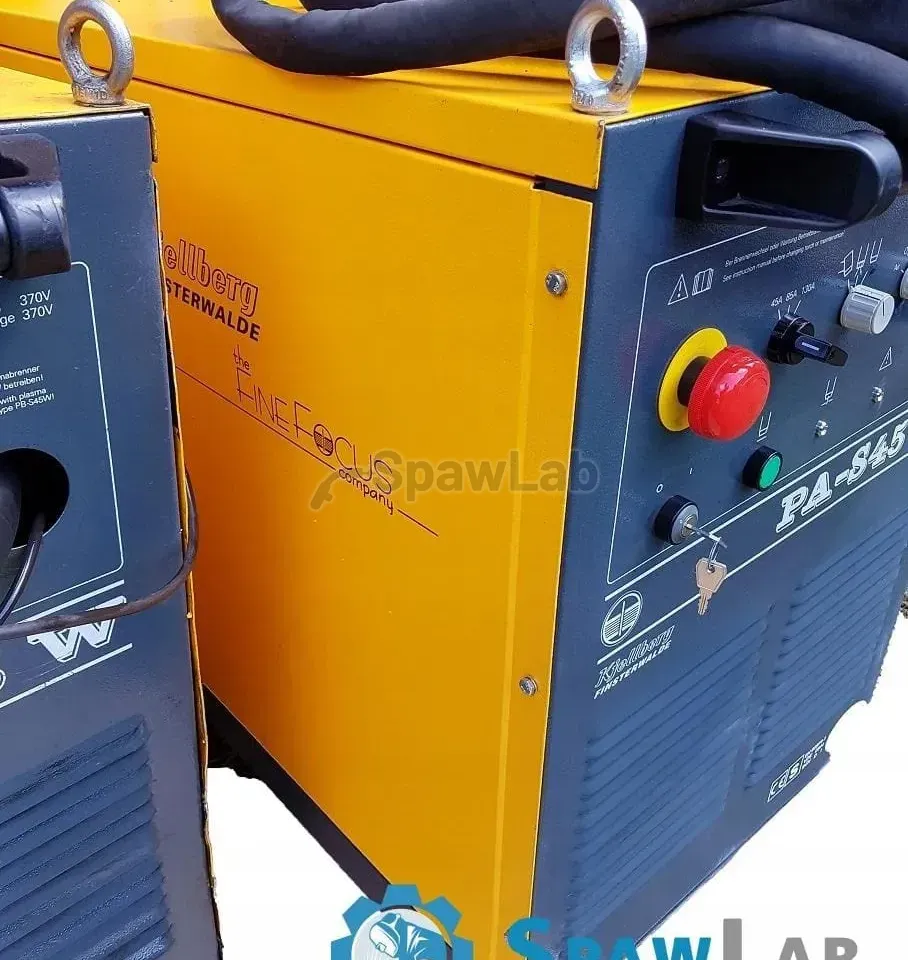

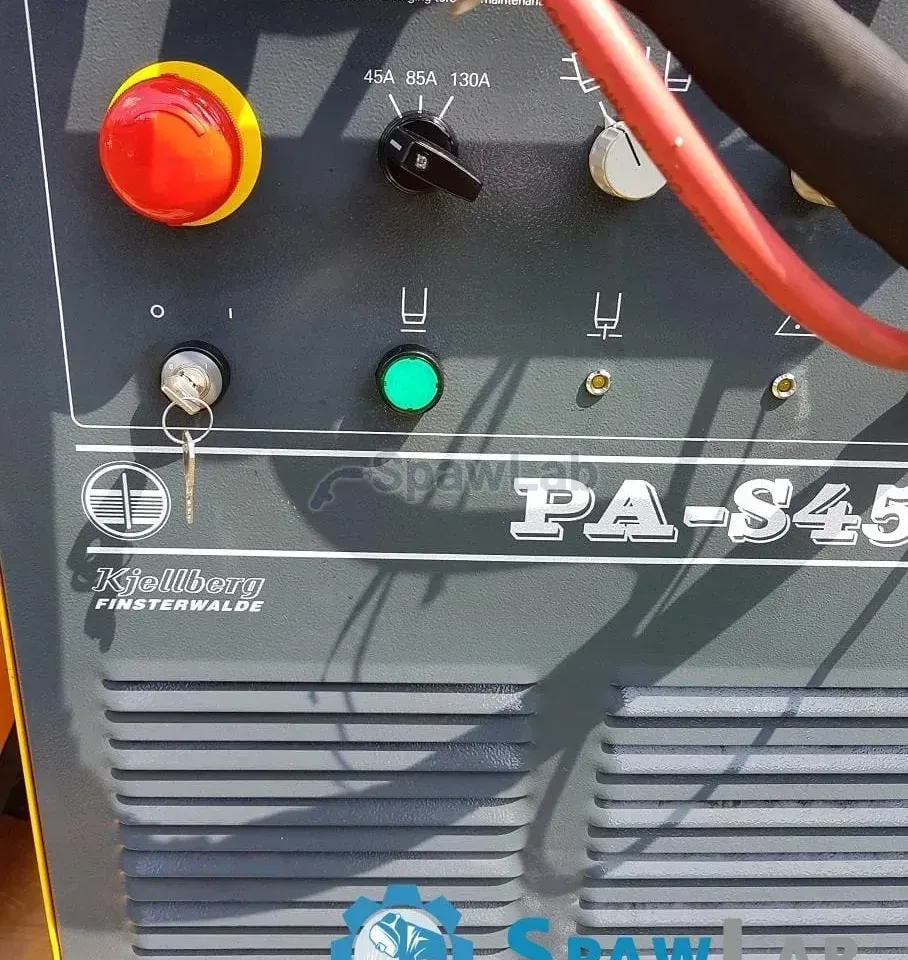

Three current ranges, that is 45 A, 85 A and 130 A, give one machine for thin sheet and for thick material. Three plasma cutting modes let you match the characteristic to the material and to the requirements for the edge.
Liquid cooling is a solution for continuous work: the fluid circuit takes the heat from the torch, so the nozzle and the electrode work longer than with air cooling. The transformer build stands up to dust and to voltage swings in the mains.
Features and equipment
- Three cutting ranges: 45 A, 85 A and 130 A.

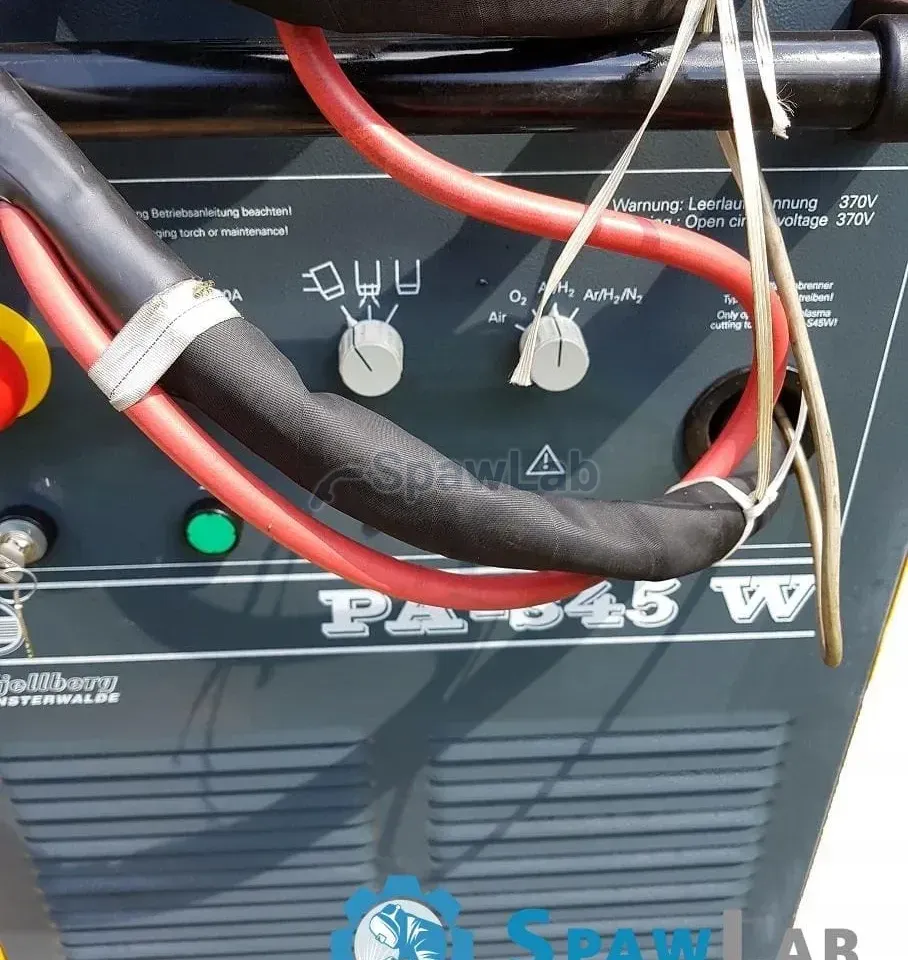

- Three plasma cutting modes: you match the characteristic to the material.

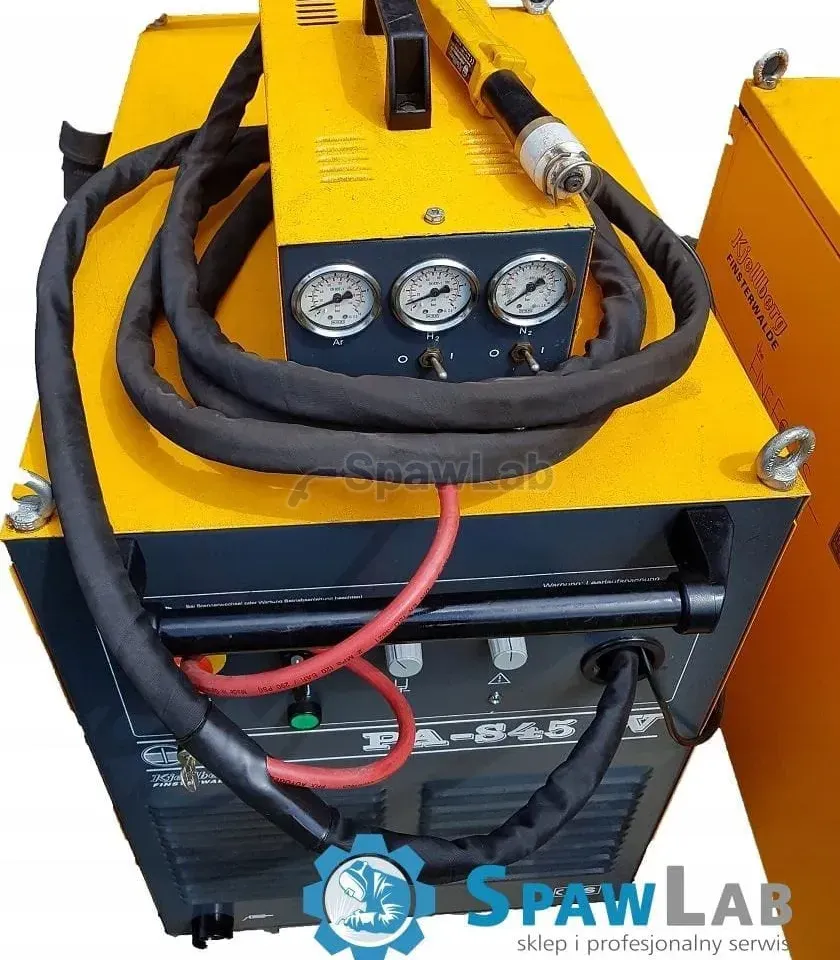

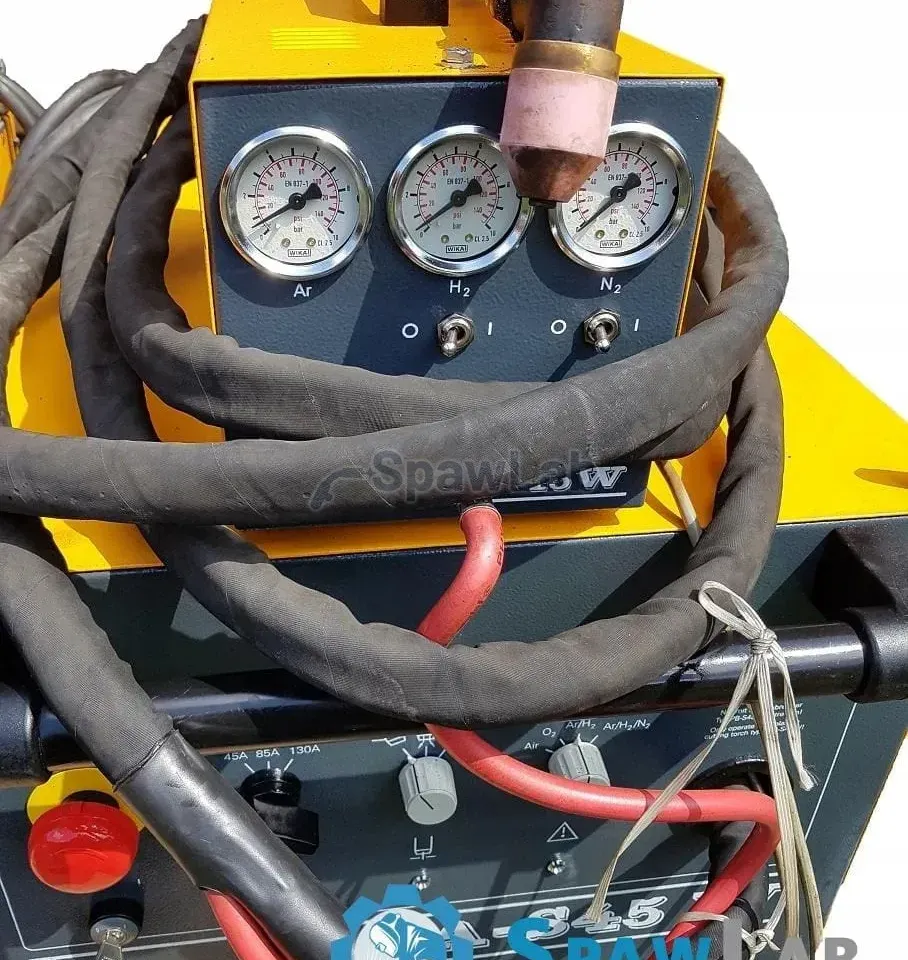

- Gas mixers: you set the composition of the plasma gas and of the shielding gas for the material you cut.
Technical data
| Brand | Kjellberg |
|---|---|
| Model | PA-S45 |
| Type | plasma cutter, transformer build |
| Cutting current given on the card | up to 60 A |
| Duty cycle from the source description | 130 A at 60%, 85 A at 100% |
| Cutting ranges | 45 A, 85 A, 130 A |
| Cooling | liquid |
| Plasma torch | about 5 m |
| Earth clamp | about 3 m |
| Supply cable | about 3 m |
What you get
- plasma torch about 5 m
- earth clamp about 3 m
- supply cable about 3 m
- gas mixers
What to watch out for
The data on the cutting current in the card and in the source description differ, so confirm the current range of this unit with us before you buy. The source description lists hand and machine torches, so settle the version of the equipment separately. The machines were taken off working stations when they were replaced with newer ones.
The card does not give the supply voltage, the weight or the dimensions, and a transformer power source with a cooler is heavy, so settle the type of socket, the fuse and the transport in advance. Check the fluid circuit before the start: the fluid level, the flow and the tightness of the quick couplings. Plasma needs clean and dry air, so a filter and a dryer are a must.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
