Description

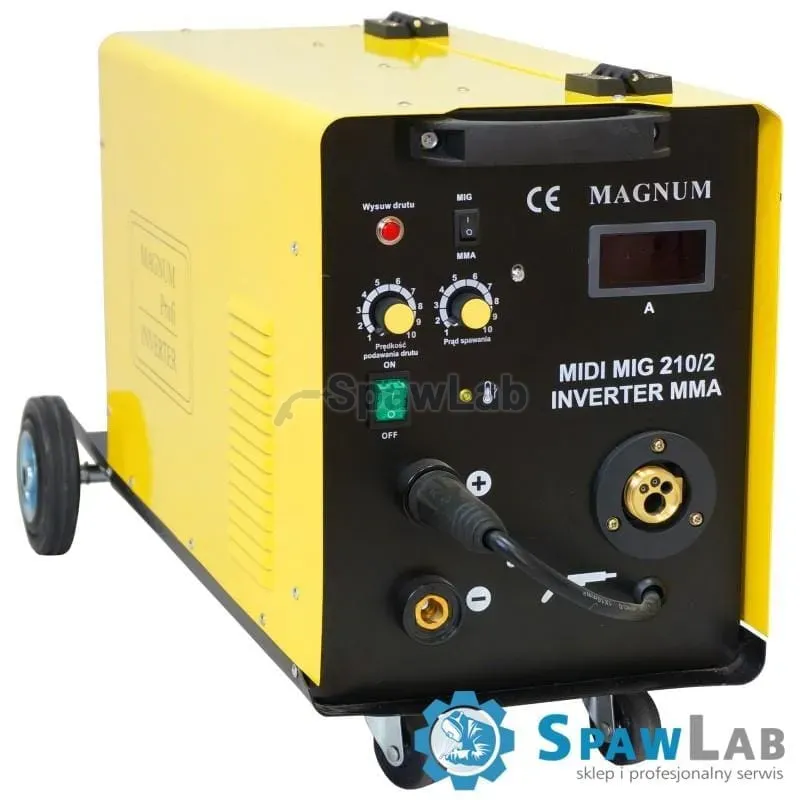

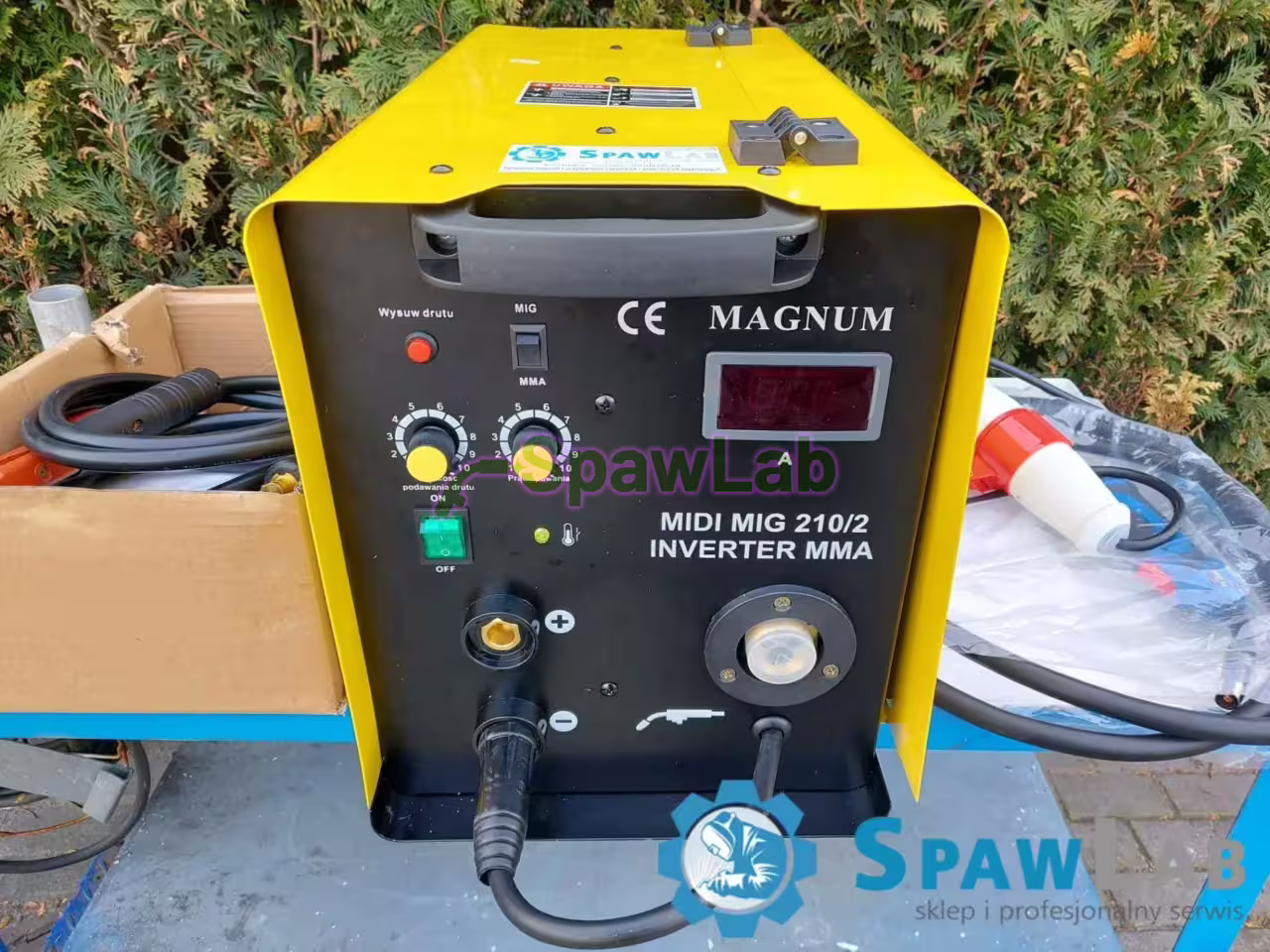

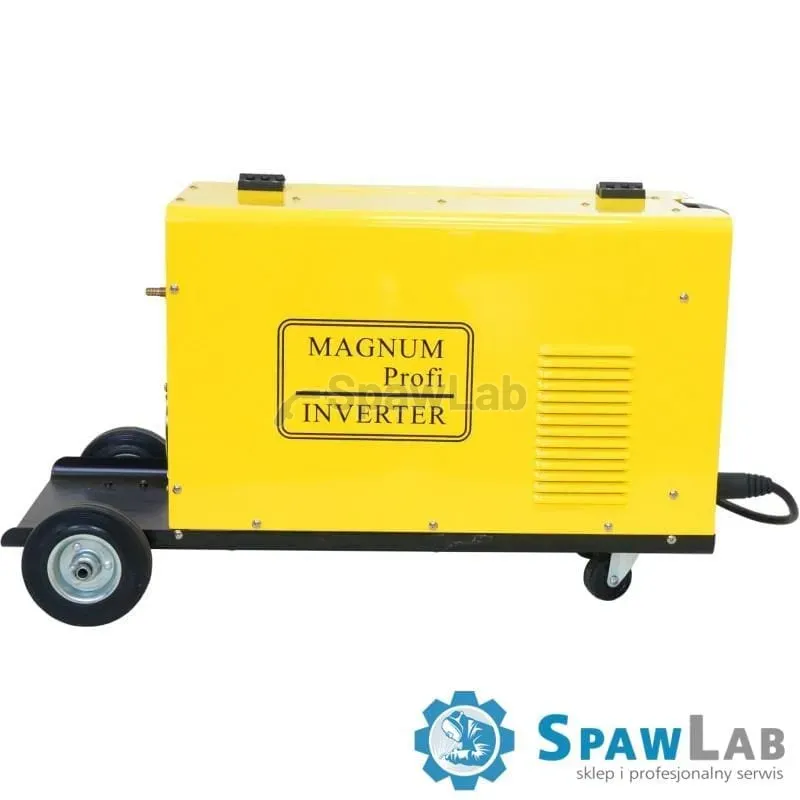

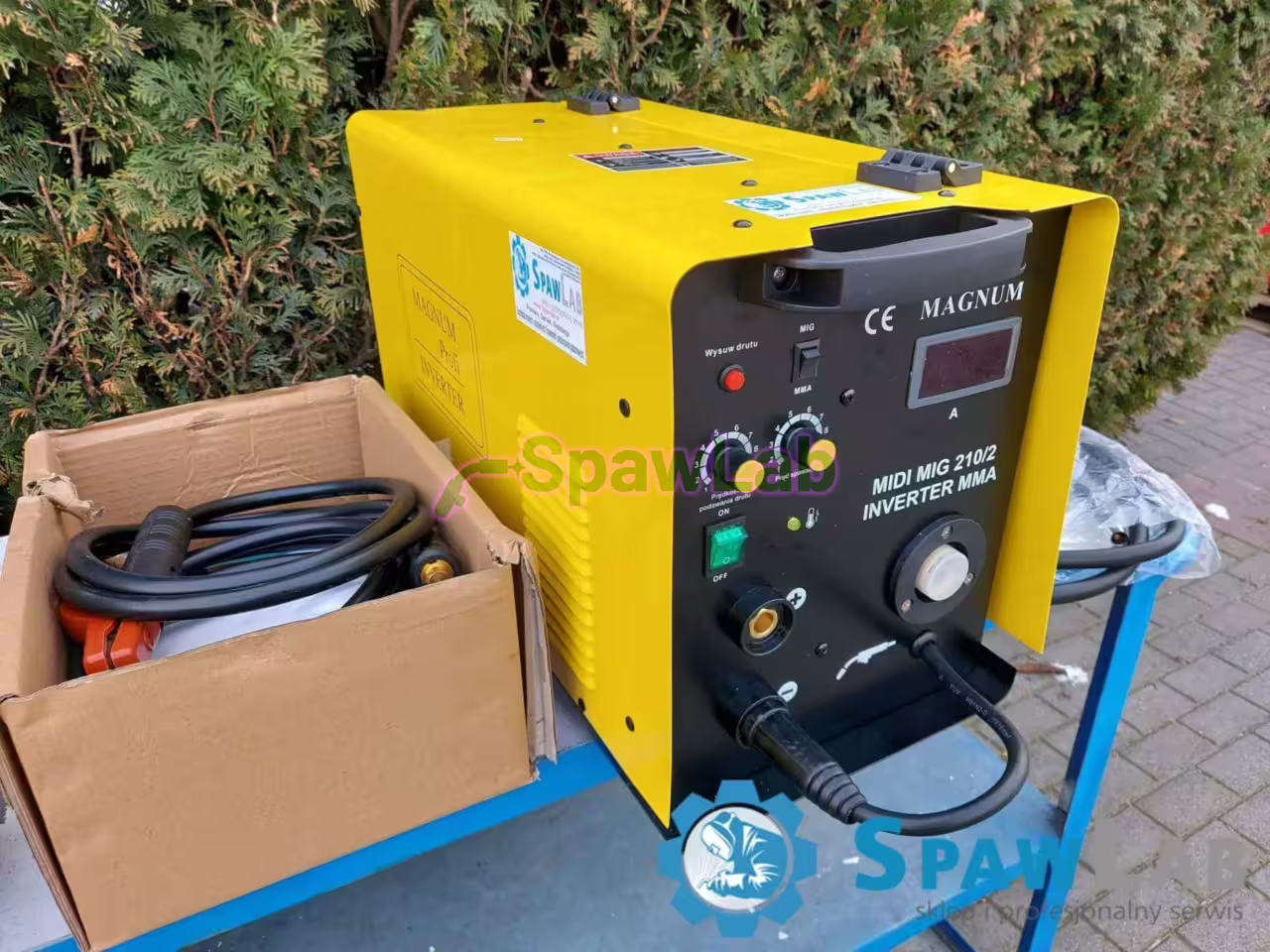

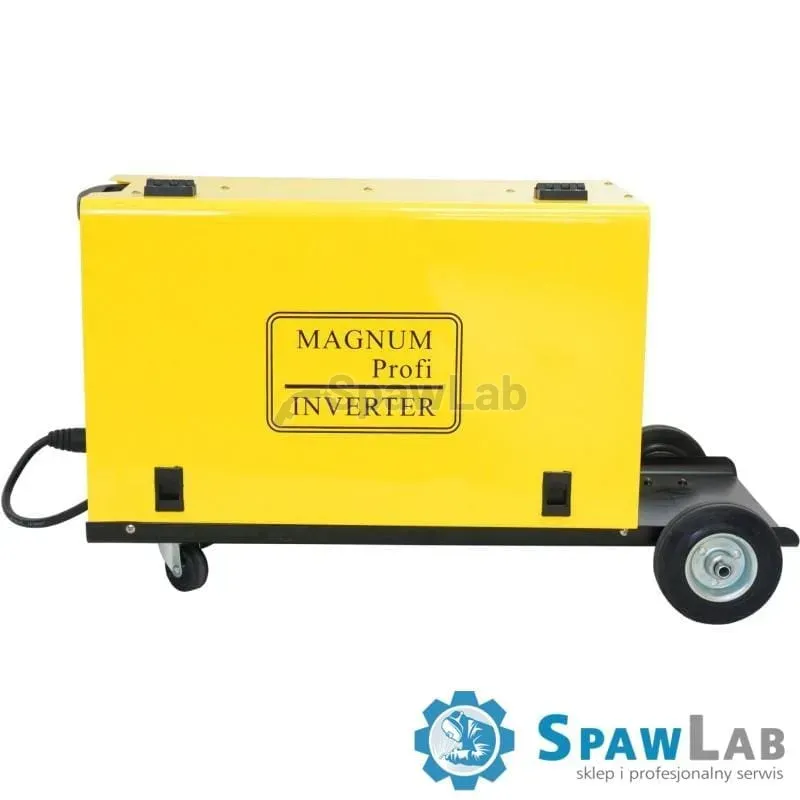

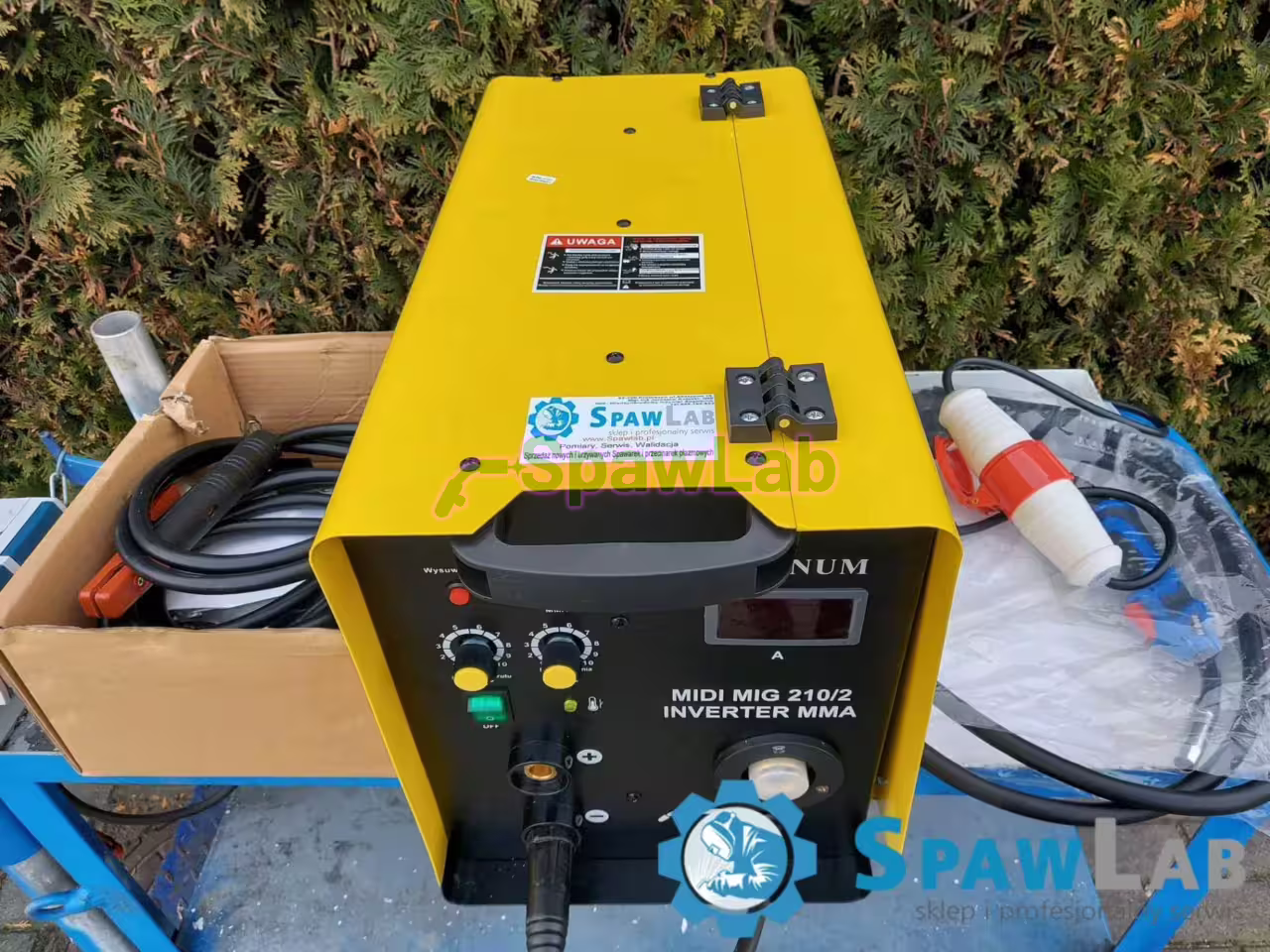

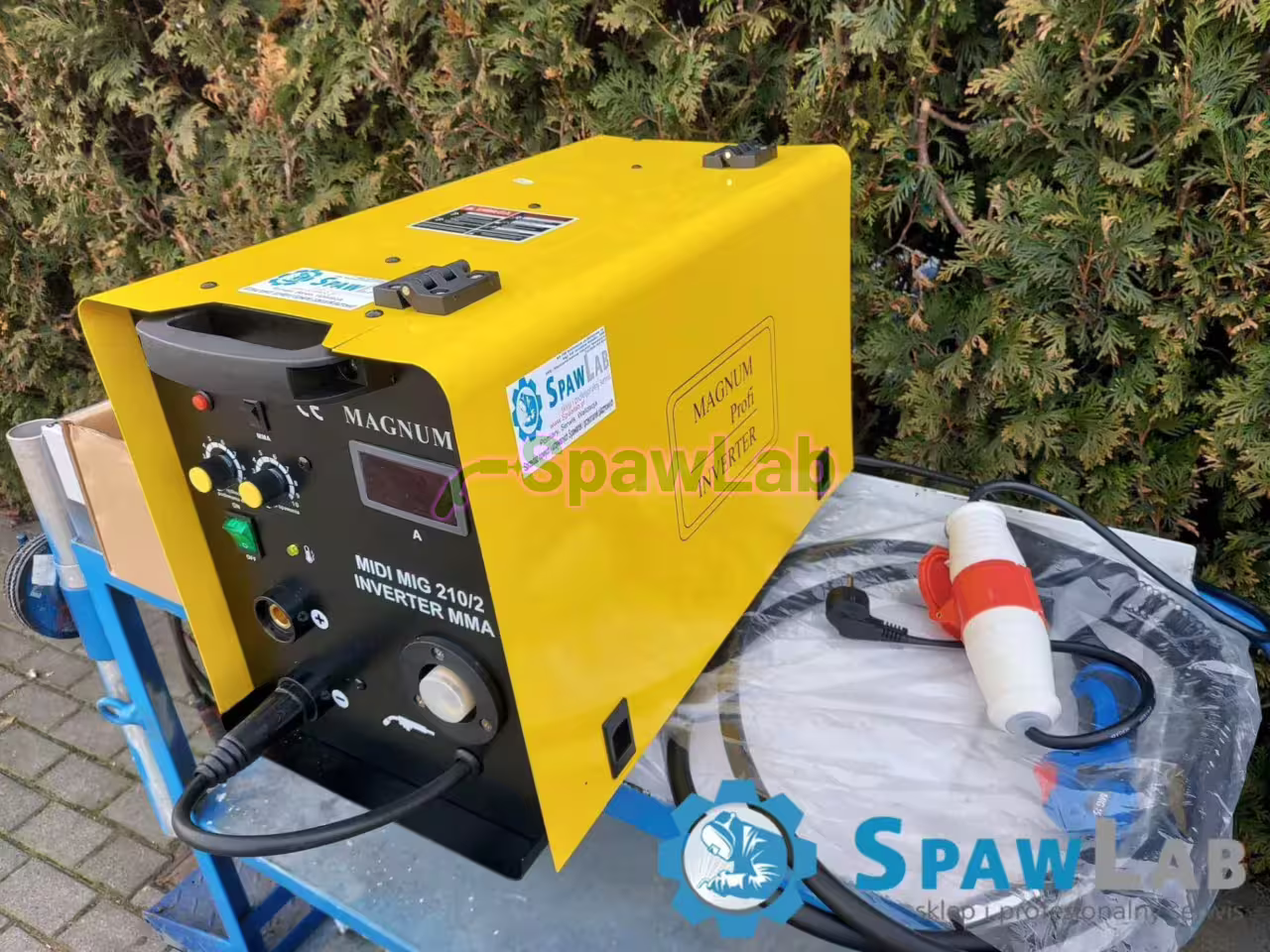

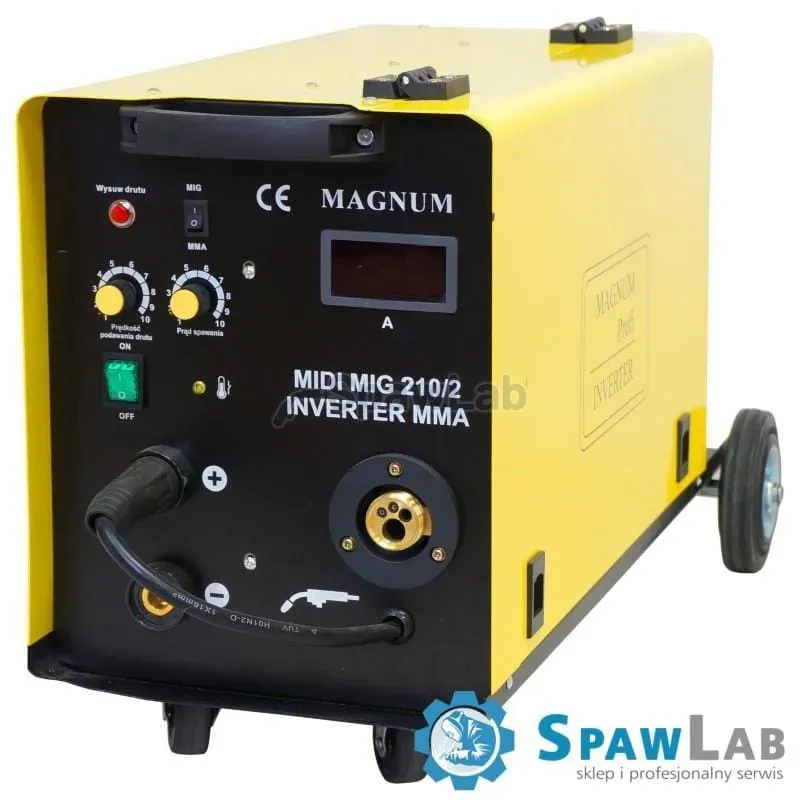

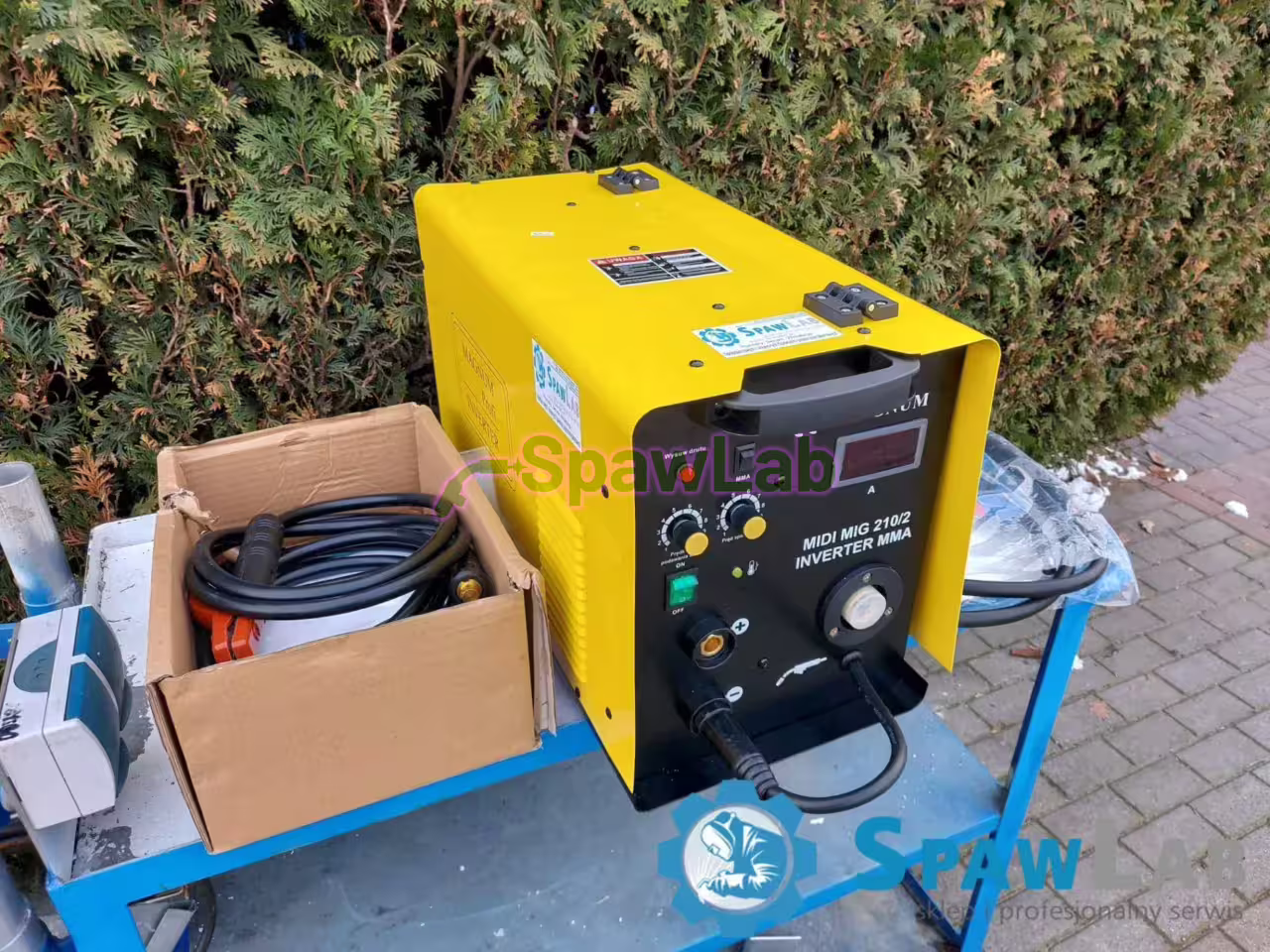

The MIDI MIG 210/2 series device from MAGNUM is a semi-automatic welding machine designed for manual electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG) and aluminum and its alloys.

It has the ability to weld with self-consuming wire – FCAW (you need to change the polarity on the welder: minus (-) on the welding gun, plus (+) on the ground!), and MMA method using fusible coated electrodes.

It is designed for all kinds of welding work in locksmith workshops, repair shops, industrial workshops, factories, etc.

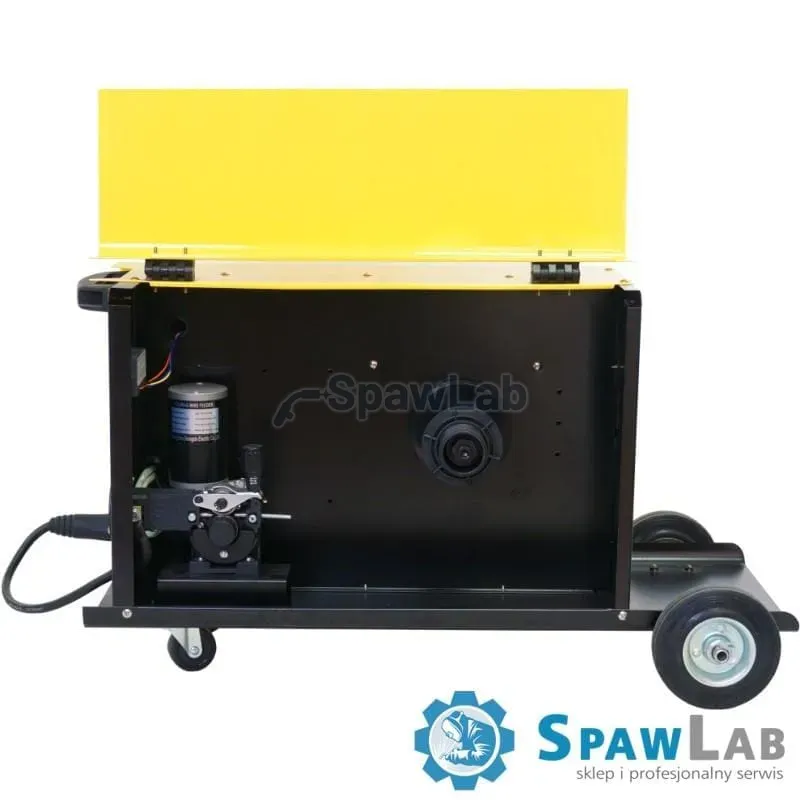

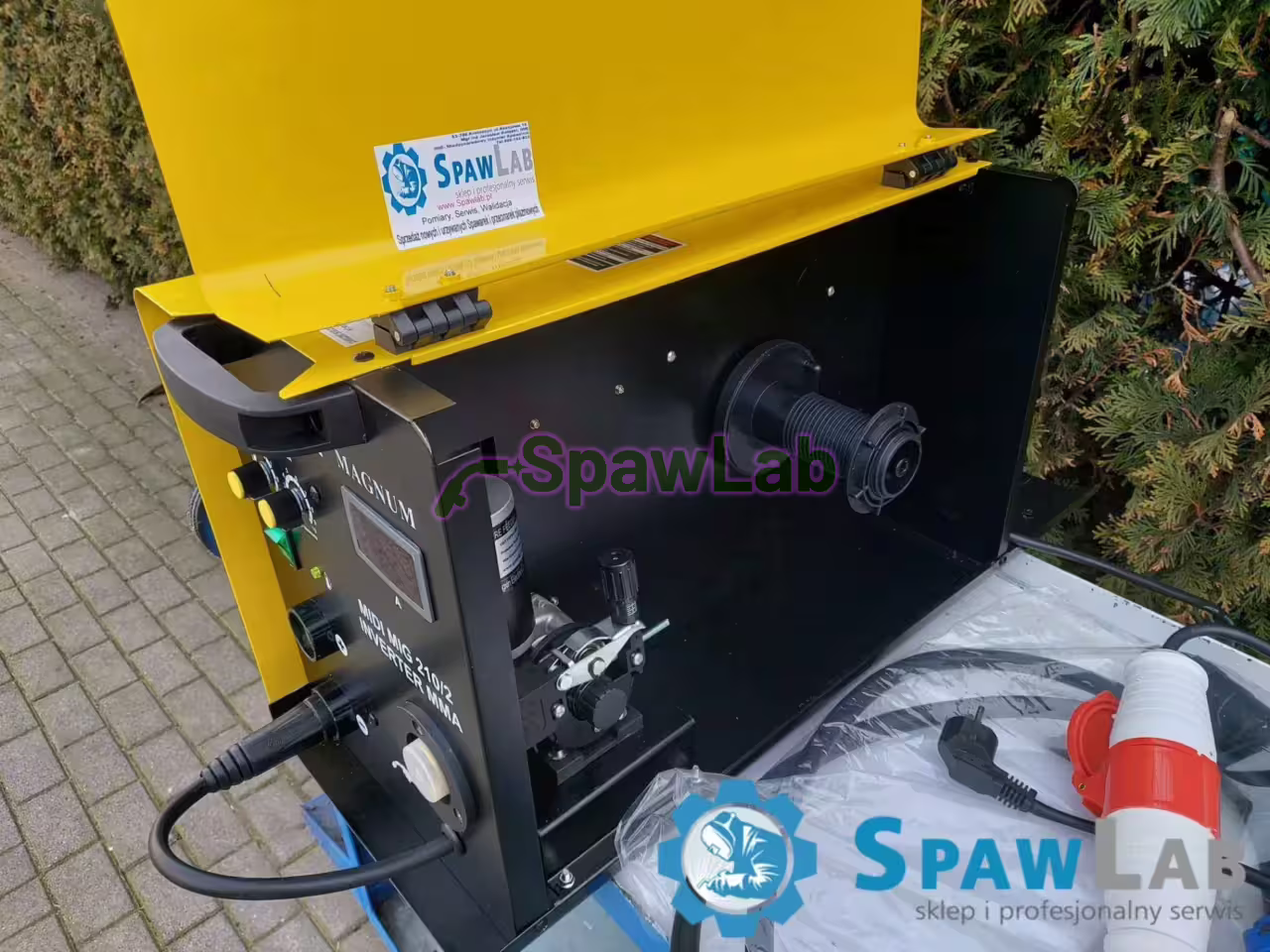

The welder has a stepless adjustment of welding parameters, a thermal protection system to prevent overheating. It is equipped with a two-roll wire feeder and the function of automatic detection of 230V/400V supply voltage.

The current source is built on IGBT transistors to ensure a minimum of electromagnetic interference, enabling increased efficiency and reliability of the current source, lower power consumption, and instantaneous current adaptation to changes in parameters during welding.

MIG/MAG WELDING PARAMETERS:
– MIG/MAG welding current: 30 – 200 [A]
– MIG/MAG welding voltage: 16.5 – 23 [V].

MMA WELDING PARAMETERS:
– Max. MMA welding current: 180 [A]
– Idle voltage: 56 [V]

TECHNICAL DATA:
– Power supply: AC 230 / 400 [V], 50/60 [Hz],
– Power consumption max: 6 [kW]
– Protection required: 20C [A] / 16 [A]
– Efficiency: 60 [%]
– Wire spool weight: max: 15 [kg]
– Wire diameter: 0.8/1.0 [mm]
– Enclosure protection class: IP21S
– Weight: 19.5 [kg].

THE KIT INCLUDES:
– MIG 210/2 device
– MIG/MAG holder,
– Electrode holder,
– Ground holder,
– User’s manual.

Check out the product video on YouTube!

MIG/MAG welding current [A]200

Manufacturer MAGNUM

Efficiency [%]60

MMA function YES

Welding without gas YES
