Selco Genesis 2700 TLH is an inverter TIG power source on direct current with an MMA mode, liquid cooled. You set the current from 3 to 270 A, at a 35% duty cycle the machine gives 270 A, and at 100% it runs at 180 A. Supply is 3 x 400 V with a 16 A fuse.
What this machine is for
On direct current you join mild and stainless steel, and the range from 3 A covers thin walls. Aluminium is out, because there is no alternating current. On the record the brand is listed as Böhler Welding, which took over Selco.
The panel saves JOB programs, so you call up repeat settings without setting them from scratch. Pulse and fast pulse run from 0.5 Hz to 2500 Hz: slow pulsing steadies the pool, high pulsing narrows the arc. The power source is prepared to run off a generator.
Features and equipment
- TIG DC and MMA: you pick the mode by what you weld with.
- Pulse and fast pulse from 0.5 Hz to 2500 Hz.
- JOB program memory.
- Grenwave technology and a power factor close to 1.
- Cooling unit with coolant flow and pressure control and a temperature display.
- Work off a generator set.
Technical data
| Brand | Böhler Welding, formerly Selco |
|---|---|
| Model | Genesis 2700 TLH |
| Current type | DC |
| Current at a 35% duty cycle | 270 A |
| Current at a 100% duty cycle | 180 A |
| Welding range | from 3 to 270 A |
| Supply | 3 x 400 V |
| Mains fuse | 16 A |
| Pulse | from 0.5 Hz to 2500 Hz |
| Cooling | liquid, with flow and pressure control |
| Welding cable | 8 m, type 20, liquid cooled, with control from the torch |
| Earth cable | 3 m |
| Supply cable | 3 m |
| Processes | TIG DC, pulse, MMA |
What you get
- Selco Genesis 2700 TLH power source with a cooling unit

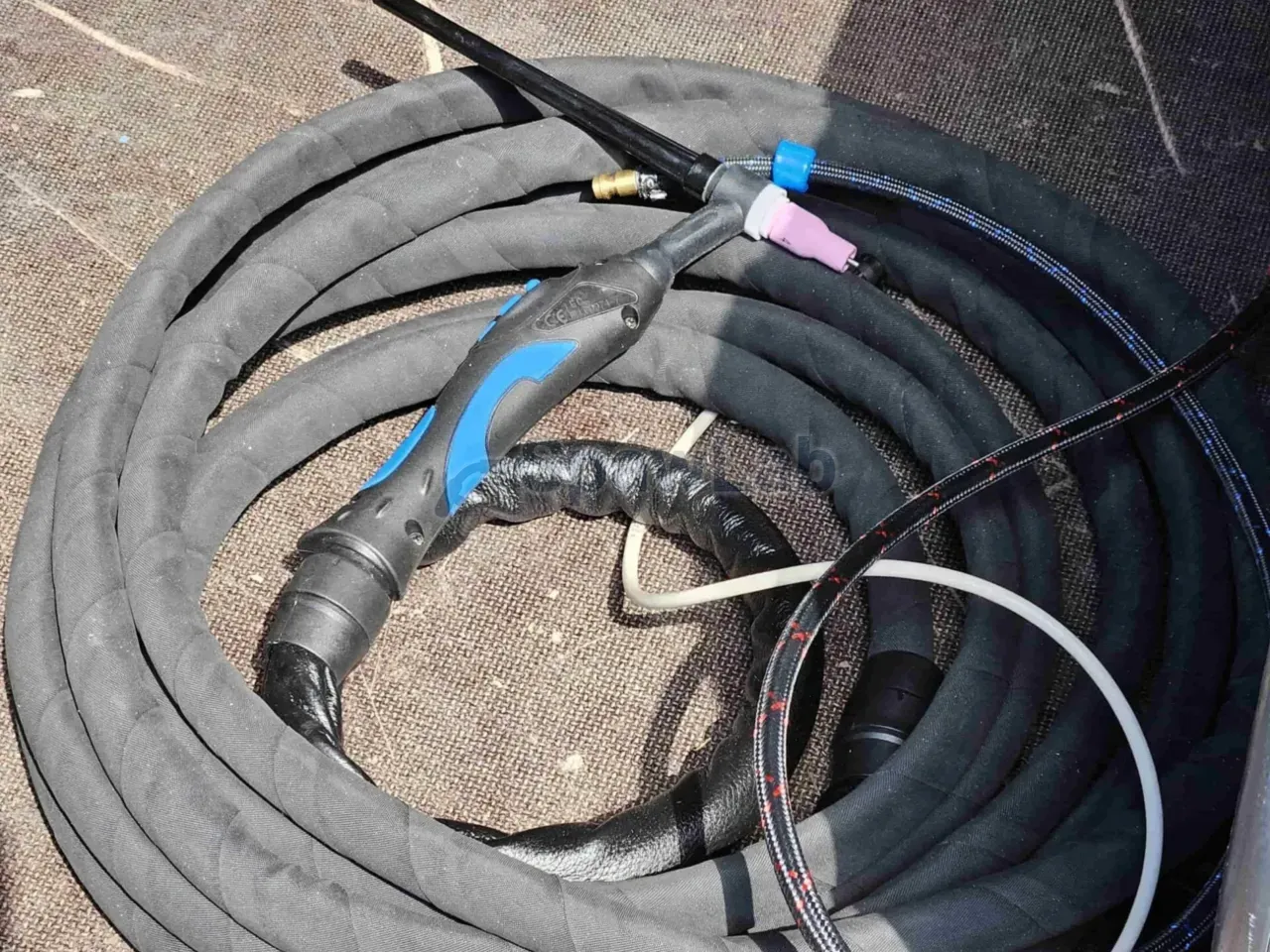

- welding cable 8 m, new, type 20 with a small liquid cooled head and control from the torch
- earth cable 3 m
- supply cable 3 m
What to watch out for
Three phase supply 400 V with a 16 A fuse. You check the coolant level before the shift anyway. The record assigns the machine to a current of up to 300 A, and the maker description gives 270 A at a 35% duty cycle, so set the parameters by the duty cycle. Before you buy, settle the set of electrodes and nozzles.
