EasyMIG 210LED A SMALL AND SIMPLE SYNERGIC INVERTER WELDER
SPARTUS® EasyMIG 210LED is a compact MIG/MAG welder built on IGBT transistors. It welds in the MIG/MAG and TIG Lift processes with currents up to 200A and in MMA up to 160A. It runs from a single phase 230V supply.
A PORTABLE INVERTER WELDER FOR EVERYONE
EasyMIG 210LED is a straightforward welding machine, and beginners will value that simplicity. Low weight and a compact housing make it a good portable MIG/MAG unit. Repair work away from the shop is exactly the job for this machine.

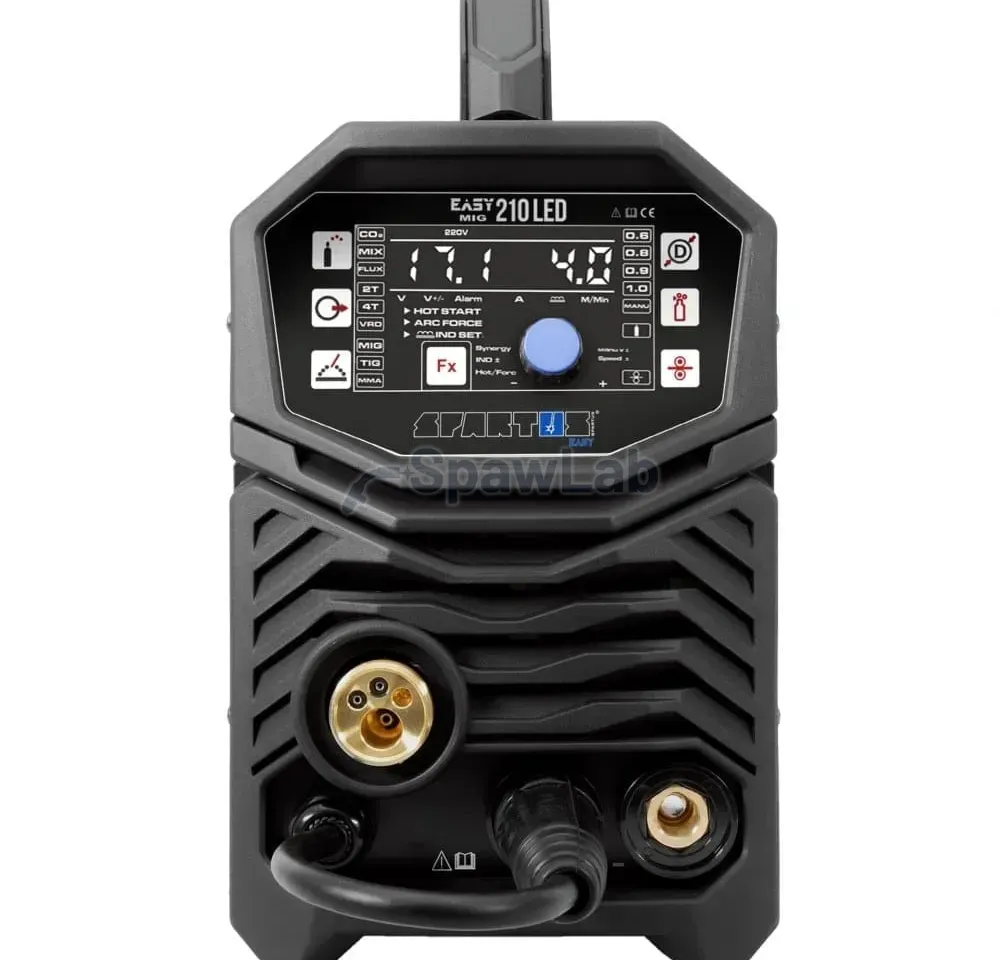

The simple LED display keeps the settings of the welder easy to manage.
3 WELDING PROCESSES IN ONE MACHINE
SYNERGIC MIG WELDING
EasyMIG 210LED has a simple synergic system for MIG/MAG welding with steel wires of 0.6 / 0.8 / 1.0 mm diameter, with manual correction of the parameters available.
The machine also carries functions that support the MIG/MAG process:
- Inductance, control of bead width and penetration depth, limits the amount of spatter
- Welding in two modes: 2T/4T.
Manual mode
The machine also works in manual mode, where you set every welding parameter to your own requirements.
Polarity change
The external polarity change on the EasyMIG 210LED allows welding with self shielded wires without gas.

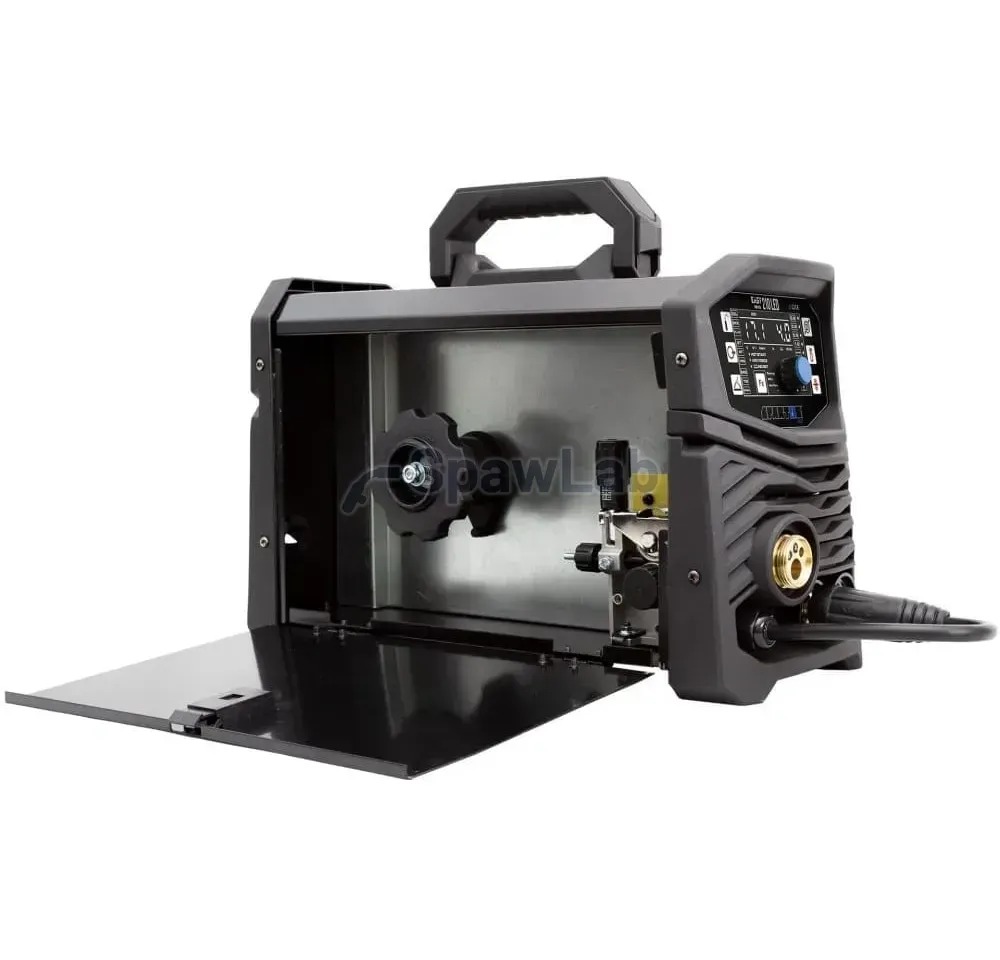

Wire feeder
The built in two roll feeder gives steady delivery of the welding wire. A small spool keeps the load on the machine low, which is a clear advantage during transport.
TIG Lift WELDING
EasyMIG 210LED welds in the TIG Lift process at 200A, at a high 60% duty cycle. The machine works with a TIG torch with a gas valve (recommended SPE17V-4-H100-X-SK35)
MMA WELDING
The machine also handles basic welding in the MMA process. The built in functions that support it are:
-
Hot Start, a hot start - easier striking of the electrode
-
Arc Force , control of arc dynamics, easier welding in constrained positions
-
VRD , lowered open circuit voltage, safer work.
APPLICATIONS
SPARTUS® EasyMIG 210LED is built along current practice in welding equipment production. Compact size and simple operation make this welder a good tool for small repairs and renovation jobs. It also finds use in hobby and workshop work.

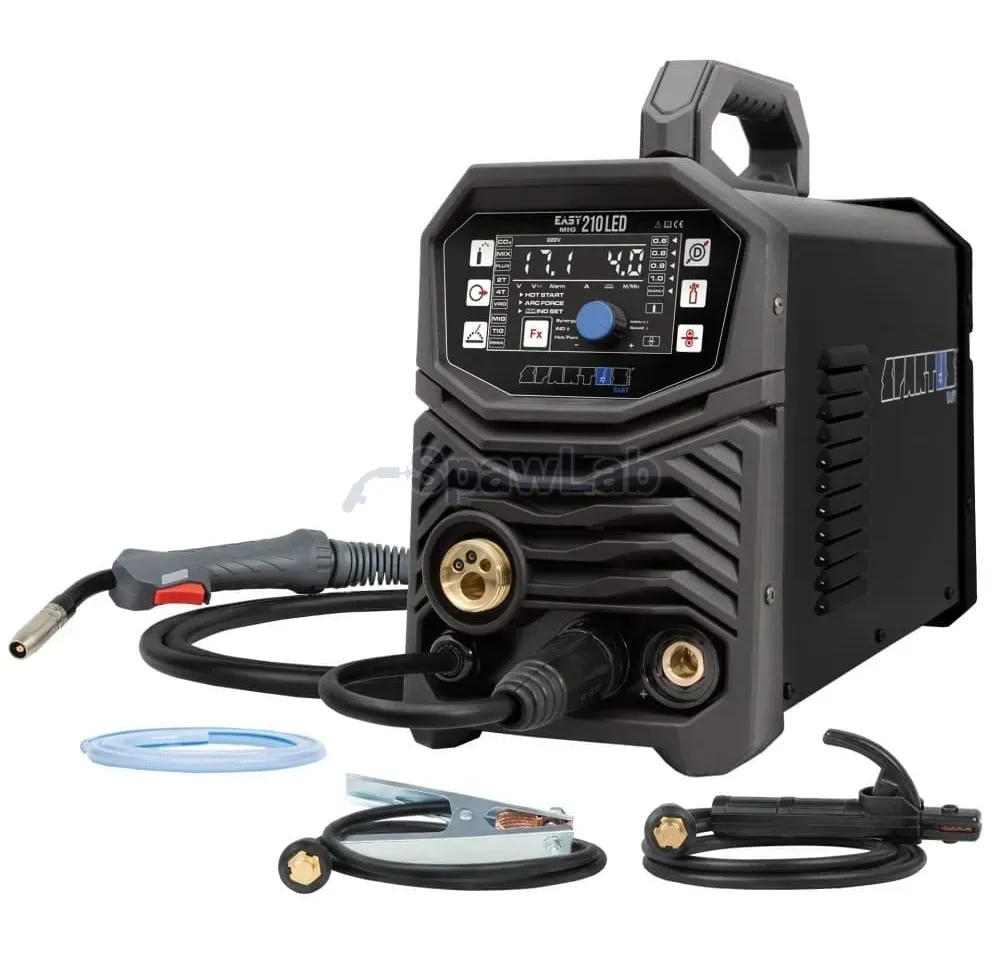

EQUIPMENT
SPARTUS® EasyMIG 210LED comes in a dedicated package. Besides the power source the package holds a set of MMA cables, a gas hose and an EasyMIG 150 welding torch. Put together this way, the EasyMIG 210LED is fully ready for work.
