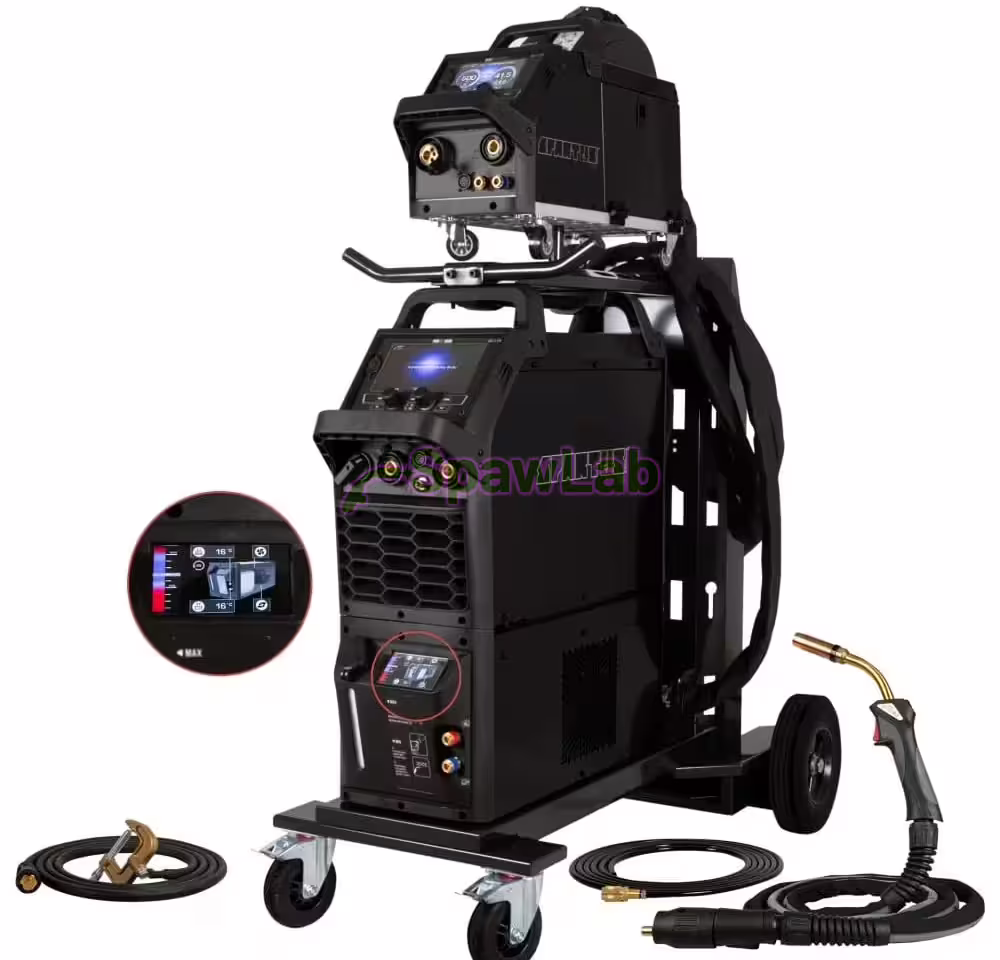

Spartus ProMIG 5000 [power source, cooling unit, wire feeder, interconnection cable, trolley] SPP501 package - 4m

SPARTUS ProMIG 5000, UNCOMPROMISING PERFORMANCE IN INDUSTRIAL WELDING

SPARTUS ProMIG 5000 is a technically advanced inverter welding power source built for the most demanding industrial applications. The machine was designed for continuous duty in production environments where reliability, repeatability and full control over the welding process are decisive. With a 100% duty cycle at the maximum current of 500A, the ProMIG 5000 gives you a stable arc and high weld quality even under long loads.

MIG WELDING, INTELLIGENT SYNERGY AND FULL PROCESS CONTROL

SPARTUS ProMIG 5000 gives you broad options for MIG/MAG welding, combining manual mode with an advanced synergic mode based on ready made synergic programs. In MIG Synergy mode the machine actively supports the operator by suggesting the best working parameters, such as material thickness and wire feed speed, which speeds up the setup and makes work easier when production tasks change. At the same time you keep full control over the process thanks to manual parameter correction, which lets you match the arc characteristics precisely to your own preferences and to the material.

SPARTUS ProMIG 5000 offers extensive configuration of the MIG/MAG process that goes beyond the standard settings of classic MIG/MAG welders. You have access to precise adjustment of parameters such as gas flow time before and after welding (pre-flow, post-flow), burn back, and soft wire feed start (slow feed), which lets you prepare the process properly and limit weld defects.

The machine also lets you control the arc dynamics through adjustment of the start and end current and the setting of the current up slope and down slope times. Such a broad adjustment range lets you match the welding characteristics to specific technological applications, raising weld quality, process stability and repeatability in series production.

The machine works in various torch control modes, including 2T, 4T and 4T+, which means better ergonomics and comfort on long welds and on tasks where operator fatigue has to be limited. In addition, the spot welding function (SPOT) lets you make fast and repeatable tack points, which is useful in assembly work and in the production of thin walled parts.

SPARTUS ProMIG 5000 was designed to work with a broad range of welding materials. The machine handles welding of structural steel, stainless steel, aluminium and CuSi3, which makes it a universal solution for production plants and industrial workshops. Thanks to the extensive synergic settings you can select the right wire type and shielding gas, including argon and CO2 mixtures, which lets you optimise the welding parameters for the material and the technological requirements. This raises work efficiency and gives high weld quality across different applications.

The precise, four roll wire feeder gives stable and even feeding of the filler metal even under heavy loads and with long interconnection cables. The broad range of supported wire diameters and the option of running large spools mean the machine performs well both in series production and on heavy steel structures. Another advantage is the option to connect a Spool Gun type torch, which widens the range of applications considerably, especially when welding aluminium and working where maximum wire feed stability is needed.

MIG 501 TORCH WITH ADVANCED CONTROL IN THE HANDLE

SPARTUS ProMIG 5000 is available in the TOWER version, as a package with a standard SP 501 4m torch and with a specialist torch with an integrated control system in the handle, which is a real advantage of this set over the standard solutions on the market. Unlike classic MIG torches, this solution lets you adjust the welding voltage and current directly from the handle, without reaching for the main panel of the machine. This raises working ergonomics considerably and lets the operator adjust parameters while welding, which matters especially on large structures, in places that are hard to reach and under changing technological conditions. Adjusting the settings as you go means more control over the arc, a stable process and higher quality welds.

The MIG 501 torch with control in the handle is an industrial class solution for users who expect maximum precision, output and comfort in continuous work.

MODERN CONTROL PANEL AND INTUITIVE OPERATION

SPARTUS ProMIG 5000 has a modern control panel with a clear touch screen that gives quick access to all the key functions of the machine. The intuitive interface and the ergonomic adjustment knobs let you set the parameters precisely and move through the menu smoothly, even in demanding production conditions. The integrated control system handles not only the welding parameter settings but also quick selection of the operating mode, material type, wire diameter and shielding gas.

TIG LIFT, PRECISION WHERE THE DETAIL COUNTS

The TIG DC Lift function lets you make precise welds with full parameter control. Adjustment of the current down slope time and of the gas flow after welding ends lets you match the working characteristics to the task. This is the right solution wherever a high standard of appearance and accuracy is required, without the need for HF arc ignition.

MMA, ARC STABILITY in typical workshop conditions

SPARTUS ProMIG 5000 also offers efficient MMA welding with a stable arc across a wide current range. The supporting functions, Arc Force, Hot Start and VRD, give you sure arc ignition and keep the arc stable even in difficult assembly or site conditions, where the reliability of the equipment is decisive.

MEMORY CHANNELS, QUICK ACCESS TO SETTINGS

SPARTUS ProMIG 5000 has an extensive settings memory system that makes work in a production environment much easier. The machine stores and quickly recalls up to 100 JOB programs, which lets the operator switch between different welding configurations instantly, without setting the parameters from scratch each time. This is especially useful when working with different materials and thicknesses and on repeatable tasks.

ADVANCED COOLING SYSTEM, MATCHED TO REAL WORKING CONDITIONS

SPARTUS ProMIG 5000 has an external cooling unit that considerably widens the scope of work at high loads. An important feature is the option to switch it on or off, which lets you match the configuration of the machine to current needs. At lower currents the operator can use lighter gas cooled torches without activating liquid cooling, while at high parameters the cooling system gives stability and protects the components.

The cooling unit also has a temperature monitoring screen, which lets you check the working conditions as you go and raises the safety of the whole welding process.

INDUSTRIAL CONSTRUCTION AND A MOBILE WORK STATION

The construction of the machine is based on a separate wire feeder, a modern cooling unit and a solid power source, which increases the flexibility of the welding station configuration. The whole set is integrated with a sturdy transport trolley with a place for a gas cylinder, which makes the work easier to organise and comfortable in production conditions. This lets you move the set freely and make the best use of the working space.

SAFETY AND RELIABILITY

SPARTUS ProMIG 5000 was designed for intensive use in an industrial environment. The machine has an overheating protection system that automatically protects the components in case of excessive load, keeping the work continuous and safe. The solid construction, the high insulation class and the IP23S protection rating allow work in demanding production conditions. Stable parameters, resistance to load and a refined construction make the ProMIG 5000 a reliable welding power source for long work without downtime.

SiC MOSFET TECHNOLOGY

Using SiC MOSFET technology in the SPARTUS ProMIG 5000 gives high energy efficiency, a fast system response and more precise control over the welding current waveform. The high switching frequency supports stable arc work, limits spatter and improves control over weld formation, especially in processes that need high parameter accuracy. This solution clearly strengthens the industrial character of the machine.

A RELIABLE POWER SOURCE FOR CONTINUOUS WORK

SPARTUS ProMIG 5000 is a machine built for continuous duty in high load environments. The high current range up to 500A, the 100% duty cycle, stable parameters and resistance to intensive use mean that this model performs well in production plants, on steel structures and wherever output and reliability count.

WARRANTY

The warranty period for SPARTUS® Pro series machines is up to 36 months.
