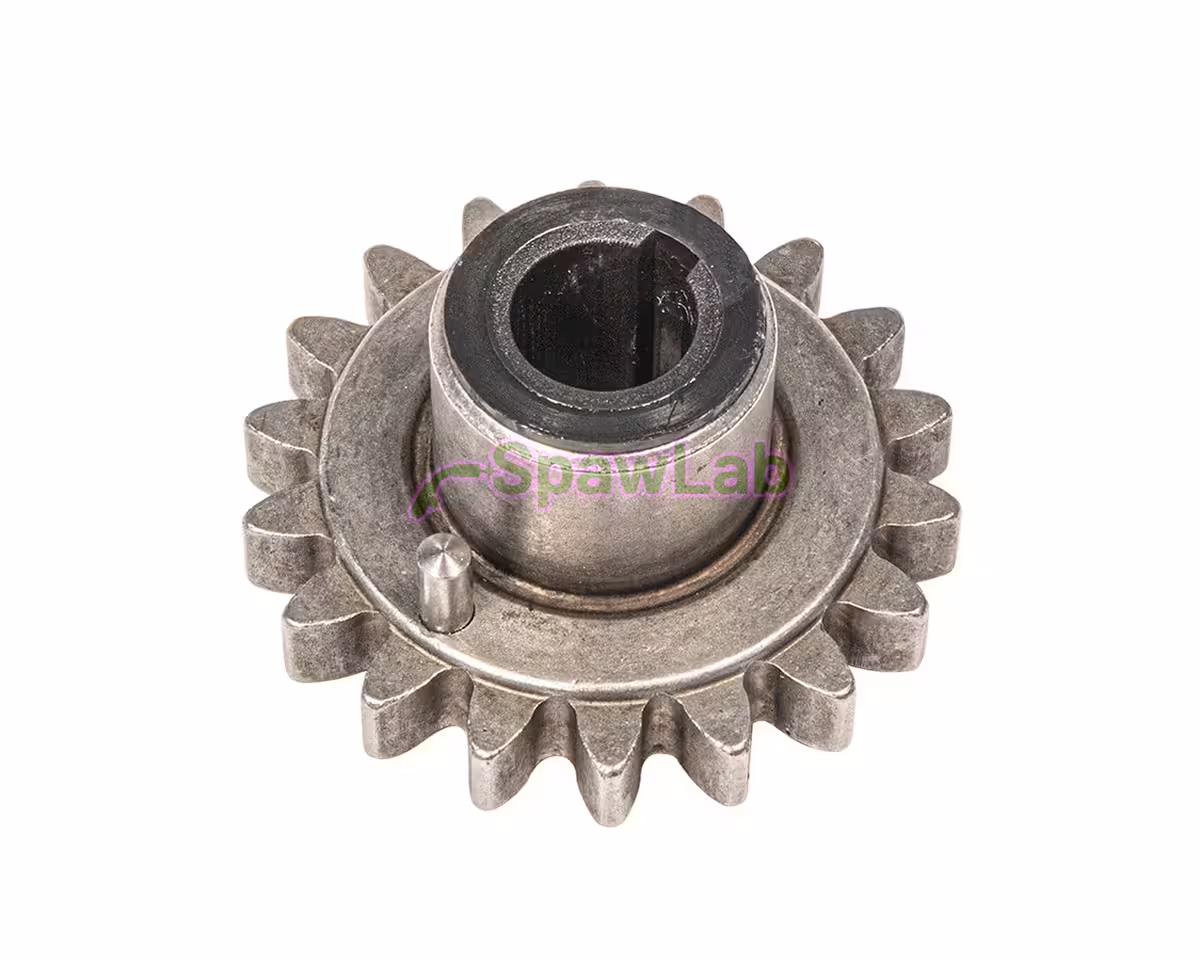

Driving gear wheel on the motor shaft (DRIVING GEAR WHEEL in the price list) for the SL 4R feed unit in WF NX feeders and TERRA NX and URANOS NX machines.
What it is for
It transfers drive from the motor to the roll gearing. Replace it when the teeth are worn or broken and the wire feeds unevenly despite new rolls and correct pressure.
| Part number | 07.01.309 |
|---|---|
| Brand | Böhler Welding |
| Drive | SL 4R |
| Type | gear wheel on motor shaft |
| Böhler price list name | DRIVING GEAR WHEEL |
| Manufacturer item name | Motorwellenzahnrad (manufacturer DE description) |
| Pack quantity | 1 pc |
Fits
- wire feeders WF NX 330 Smart, WF NX 330 SteelDrive, WF NX 330 DualFeeder, WF NX 430 Smart, WF NX 430 SteelDrive, WF NX 4000 Smart
- machines with built-in feeder: TERRA NX 320/400 SMC, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, URANOS NX 2200 PMC, URANOS NX 2200 MTE, URANOS NX 2700 PMC, URANOS NX 2700 MTE
Also order
FAQ
How does it differ from 07.01.312?
07.01.309 is the motor shaft gear (DRIVING GEAR WHEEL), 07.01.312 is the feed unit gear wheel (FEED UNIT GEAR WHEEL). If unsure which one to replace, send us a photo of the drive.
Does it fit URANOS 2000 SMC?
No. URANOS 2000 SMC has the SF 2R-1T drive, this part belongs to the SL 4R drive.
