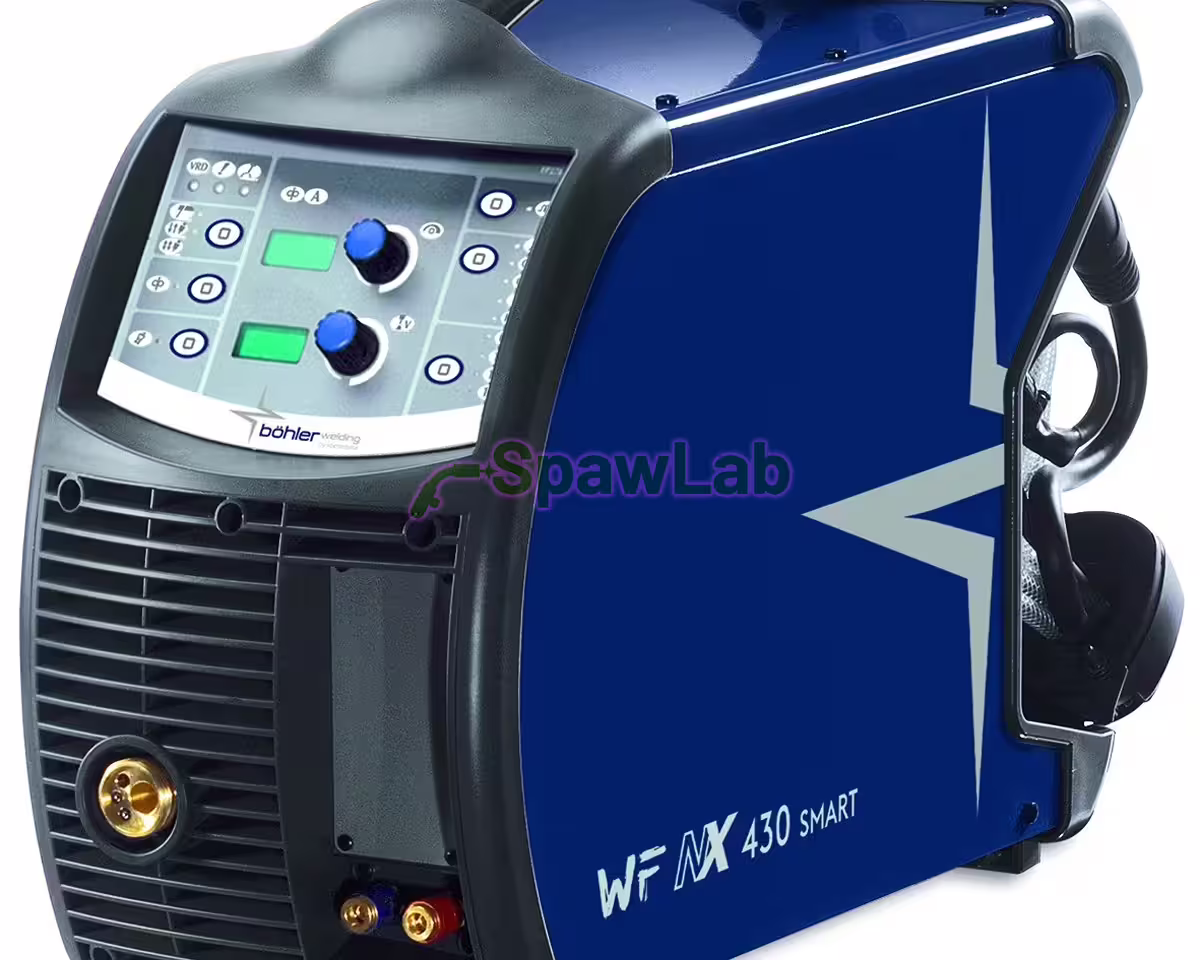

WF NX 430 Smart is an external wire feeder for the Böhler Welding TERRA NX 400 MSE and 500 MSE power sources. It has the SL 4R-2T drive (four rolls, two driven), a 90 W motor and feeds wire at 0.5 to 22 m/min. The housing measures 640 x 250 x 460 mm and the feeder weighs 19.0 kg.
What it is for
- Smart panel: digital setting, wire inch and gas test buttons, no LCD.
- A remote control is connected with kit 73.11.028.
- Feeder holder kit 73.10.075 is available for mounting, wheel kits of 125 or 63 mm for moving it.
- The manufacturer does not list push-pull or U/D for this version: if you need them, choose WF NX 430 SteelDrive.
| Part number | 71.01.082 |
|---|---|
| Brand | Böhler Welding |
| Type | external MIG/MAG wire feeder |
| Drive | SL 4R-2T, 4 rolls (2 driven) |
| Motor power | 90 W |
| Wire feed speed | 0.5 to 22 m/min |
| Wire spool | 200 mm or 300 mm |
| Rolls included | 1.0 to 1.2 mm |
| Range with optional rolls | solid wire 0.6 to 1.6 mm, aluminium 0.8 to 1.6 mm, cored wire 0.9 to 1.6 mm |
| Torch connection | Euro (MIG/MAG) |
| Control panel | digital parameter setting, wire inch button, gas test button |
| Link to power source | CAN bus |
| Dimensions | 640 x 250 x 460 mm |
| Weight | 19.0 kg |
| Protection class | IP23S |
| Pack quantity | 1 pc |
Fits
- Böhler TERRA NX 400/500 MSE: WF NX 430 Smart is listed among the accessories of this power source, next to WF NX 330 Smart and SteelDrive
Also order
- liquid cooled cable: 70 mm² 4 m, 70 mm² 10 m
- torch MT 440 W 4 m
- upgrade kit to 4 driven rolls, feeder holder kit, 125 mm wheels, remote control kit
FAQ
WF NX 430 Smart or WF NX 330 Smart?
SL 4R-2T drive, 90 W and wire speed are the same. 330 Smart weighs 13.0 kg and lists push-pull and a torch holder. 430 Smart weighs 19.0 kg and takes feeder holder kit 73.10.075.
Can I upgrade to four driven rolls?
Yes, the accessories of this feeder include upgrade kit 07.01.512 from 2 to 4 driven rolls, for 1.0/1.2 mm wire.
What is included?
The feeder with rolls for 1.0 to 1.2 mm. Cable, torch and remote control are ordered separately.
