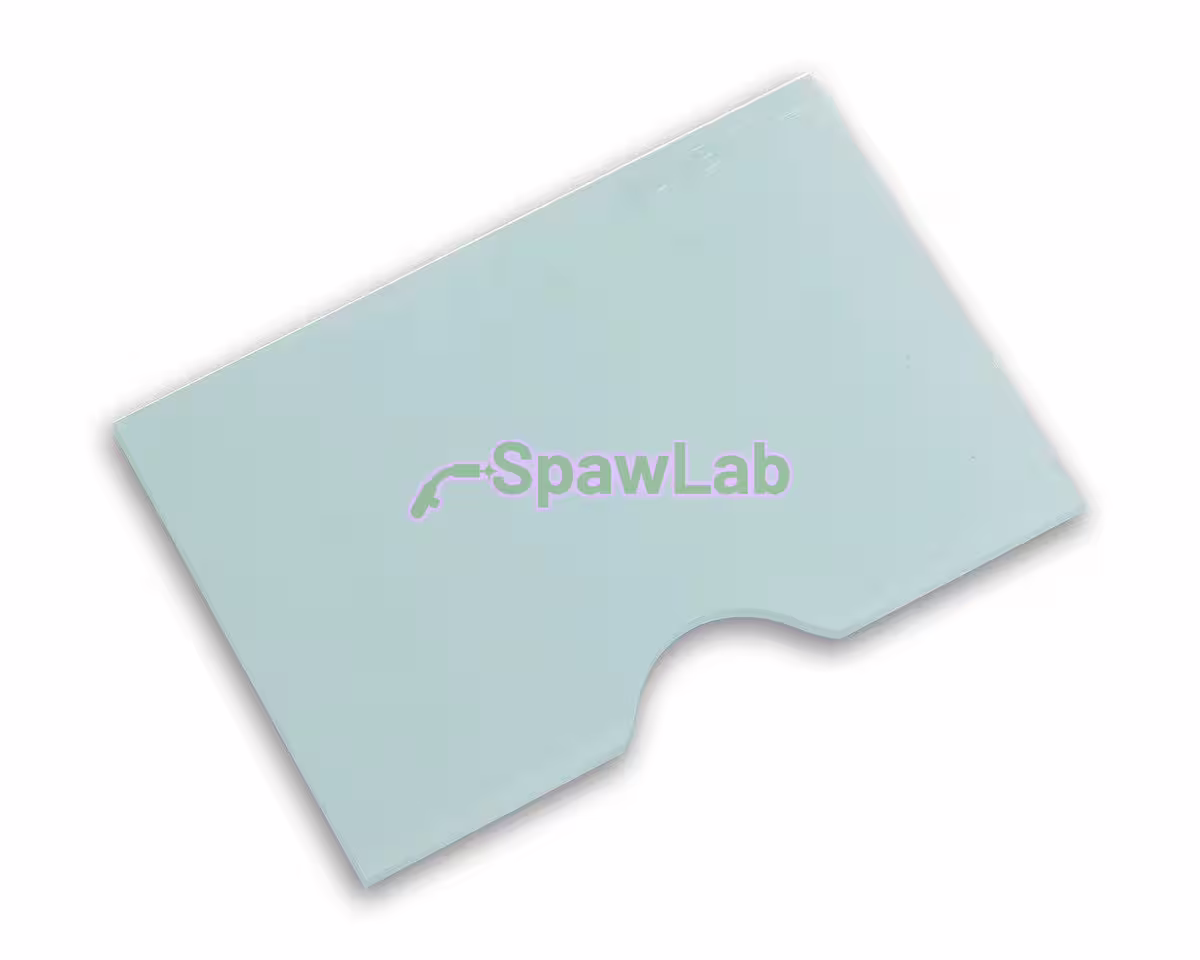

The Evolution Vision inner lens sits behind the ADF in the flip-up element of the Evolution Vision 65F and 65FM helmets, including the Air versions. One pack contains 2 lenses. It fits the filter with a 65 x 96 mm viewing area; the Evolution V80 and V80M have their own inner lens.
Technical specifications
| Catalogue number | 87131 |
|---|---|
| Brand | Böhler Welding |
| Compatible with | Evolution Vision 65F, 65FM, 65F Air, 65FM Air |
| Type | inner lens |
| Fitting | behind the ADF in the flip, under the tabs |
| ADF viewing area | 65 x 96 mm |
| Replacement tool | plunger 87601 |
| Pack quantity | 2 pcs |
Who it is for
For welders with an Evolution Vision 65F or 65FM helmet, including the Air versions and Air Kits, who need to replace a scratched or cracked lens behind the filter.
Key features
- Matched to the Evolution Vision 65 ADF with a 65 x 96 mm viewing area.
- Fits the 65F, 65FM, 65F Air and 65FM Air; the V80 uses a different lens.
- 2 lenses per pack.
- You remove it with a plunger; spare plungers are Böhler Welding inner lens plunger Guardian, Evolution, Laser Guard (2 pcs.).
Compatible with
- Böhler Welding Evolution Vision 65F auto-darkening flip-up welding helmet and Böhler Welding Evolution Vision 65FM auto-darkening helmet with auto-shade
- Böhler Welding Evolution Vision 65F Air flip-up welding helmet for PAPR powered air systems, Böhler Welding Evolution Vision 65FM Air auto-shade welding helmet for PAPR powered air systems and the kits Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR, Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR
Documents
- Evolution Vision 65F and 65FM instruction manual (PDF, multilingual)
- Evolution Vision 65F and 65FM info sheet (PDF, English)
- PPE and accessories catalogue 2023/24 (PDF, English)
Frequently asked questions
Does it fit the Evolution V80?
No. For the Evolution V80 and V80M there is the inner lens Böhler Welding inner lens Evolution V80, V80M (2 pcs). The front cover lens Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs) is shared by both families.
How do I replace the Evolution Vision inner lens?
Raise the flip, rest the helmet chin up, slide both locking tabs to the middle and pull the filter out. Remove the old lens with the plunger supplied with the helmet; locate the new one under the tabs, bend it slightly and push it under all tabs. Then slide the filter back into the flip and move the tabs outwards.
When should I replace the inner lens?
When it is cracked or scratched or impairs vision. The manual recommends a daily check and regular replacement of the lenses with genuine parts.
