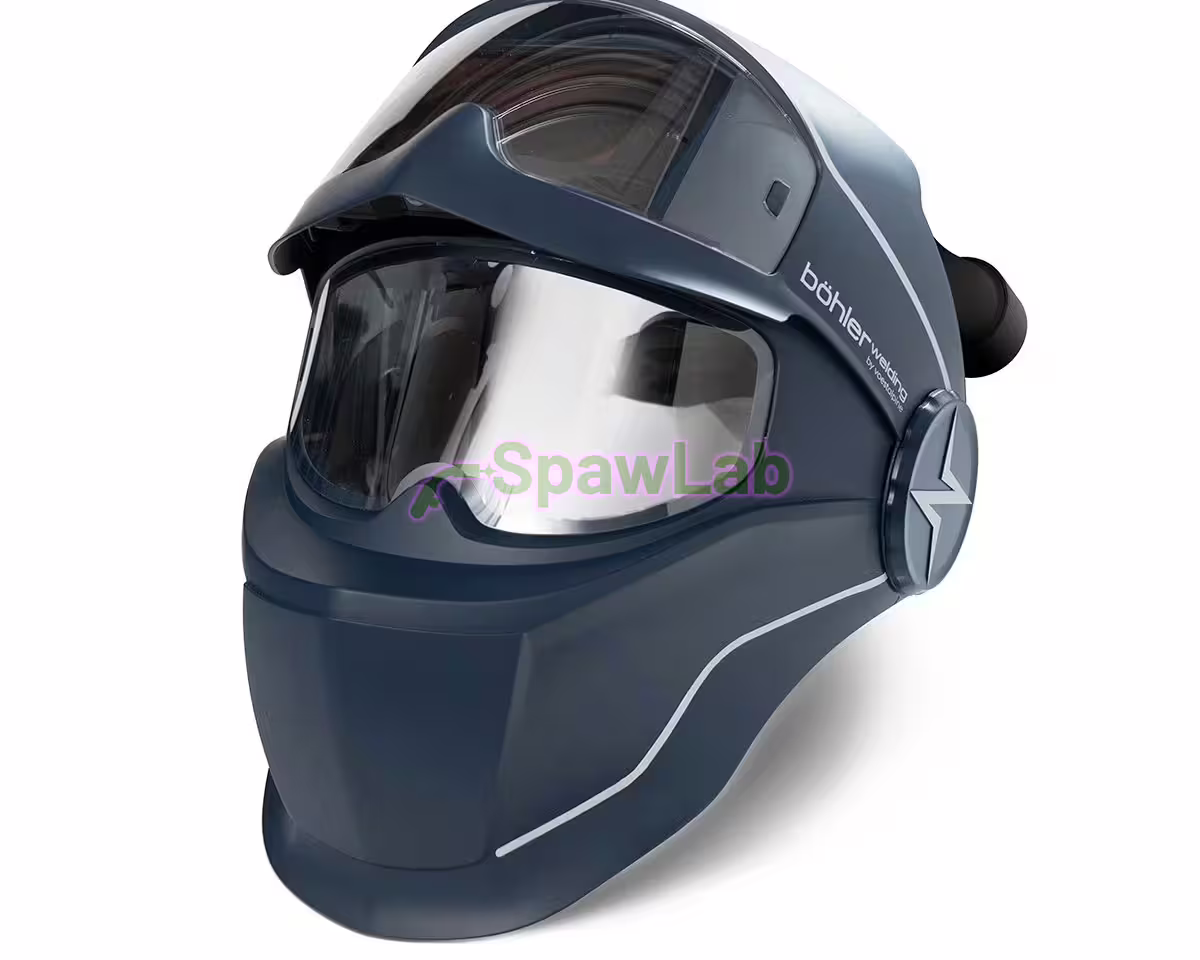

The Böhler Welding Evolution Vision 65FM Air is an auto-darkening welding helmet with a flip-up filter, prepared for a PAPR powered air system, with auto-shade: the filter sets the shade to the arc intensity on its own, and you correct it by 2 shades up or down. The UHD display has a 65 x 96 mm viewing area and optical class 1/1/1/1 to EN 379, with a 180 x 90 mm grinding visor under the filter. You buy the helmet only, without a unit: connect Evolution Air, Guardian Air or Supplied Air.
Technical specifications
| Catalogue number | 87440 |
|---|---|
| Brand | Böhler Welding |
| Model | Evolution Vision 65FM Air |
| Type | Auto-darkening flip-up helmet with auto-shade, prepared for air (without blower unit) |
| Colour | Matt blue |
| ADF | Evolution Vision 65FM auto-shade (87135), flip-up |
| Shade levels (DIN) | 3 (light state), 4-8 (CUT), 9-14 (WELD), AUTO with 2-shade correction |
| ADF viewing area | 65 x 96 mm, UHD display |
| Optical class (EN 379) | 1/1/1/1 |
| Delay | 0.1 to 0.85 s, 6 steps |
| Grinding visor | 180 x 90 mm |
| ADF power supply | CR2450, auto-off after 30 min |
| Operating temperature | -5 to +55 °C |
| Works with | Evolution Air, Guardian Air, Supplied Air |
| Pack quantity | 1 pc. |
| Standards | EN 175 B, EN 379, EN 166, EN 12941 (TH3), EN 14594 (4A) |
Who it is for
For welders who often change current or process and do not want to reset the shade every time, while breathing filtered air for the whole shift. The Evolution Vision 65 manual lists MIG/MAG, TIG with inverters, MMA, argon and helium shielded welding and AC/DC pulse welding. You can return to manual setting at any time, and with the filter raised you grind without disconnecting the air supply.
Which blower unit it works with
- Böhler Welding Evolution Air PAPR blower unit, complete kit with filters: with this helmet class TH3 P R SL to EN 12941, with A1B1E1 gas filters also TH3 ABE1 P R SL; 180 to 240 l/min in 6 levels, up to 14 h on the 7800 mAh battery. This unit is the basis of Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR.
- Böhler Welding Guardian Air PAPR blower unit, complete kit with filter: the helmet is on the list of certified helmets in the Guardian Air manual; 180 to 220 l/min, up to 8 h on the 5200 mAh battery, 870 g.
- Böhler Welding Supplied Air compressed air regulator for air-fed helmets, complete kit: compressed air supply at 3 to 8 bar, class 4A to EN 14594:2018, 180 to 220 l/min in 7 levels.
The helmet is on the lists of certified helmets in the Evolution Air, Guardian Air and Supplied Air manuals, so you can change the system without changing the helmet. Units and kits are listed in the Powered air systems category.
What makes the Evolution Vision 65FM Air different
- Auto-shade: the filter detects the arc intensity and sets the shade itself, with an individual 2-shade correction.
- WELD (9-14), CUT (4-8) and AUTO modes switched with the MODE button, light state shade 3.
- UHD display in optical class 1/1/1/1 to EN 379, 65 x 96 mm viewing area, True Colour technology.
- Delay in 6 steps from 0.1 to 0.85 s and sensitivity in 6 steps, buttons on the lower edge of the filter.
- Flip-up filter with a 180 x 90 mm grinding visor, quick-release ADF.
- Evolution Vision headgear with 4 balancing straps and 3 adjustable straps, circumference adjustment with a knob, plus height and tilt adjustment.
- Switched on with a button, off after 30 minutes without work, CR2450 battery.
- Evolution Vision Air face seal and air duct connector fitted at the factory, matt blue shell.
In the box
- Evolution Vision 65FM Air helmet with Evolution Vision 65FM auto-shade ADF and grinding visor
- Face seal and air duct connector
- 1 spare battery
- 3 front cover lenses
- Helmet pouch
The box contains no blower unit, filters, battery pack, hose or belt: you get them with Evolution Air or Guardian Air. Spawlab is an authorised Böhler Welding distributor in Poland; we issue a VAT invoice and ship by courier from Krotoszyn, also to the European Union.
Consumables and spare parts
- Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs): front cover lenses for the spatter.
- Böhler Welding inner lens Evolution Vision 65F, 65FM (2 pcs): inner lenses, changed with the plunger Böhler Welding inner lens plunger Guardian, Evolution, Laser Guard (2 pcs.).
- Böhler Welding ADF auto-darkening filter Evolution Vision 65FM auto-shade: spare auto-shade ADF, supplied without the Böhler Welding ADF battery CR2450 Guardian, Evolution Vision, Evolution V80, Laser Guard battery.
- Böhler Welding grinding visor Evolution Vision 65F, 65FM (2 pcs): 180 x 90 mm grinding visor.
- Böhler Welding flip-up element Evolution Vision 65FM (matt blue): 65FM flip-up element; for the hinges, the spring and arm kit Böhler Welding spring kit Evolution Vision 65 (2 springs, 2 arms).
- Böhler Welding face seal Evolution Vision 65F Air, 65FM Air and Böhler Welding air duct Evolution Vision 65F Air, 65FM Air: Evolution Vision Air face seal and air duct connector.
- Böhler Welding headgear Evolution Vision 65F, 65FM, V80, V80M, Böhler Welding sweatband Evolution Vision 65F, 65FM, V80, V80M and Böhler Welding sweatband Pro Evolution Vision 65F, 65FM, V80, V80M (front): headgear and sweatbands.
- Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air or Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air, with the cover Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air or Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air: air hose to the unit.
- Böhler Welding magnifying lens (dioptre) +1.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.5 for welding helmets: magnifying lenses from +1.0 to +2.5 dioptres.
Standards and certificates
The shell is marked EN 175 B, the ADF CE 3/4-8/9-14 to EN 379 in class 1/1/1/1, the cover lenses EN 166 1 B, in line with Regulation (EU) 2016/425. With Evolution Air the system meets EN 12941 class TH3 P R SL, with Supplied Air EN 14594:2018 class 4A. Only the lowered filter protects your eyes against the arc.
Documents
- Evolution Vision 65F and 65FM instruction manual (PDF, multilingual)
- Evolution Air instruction manual with the list of certified helmets (PDF, multilingual)
- Guardian Air instruction manual with the list of certified helmets (PDF, multilingual)
- Evolution Vision info sheet (PDF, English)
- PPE and accessories catalogue 2023/24 (PDF, English)
Frequently asked questions
How does auto-shade work?
The Evolution Vision 65FM filter measures the intensity of the struck arc and sets the shade itself. You correct the result by 2 shades up or down, and you can switch to manual WELD or CUT at any time with the MODE button.
How does it differ from the Evolution Vision 65F Air and the Air Kit?
The Böhler Welding Evolution Vision 65F Air flip-up welding helmet for PAPR powered air systems has a manually set filter and a glossy shell; with the 65FM Air you pay for auto-shade and a matt shell, while the 65 x 96 mm display and grinding visor are the same. The Böhler Welding Evolution Vision 65FM auto-darkening helmet with auto-shade is the same helmet without air supply. The Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR is this helmet with Evolution Air, a 7800 mAh quick-charge battery and an Evolution bag.
Can I weld with the filter raised?
No. The Evolution Vision 65 manual states that your eyes are protected against arc radiation only with the filter lowered. The visor under the filter is for grinding.
Does the helmet work without a blower unit?
Do not use it that way. The Evolution Air and Guardian Air manuals warn that without air supply carbon dioxide builds up quickly under a sealed helmet and oxygen drops.
Is it suitable for laser or gas welding?
No. The manual excludes laser welding and oxy-acetylene welding. For laser work the manufacturer offers the Laser Guard Air.
