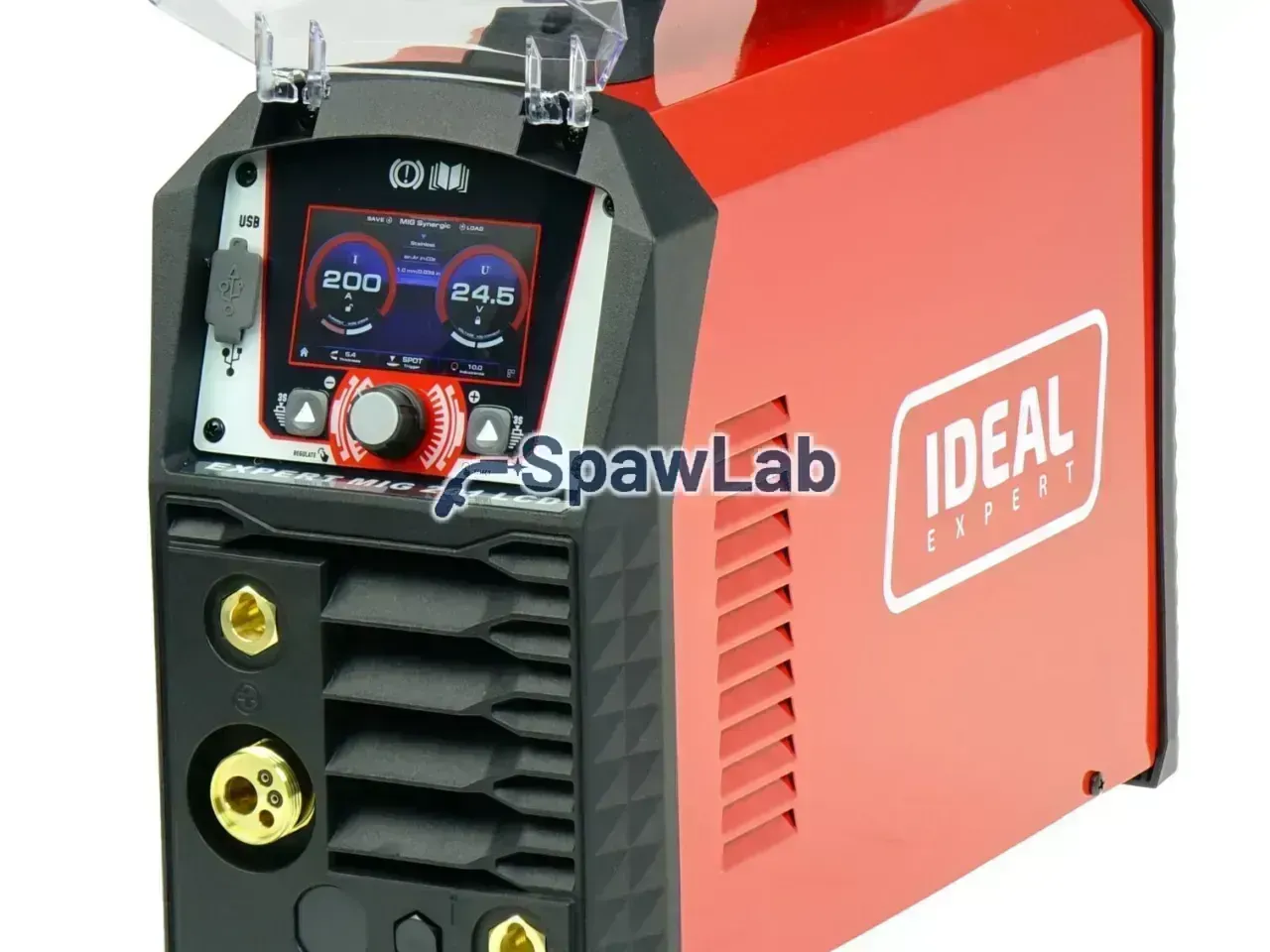

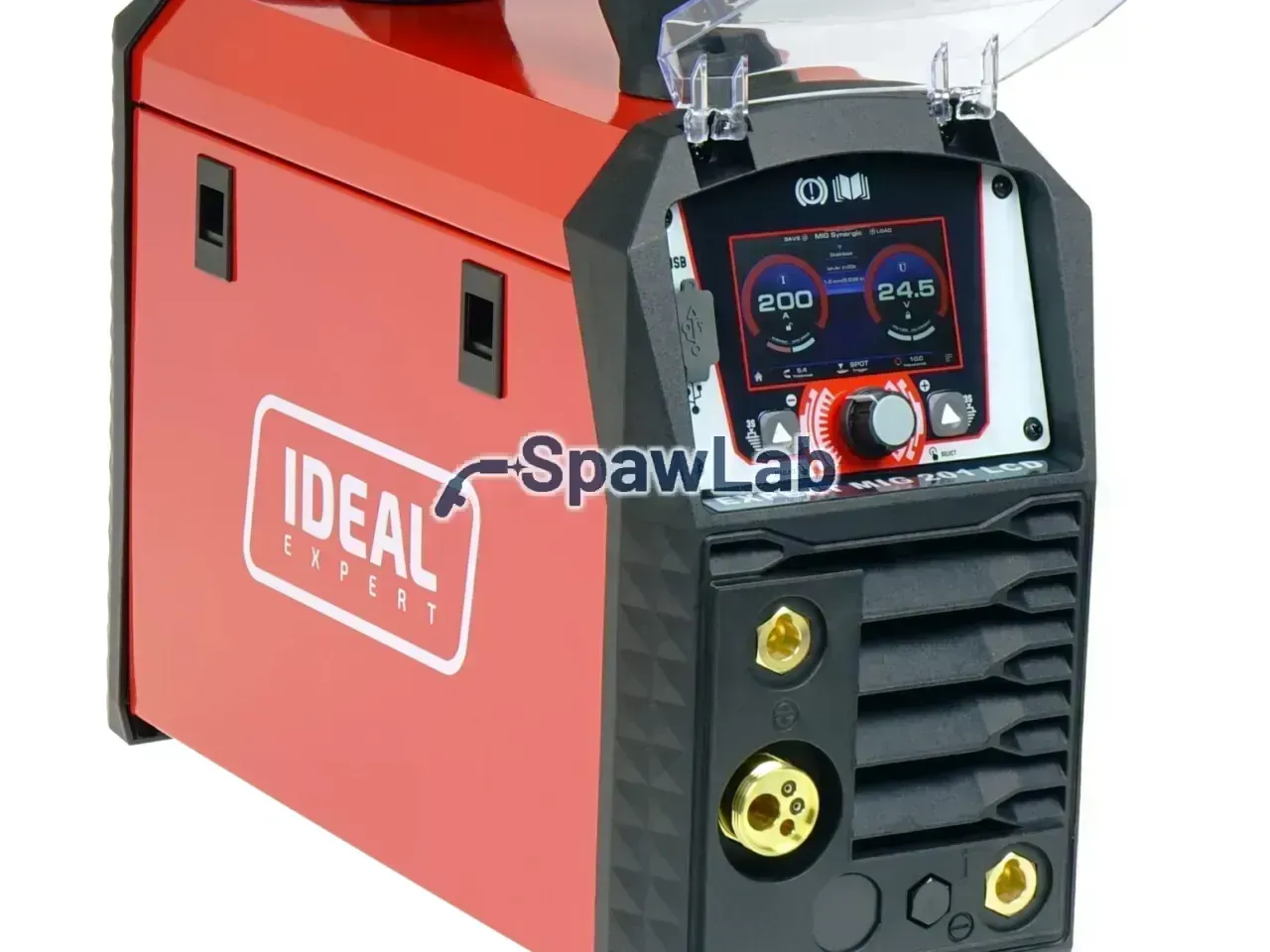

Ideal Expert MIG 201 LCD is a synergic 230 V inverter MIG/MAG welder for MIG/MAG, self-shielded wire (FLUX), TIG LIFT and MMA welding. You use it on steel, stainless steel and aluminium, and you can also braze galvanised car bodies and high-strength steels. It suits maintenance work and car body repairs. Welding current reaches 200 A, and a 2-roll feeder drives the wire.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: 25 A (C)
- Power: 7.5 kW
- Welding current range: MIG 25 to 200 A, TIG and MMA 10 to 200 A
- Duty cycle: 200 A at 60%, 127 A at 100%
- Wire feeder: 2-roll
- Steel wire: 0.6 to 1.0 mm
- Stainless steel wire: 0.8 to 1.0 mm
- Aluminium wire: 0.8 to 1.2 mm
- Brazing wire: 0.8 to 1.0 mm
- Self-shielded wire: 0.8 to 1.0 mm
- MMA electrode: 1.6 to 5.0 mm
- Protection rating: IP21S
- Weight of machine / set: 11 / 16 kg
- Dimensions (L x W x H): 465 x 190 x 360 mm
- Packaging dimensions: 640 x 280 x 460 mm
Features

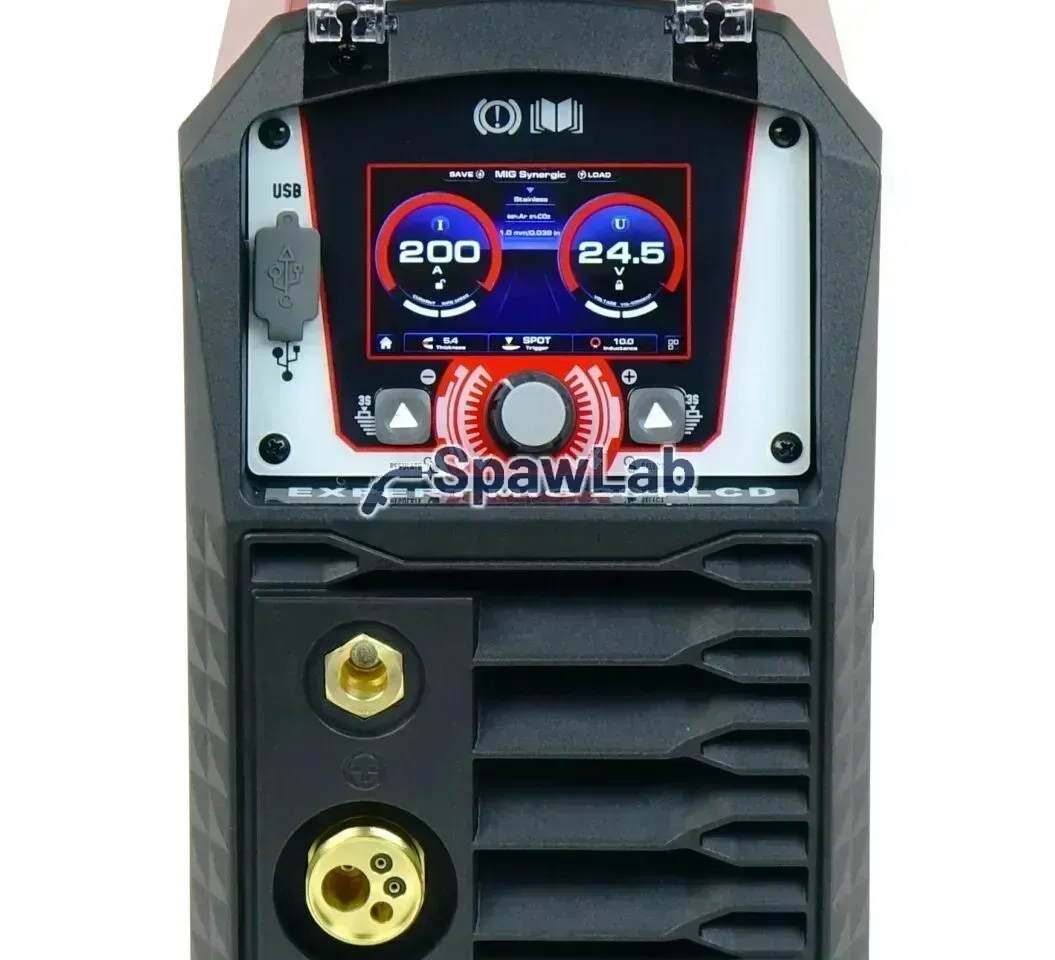

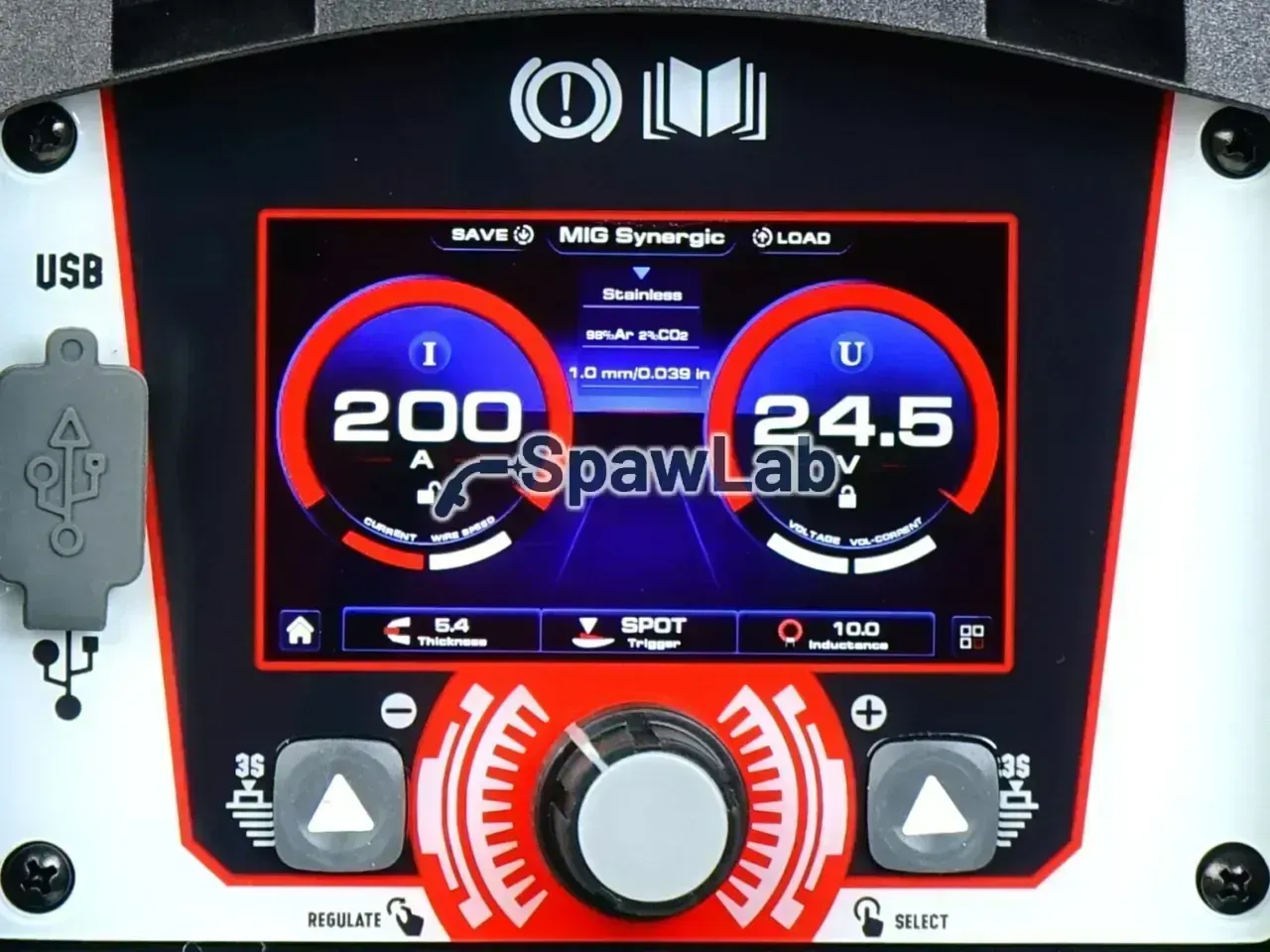

Synergic control on the LCD display
On the LCD display you select the material type and wire diameter, and the machine sets the values itself before you weld. You can correct the arc length manually and adjust the look of the weld to your needs.
Manual mode
Besides synergic mode you have a manual mode. In it you set the wire feed speed and arc voltage over the full range.
Torch trigger modes
In MIG/MAG you choose 2T (no trigger latch), 4T (latch for long welds), S2T (2T with adjustable current up-slope, down-slope and time), S4T (4T with adjustable current up-slope and down-slope) or SPOT, that is spot welding.
Cooling and protection
The fan has 2 operating modes. The machine has overload protection.

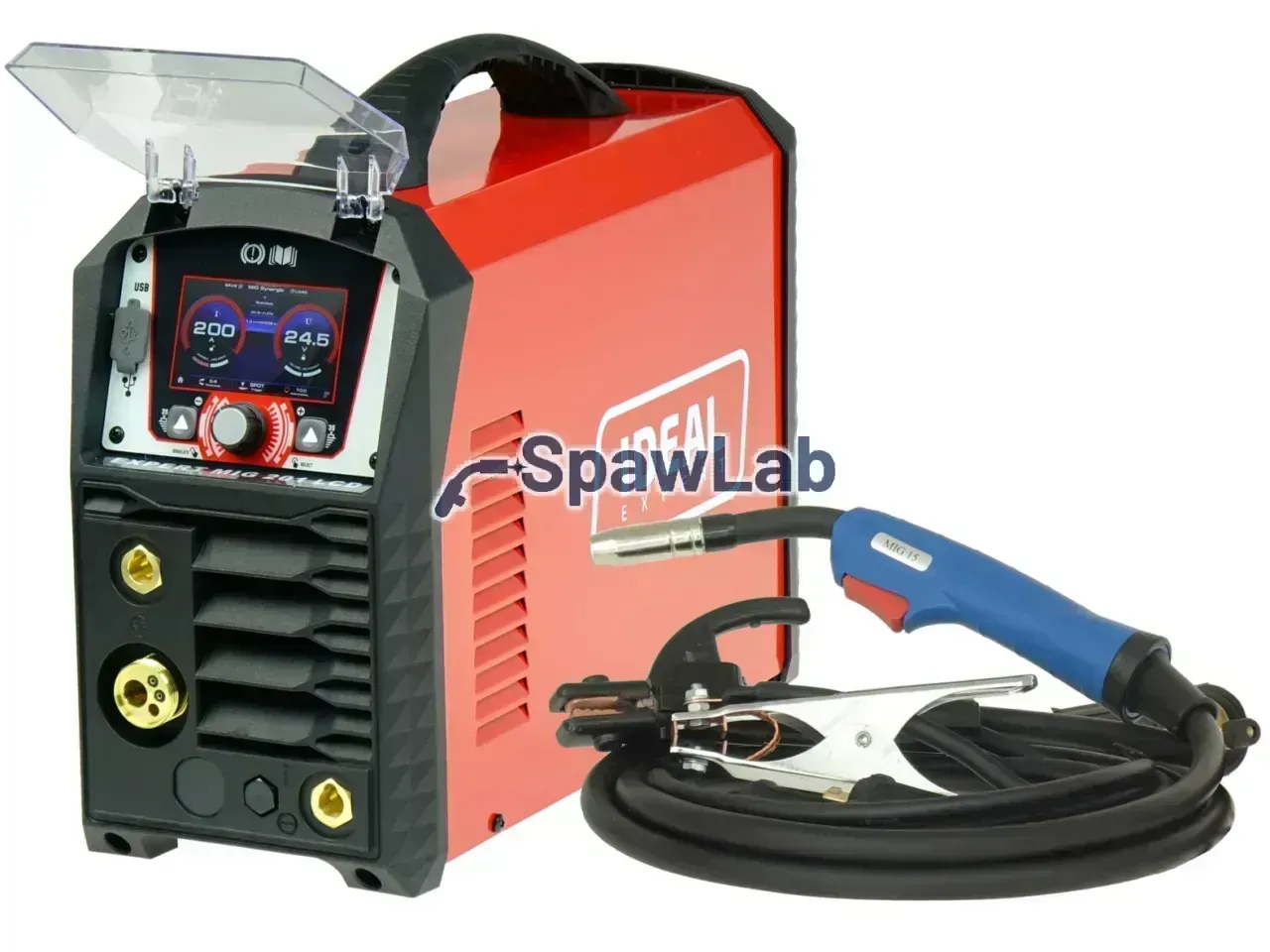

In the box
- EURO MB15 welding torch, 3 m
- Earth cable, 3 m
- Electrode cable, 3 m
- Gas hose with quick coupler, 3 m
12-month warranty for professional use, door-to-door service with no transport costs on your side.
