Description
Inverter professional semi-automatic welding machine for MIG-MAG welding, FLUX welding with welding wire without shielding gas and MMA welding with covered electrode. Welding current 200A Power supply 230V.Welding wire diameter 0,6-1,0mm.
The PRAKTIK MIG 211 MMA DIGITAL is an inverter semi-automatic welding machine designed for MIG/MAG, MMA and FLUX arc welding. The machine has been designed for a wide range of applications: from maintenance work to auto body repair.
PRAKTIK MIG 211 is used for welding carbon and low-alloy steels and aluminum . Welding is carried out under the cover of inert gas, active gas or mixture, and in reverse polarity without gas.
The device is equipped with inductance control.
Physical parameters
The device has a fan-cooling system which definitely increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase 230V power supply.
The device is equipped with a power plug.
Equipment

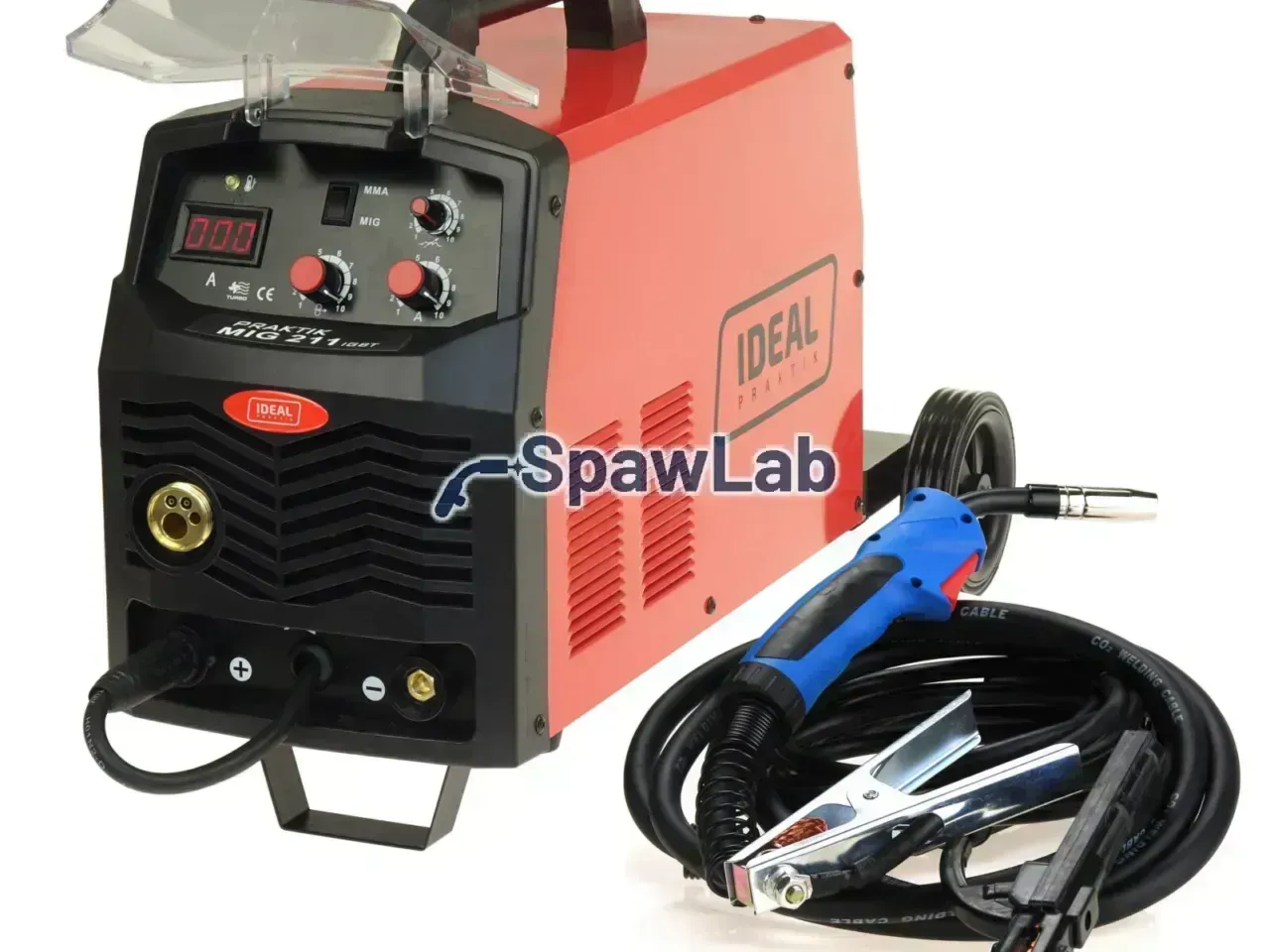

The supply includes a device with a 3-meter-long MIG 15 welding chuck, a 2-meter-long ground wire and a 2-meter-long electrode wire.
Warranty conditions
Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side.
| PHYSICAL PARAMETERS | |
| Wire spool size | 5 kg |
| Degree of protection | IP 21S |
| SPECIFICATIONS | |
| Power | 6.2 kW |
| Idle state voltage | 43 V |
| Current at 100% operation | 130 A |
| Current at 60% operation | 200 A (MIG) / 180 A (MMA) |
| Diameter of aluminum wire | 0.8 – 1.0 mm |
| Self-insulating wire diameter | 0.8 – 1.2 mm |
| Steel wire diameter | 0.6 – 1.0 mm |
| Stainless steel wire diameter | 0.6 – 1.0 mm |
| Welding electrode diameter | 1.6 – 4.0 mm |
| Welding current adjustment range | 30 – 200A (MIG) / 30 – 180A (MMA) |
| POWER SUPPLY PARAMETERS | |
| Mains protection | C20A |
| Rated supply voltage | 230 V; 50Hz (1ph) |
