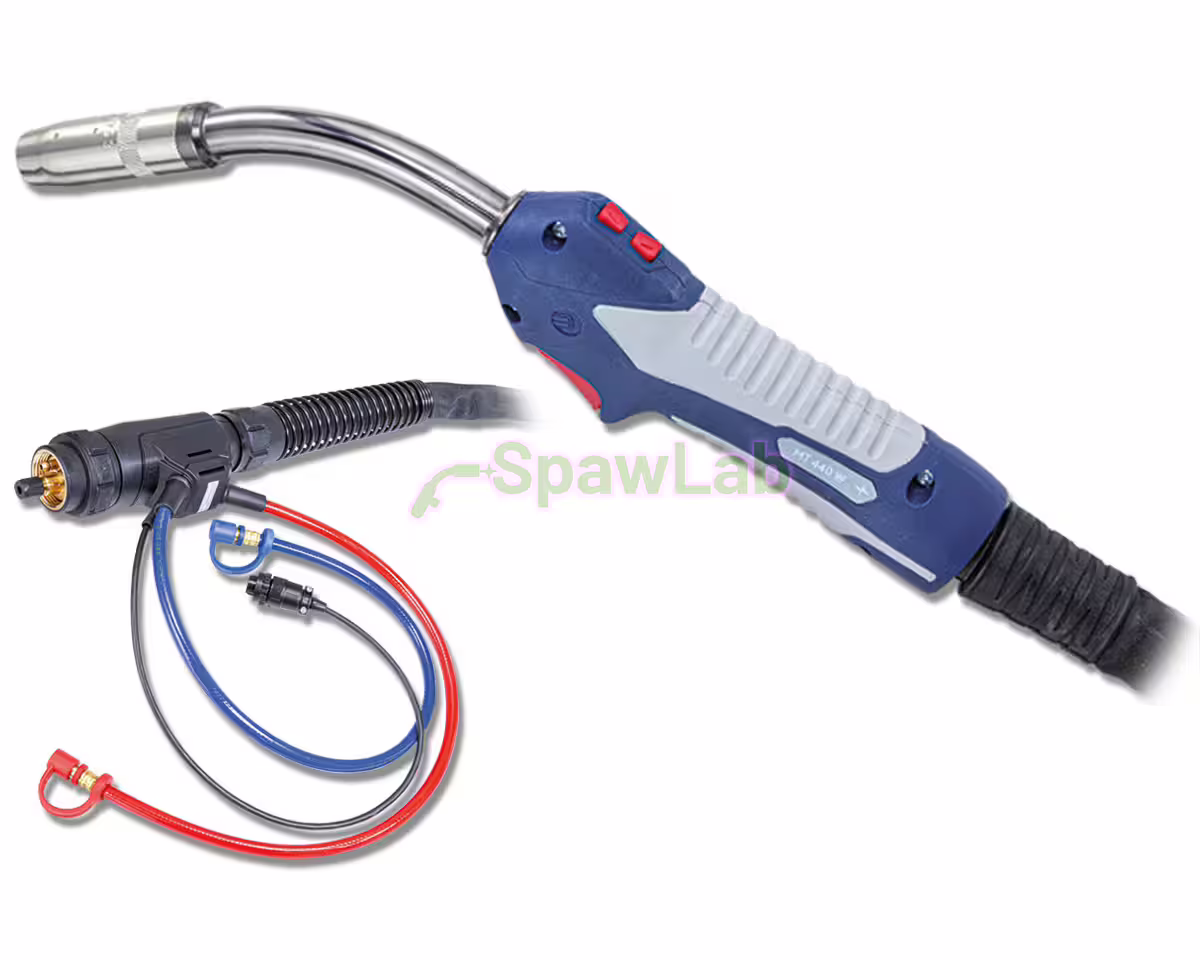

MT 540 W U/D is a liquid-cooled Böhler Welding MIG/MAG torch with a 4 m cable assembly and Euro connector, with Up/Down buttons on the handle. It takes 0.8 to 1.6 mm wire and is rated 550 A with Ar/CO2 mixed gas and 600 A with CO2 at 100% duty cycle. The same model is also available as a 3 m version (81.05.041) with a shorter cable assembly.
What it is for
The highest-rated MT variant with Up/Down buttons. Choose it when you weld for long periods at high current and want to change settings from the handle without leaving the joint.
The torch needs a cooling unit with coolant. The 30 mm M8 contact tips are shared with MT 440 W, while the M8 tip holder and the gas nozzle are specific to MT 540 W. For work close to the machine there is a 3 m version (81.05.041).
| Part number | 81.05.042 |
|---|---|
| Brand | Böhler Welding |
| Model | MT 540 W U/D |
| Process | MIG/MAG |
| Cooling | liquid |
| Cable length | 4 m |
| Wire diameter | 0.8 to 1.6 mm |
| Rating with Ar/CO2 mixed gas | 550 A at 100% duty cycle |
| Rating with CO2 | 600 A at 100% duty cycle |
| Contact tip thread | M8 |
| Connector | Euro |
| Handle control | Up/Down buttons (U/D) |
| Pack quantity | 1 pc |
Fits
- TERRA NX 320/400 PMC
- TERRA NX 320/400 SMC
- TERRA NX 400 PMC DualFeeder
- TERRA NX 400/500 MSE
- TERRA NX 400/500 PME
- URANOS NX 4000/5000 GSM
Also order
- Contact tip M8 1.0 mm ECu
- Contact tip M8 1.2 mm ECu
- Contact tip M8 1.2 mm CuCrZr
- Contact tip M8 1.6 mm CuCrZr
- Tip holder M8 for MT 540 W
- Gas nozzle for MT 540 W
- Insulating washer
- Steel liner 1.0 to 1.2 mm, 4 m
- Carbon PTFE liner for Al wire 1.0 to 1.2 mm, 4 m
- Coolant CL10, 10 kg
- Cooling unit for your machine: WU 330 (TERRA NX SMC), WU 430 (TERRA NX PMC and PME 400/500), WU 230 (TERRA NX 400/500 MSE), WU 430 DualFeeder (TERRA NX 400 PMC DualFeeder), WU 3000 (URANOS NX 4000/5000 GSM)
FAQ
What are the U/D buttons for?
These are Up/Down buttons on the handle. You use them to change the welding settings from the torch without leaving the joint.
What is the difference between ECu and CuCrZr tips?
ECu is electrolytic copper, CuCrZr is a copper alloy with chromium and zirconium that is harder and copes better with high temperature. For welding at high current CuCrZr is the more common choice. For 1.6 mm steel wire the M8 tip is available only in CuCrZr.
Does it fit URANOS NX 2200 and 2700?
In the Böhler 2026/27 price list MT 540 W is not among the accessories of URANOS NX 2200, 2700 or 3200 GSM. For these machines choose MT 440 W or MT 440 W U/D.
