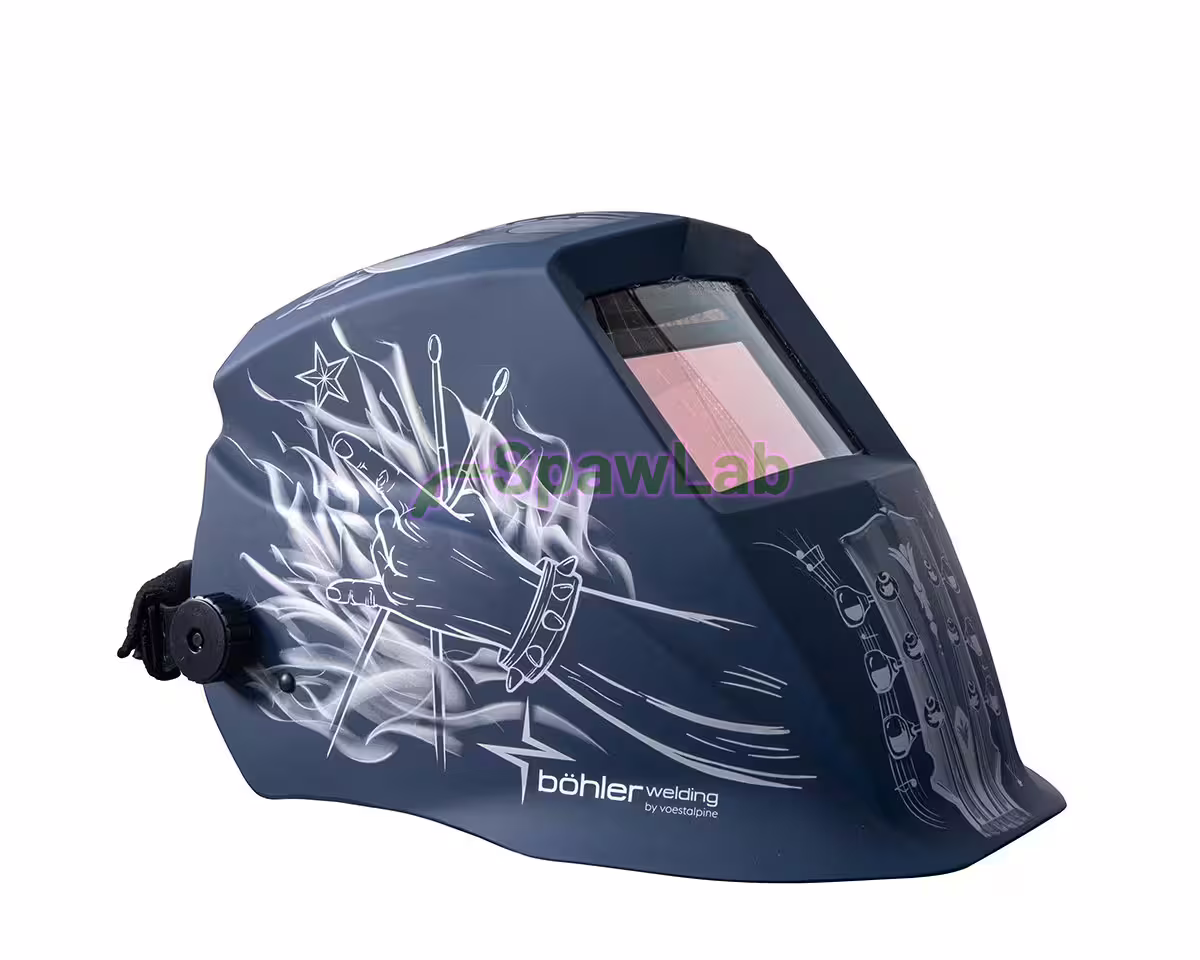

Guardian 62 Rockstar is an edition of the Böhler Welding Guardian 62 auto-darkening helmet with Rockstar graphics on the shell. Underneath the graphics is the same technology: an ADF with a 62 x 98 mm viewing area, light shade 4 and dark shades 5 to 9 and 9 to 13, EN 379 rating 1/1/1/2 and a weight of 480 g. All Guardian 62 consumables fit.
Technical specifications
| Catalogue number | 88586 |
|---|---|
| Brand | Böhler Welding |
| Model | Guardian 62 Rockstar (Guardian 62 edition) |
| Type | auto-darkening welding helmet (ADF) |
| Shades (DIN) | light 4, dark 5-9 and 9-13 |
| Grind mode | yes, external switch |
| ADF viewing area | 62 x 98 mm |
| Optical class (EN 379) | 1/1/1/2 |
| Arc sensors | 4 |
| TIG welding | above 5 A |
| ADF power supply | CR2450 battery |
| Automatic shut-off | after 15 min without use |
| Operating temperature | -5 to +55 °C |
| Weight | 480 g |
| Pack quantity | 1 pc. |
| Standards | EN 175 B, EN 379, EN 166, CE, UKCA, ANSI, CSA |
Who it is for
For welders who want a helmet that stands out in the workshop with the specification of the proven Guardian 62. The manufacturer recommends this model mainly for MAG and TIG welding and approves the filter for TIG above 5 A. The manual also lists MIG/MAG, stick welding (MMA), TIG on inverter power sources, AC/DC pulse welding and work under argon and helium shielding. Between welds you can grind in the filter's grind mode. The operating temperature range is -5 to +55 °C.
What makes the Guardian 62 Rockstar different
- Rockstar graphics on the shell; specification, filter and parts as on the Guardian 62.
- Filter with a 62 x 98 mm viewing area and True Blue Color technology; the manufacturer describes its clarity as Best-In-Class.
- EN 379 rating 1/1/1/2: optics 1, diffusion of light 1, variation in luminous transmittance 1, angle dependence 2.
- 4 arc sensors and stepless sensitivity adjustment by knob.
- External switch: shade 9 to 13, shade 5 to 9 or grind mode.
- 480 g, high impact nylon shell marked EN175 B.
- Comfort headgear: rear size knob, top strap, longitudinal and angular adjustment, smooth ratchet.
- CR2450 battery and automatic filter shut-off after 15 minutes without use.
In the box
- Guardian 62 Rockstar welding helmet, assembled
- Guardian 62 ADF with front cover lens and inner lens
- Comfort headgear with sweatbands
- Instruction manual
Consumables and spare parts
- Front cover lenses: Böhler Welding front cover lens Guardian 50, 62, 62F, Laser Guard (10 pcs) and the reinforced Böhler Welding front cover lens Heavy-Duty Guardian 50, 62, 62F, Laser Guard (5 pcs).
- Böhler Welding inner lens Guardian 62, 62F, 62 Air, 62F Air (5 pcs): inner lens fitted from the back into the filter locators; Böhler Welding inner lens plunger Guardian, Evolution, Laser Guard (2 pcs.) helps to remove it.
- Böhler Welding ADF auto-darkening filter Guardian 62, 62F: spare ADF, supplied without battery; the battery is Böhler Welding ADF battery CR2450 Guardian, Evolution Vision, Evolution V80, Laser Guard.
- Böhler Welding ADF retainer with screw Guardian 62, 62F: frame and screw that hold the filter.
- Böhler Welding headgear Guardian 50, 62, 62F, Big Vision, Laser Guard and Böhler Welding sweatbands Guardian 50, 62, 62F, Big Vision, Laser Guard (2 pcs, front and rear): headgear and sweatbands.
- Magnifying lenses (dioptres): Böhler Welding magnifying lens (dioptre) +1.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.5 for welding helmets.
- Pouch and bags: Böhler Welding head top pouch (black), Böhler Welding Bag for helmet and PAPR system, black, Böhler Welding Bag for helmet and PAPR system, blue, Böhler Welding Evolution Bag for helmet and PAPR system, blue.
- Böhler Welding LED light for welding and grinding helmets: extra light on the work area, for any welding or grinding helmet.
- Böhler Welding hard hat adapter Guardian 50, 62, 62F, Big Vision: adapter for mounting Guardian helmets on a hard hat.
All Guardian parts are in the category Welding helmet parts. You buy from an authorised Böhler Welding distributor and service partner in Poland, with a VAT invoice.
Standards and certificates
As for the Guardian 62: shell to EN 175 (EN175 B), ADF to EN 379 (CE 4/5-9/9-13 VA 1/1/1/2 EN379), cover lens to EN 166 (EN166 1 B), compliance with PPE Regulation (EU) 2016/425, CE, UKCA, ANSI and CSA certification.
Documents
- Guardian 62 instruction manual (PDF, multilingual)
- Fact sheet Guardian 50, 62 and 62F welding helmets (PDF, English)
Frequently asked questions
How does the Rockstar differ from the standard Guardian 62?
In the look of the shell. The filter, shell and technical data are the same as on the Guardian 62 (Böhler Welding Guardian 62 auto-darkening welding helmet), so you choose between them by the graphics only. If you grind a lot, consider the Guardian 62F (Böhler Welding Guardian 62F auto-darkening flip-up welding helmet): for the extra cost you get the same filter on a flip-up front and a clear grinding visor underneath.
Do Guardian 62 parts fit the Rockstar version?
Yes. Front cover lenses 32423 and 87151, inner lens 32433, filter 63635, headgear 32406 and sweatbands 32416 are the same numbers as for the Guardian 62.
Is it suitable for TIG at low current?
The manufacturer states TIG above 5 A for the Guardian 62 filter. With a weak arc, increase the sensitivity and check that the sensors are clean and facing the arc.
How do I switch on grind mode?
With the switch on the outside of the shell: it has three positions, shade 9 to 13, shade 5 to 9 and grind mode, in which the filter does not darken.
Where is the on/off switch?
There is none. The filter shuts off by itself after 15 minutes without use, and you change the CR2450 battery after removing the cover on the inside of the grind switch.
