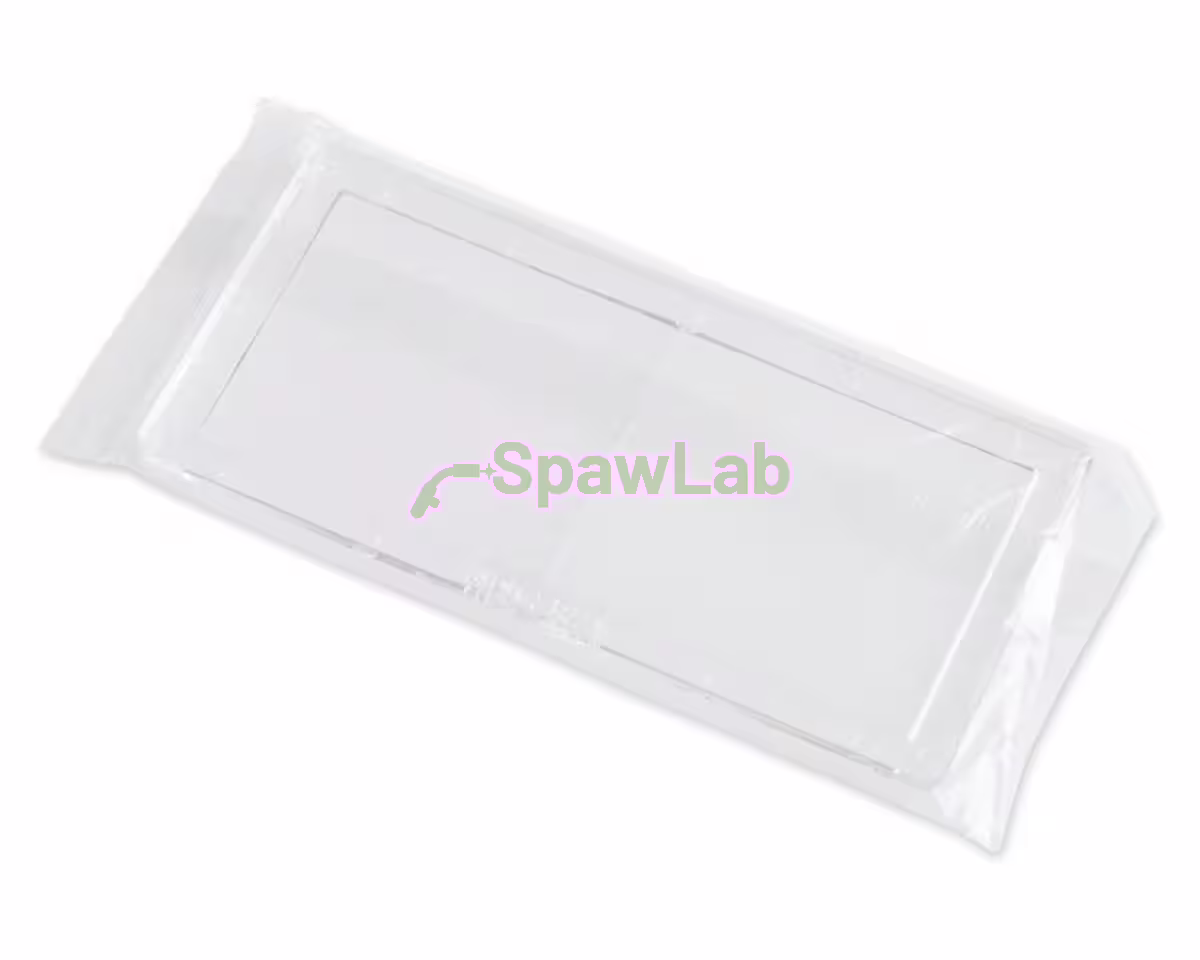

The magnifying lens +1.0 (dioptre, part no. 32444) is the weakest of the 4 Böhler Welding lenses for welding helmets. You fit it at the ADF filter and see the weld, the wire and the edge of the pool more sharply up close.
Technical specifications
| Catalogue number | 32444 |
|---|---|
| Brand | Böhler Welding |
| Type | magnifying lens (dioptre) |
| Strength | +1.0 |
| Compatible with | Guardian 50, 62, 62F, 62 Rockstar, 50M Air, 50FM Air, 62 Air, 62F Air; Evolution Vision 65F, 65FM, 65F Air, 65FM Air; Evolution V80, V80M, V80 Air, V80M Air (with adapter 89073); Laser Guard, Laser Guard Air; Safe Guard 62F Air |
| Other strengths | +1.5 (32445), +2.0 (32452), +2.5 (32456) |
| Pack quantity | 1 pc. |
Who it is for
- Welders who see the weld up close a little less sharply than before.
- Anyone who does not know their strength and wants to start with the weakest.
- Work at your usual distance from the workpiece, when light magnification is enough.
Is the magnifying lens +1.0 the right one?
+1.0 is the weakest of the 4 strengths and the simplest starting point if you do not know which one you need.
- Fit the lens and look at the weld from the distance you usually weld at.
- The pool edge and the wire are still blurred: move up to +1.5 Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets.
- The image only gets sharp when you bring your head closer than usual: the lens is too strong, try working without it.
- You wear prescription glasses: agree the lens strength with an optician.
Key features
- The weakest strength on offer: +1.0.
- Fits 19 Guardian, Evolution, Laser Guard and Safe Guard helmets, including the Air versions.
- In the Evolution V80 it goes into the dioptre adapter Böhler Welding dioptre adapter Evolution V80, V80M.
- Sold individually, so you can change the strength without changing the helmet.
Compatible with
- Guardian: Böhler Welding Guardian 50 auto-darkening welding helmet, Böhler Welding Guardian 62 auto-darkening welding helmet, Böhler Welding Guardian 62F auto-darkening flip-up welding helmet, Böhler Welding Guardian 62 Rockstar auto-darkening welding helmet
- Guardian air-fed helmets: Böhler Welding Guardian 50M Air welding helmet for PAPR powered air systems, Böhler Welding Guardian 50FM Air flip-up welding helmet for PAPR powered air systems, Böhler Welding Guardian 62 Air welding helmet for PAPR powered air systems, Böhler Welding Guardian 62F Air flip-up welding helmet for PAPR powered air systems
- Evolution Vision 65: Böhler Welding Evolution Vision 65F auto-darkening flip-up welding helmet, Böhler Welding Evolution Vision 65FM auto-darkening helmet with auto-shade, Böhler Welding Evolution Vision 65F Air flip-up welding helmet for PAPR powered air systems, Böhler Welding Evolution Vision 65FM Air auto-shade welding helmet for PAPR powered air systems
- Evolution V80 with the dioptre adapter Böhler Welding dioptre adapter Evolution V80, V80M: Böhler Welding Evolution V80 auto-darkening welding helmet, Böhler Welding Evolution V80M auto-darkening helmet with auto-shade, Böhler Welding Evolution V80 Air welding helmet for the Evolution Air PAPR system, Böhler Welding Evolution V80M Air auto-shade welding helmet for the Evolution Air PAPR system
- Laser Guard: Böhler Welding Laser Guard helmet for laser and hybrid welding, Böhler Welding Laser Guard Air laser and hybrid welding helmet for PAPR powered air systems
- Safe Guard: Böhler Welding Safe Guard 62F Air safety helmet with welding flip for PAPR powered air systems
- Air Kits: Böhler Welding Guardian 62 Air Kit, welding helmet with Evolution Air PAPR, Böhler Welding Guardian 62F Air Kit, flip-up welding helmet with Evolution Air PAPR, Böhler Welding Guardian 50M Air Kit, welding helmet with Guardian Air PAPR, Böhler Welding Guardian 50FM Air Kit, flip-up welding helmet with Guardian Air PAPR, Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR, Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR, Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR, Böhler Welding Evolution V80M Air Kit, auto-shade welding helmet with Evolution Air PAPR
More spare parts are in the Welding helmet parts category.
Documents
- Guardian 62 instruction manual (PDF, multilingual)
- Evolution Vision 65F and 65FM instruction manual (PDF, multilingual)
- Evolution V80 and V80M instruction manual (PDF, multilingual)
- PPE and accessories catalogue 2023/24 (PDF, English)
Frequently asked questions
How do I check that +1.0 is the right strength?
Weld in your usual position. If the weld is sharp from that distance, the strength is right. If it is still blurred, try +1.5 Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets.
Does the lens fit the Evolution V80?
Yes, the Evolution V80, V80M, V80 Air and V80M Air with the dioptre adapter Böhler Welding dioptre adapter Evolution V80, V80M, sold separately.
Does it fit the Big Vision?
No. The Big Vision and Big Vision Air are grinding helmets without an ADF filter, and the lens is fitted at the filter.
