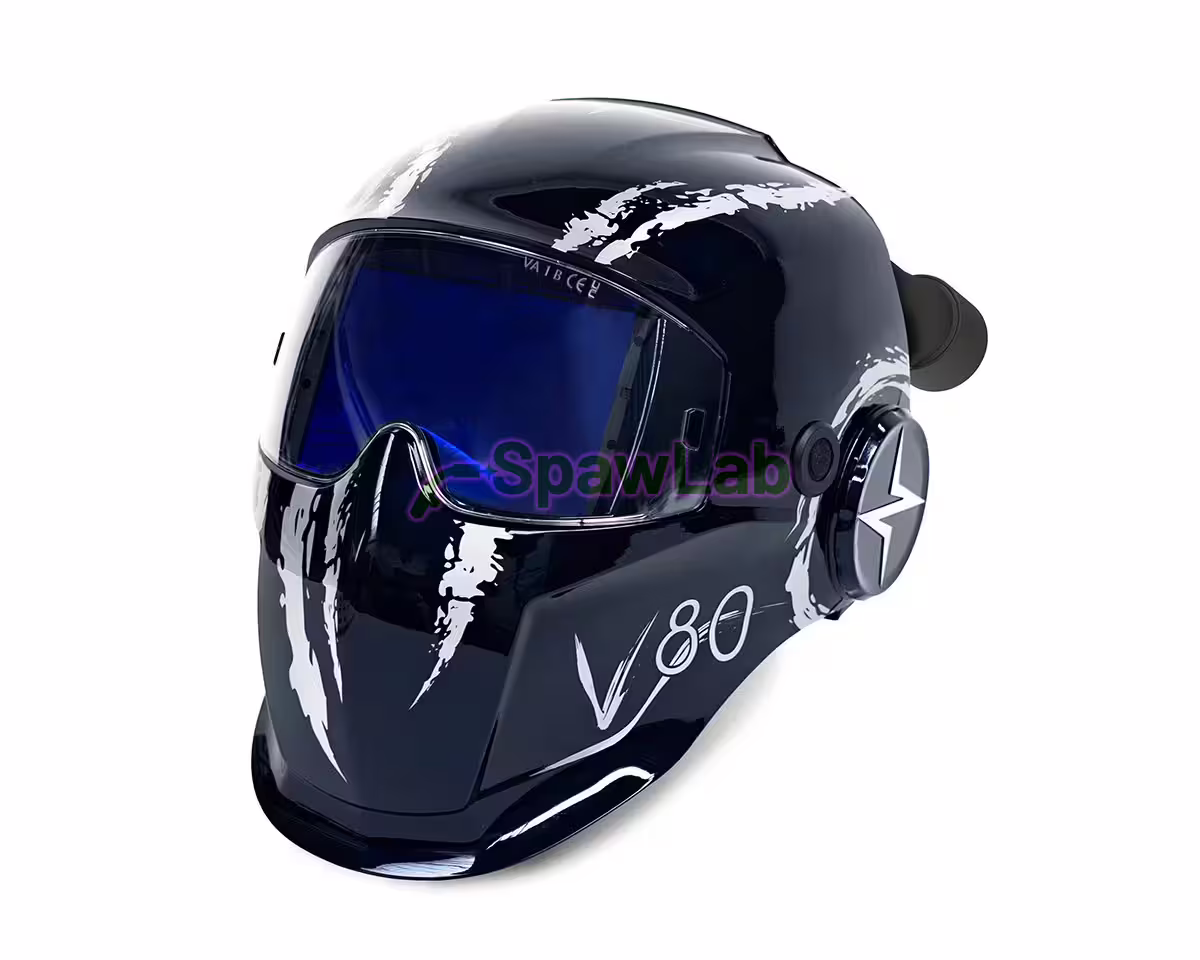

The Böhler Welding Evolution V80 Air is an auto-darkening welding helmet prepared for the Evolution Air PAPR system. Its ADF has a UHD display with a 124 x 80 mm viewing area, light state shade 2.5 and ranges 4-8 and 9-14 adjustable in 0.5 steps. You buy the helmet only, without a blower unit: to work with it you need the Evolution Air unit or the ready Evolution V80 Air Kit.
Technical specifications
| Catalogue number | 89508 |
|---|---|
| Brand | Böhler Welding |
| Model | Evolution V80 Air |
| Type | Auto-darkening helmet prepared for air (without blower unit) |
| Colour | Glossy blue |
| ADF | Evolution V80 (89069) |
| Shade levels (DIN) | 2.5 (light state), 4-8 and 9-14, 0.5 steps |
| ADF viewing area | 124 x 80 mm, UHD display |
| Optical class (ISO 16321-2) | V1 |
| Arc sensors | 4 |
| Delay | 0.1 to 0.85 s, 6 steps |
| ADF power supply | 2 x CR2450, up to 2500 h |
| Operating temperature | -5 to +55 °C |
| Works with | Evolution Air |
| Pack quantity | 1 pc. |
| Standards | ISO 16321, EN 166, EN 12941 (TH3 with Evolution Air) |
Who it is for
- For welders who work in fumes for the whole shift and need a large field of view: the display measures 124 x 80 mm, and Evolution Air supplies air under the helmet that is 99.8 % particle-free.
- For heavy-duty applications and high welding speeds, when you want to see the weld from every position and angle.
- For different processes with one helmet: MIG/MAG, TIG, MMA, plasma cutting (CUT mode, shades 4-8) and grinding (GRIND mode); you only change the shade.
- For preparing the workpiece without taking the helmet off: the 2.5 light state gives a clear view while the arc is off.
Which blower unit it works with
With the Böhler Welding Evolution Air PAPR blower unit, complete kit with filters unit: with the Evolution V80 Air the system meets EN 12941 class TH3 P R SL, and class TH3 A1B1E1 P R SL with gas filters. Airflow 180 to 240 l/min in 6 levels, up to 14 h on the 7800 mAh battery, 1120 g with filters and battery. Units and kits are listed in the Powered air systems category.
Which version to choose
The Böhler Welding Evolution V80 auto-darkening welding helmet has the same filter and 124 x 80 mm viewing area but no face seal or hose connection, so it works without an air supply. The Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR is this helmet with Evolution Air in a bag, with a quick-charge battery (3 h, charger with USB-C port) and spares: 3 front cover lenses, 2 inner lenses and 20 pre-filters. If you want the filter to set the shade itself, choose the Böhler Welding Evolution V80M Air auto-shade welding helmet for the Evolution Air PAPR system: you pay for auto-shade, 2 extra sensors, TACK mode and shade lock.
What makes the Evolution V80 Air different
- 124 x 80 mm viewing area on a UHD display, class V1 to ISO 16321-2.
- Light state shade 2.5, WELD (9-14) and CUT (4-8) modes, shade adjustment in 0.5 steps.
- True Colour technology with reduced blue light transmission and a backlit settings panel.
- 4 arc sensors, delay from 0.1 to 0.85 s in 6 steps, sensitivity in 6 steps.
- Grind mode via the GRIND button on the side of the helmet.
- Powered by 2 replaceable CR2450 batteries for 2500 h, standby after 30 minutes without use.
- Evolution Vision headgear with 4 balancing straps and 3 adjustable straps, circumference adjustment with a knob, plus height and tilt adjustment; neck padding at the back, sweatband at the front.
- Glossy blue shell, air hose connection at the back.
In the box
- Evolution V80 Air helmet with Evolution V80 ADF
- 3 front cover lenses
The box contains no Evolution Air unit, filters, battery pack, hose or belt: you get them with the Böhler Welding Evolution Air PAPR blower unit, complete kit with filters unit. Spawlab is an authorised Böhler Welding distributor in Poland: you buy with a VAT invoice and we ship by courier from Krotoszyn, also to the European Union.
Consumables and spare parts
- Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs): front cover lenses that take the spatter.
- Böhler Welding inner lens Evolution V80, V80M (2 pcs): inner lenses for the V80 filter.
- Böhler Welding ADF auto-darkening filter Evolution V80: spare Evolution V80 ADF, supplied without batteries; it runs on 2 Böhler Welding ADF battery CR2450 Guardian, Evolution Vision, Evolution V80, Laser Guard batteries in the holder Böhler Welding battery retainer Evolution V80, V80M.
- Böhler Welding face seal Evolution V80 Air, V80M Air: face seal for the Evolution V80 and V80M Air.
- Böhler Welding headgear Evolution Vision 65F, 65FM, V80, V80M, Böhler Welding sweatband Pro Evolution Vision 65F, 65FM, V80, V80M (front) and Böhler Welding comfort neck padding Evolution Vision 65F, 65FM, V80, V80M: headgear, front sweatband and neck padding.
- Böhler Welding headgear hinge knobs Evolution Vision 65F, 65FM, V80, V80M (set): headgear hinge knobs.
- Böhler Welding dioptre adapter Evolution V80, V80M with the lens Böhler Welding magnifying lens (dioptre) +1.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.0 for welding helmets or Böhler Welding magnifying lens (dioptre) +2.5 for welding helmets: frame and magnifying lens from +1.0 to +2.5.
- Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air or Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air, with the cover Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air or Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air: air hose to Evolution Air.
Standards and certificates
The ADF is marked 16321 VA W2.5/4-8/9-14 V1 CE to ISO 16321, the shell 16321 VA W15 E HM 1-M CE, the cover lenses EN 166 1 B, in line with Regulation (EU) 2016/425. With Evolution Air the helmet forms a respiratory protection system to EN 12941 class TH3 P R SL, and TH3 A1B1E1 P R SL with gas filters.
Documents
- Evolution V80 and V80M instruction manual (PDF, multilingual)
- Evolution Air instruction manual (PDF, multilingual)
- Evolution V80/V80M Air Kit fact sheet (PDF, English)
- Evolution V80/V80M flyer (PDF, English)
Frequently asked questions
Does the Evolution V80 Air work with Guardian Air or Supplied Air?
EN 12941 certification covers the combination with Evolution Air (TH3 P R SL). Guardian Air and Supplied Air do not have the V80 Air on their lists of certified helmets, so choose Evolution Air or the Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR kit.
Can I grind in it?
Yes. The GRIND button on the side of the helmet switches grind mode on and off. The helmet has no flip-up filter: when grinding you look through the filter in its 2.5 light state.
How long do the filter batteries last?
The filter runs on 2 replaceable CR2450 batteries rated for up to 2500 h of operation. After 30 minutes without use the filter goes into standby.
Can I use the helmet without the air supply?
No. The Evolution Air manual warns that with the unit switched off carbon dioxide builds up quickly under the helmet, oxygen drops and little or no respiratory protection remains.
Is it suitable for laser or gas welding?
No. The Evolution V80 manual excludes laser welding and oxy-acetylene gas welding. For laser welding choose the Böhler Welding Laser Guard Air laser and hybrid welding helmet for PAPR powered air systems.
