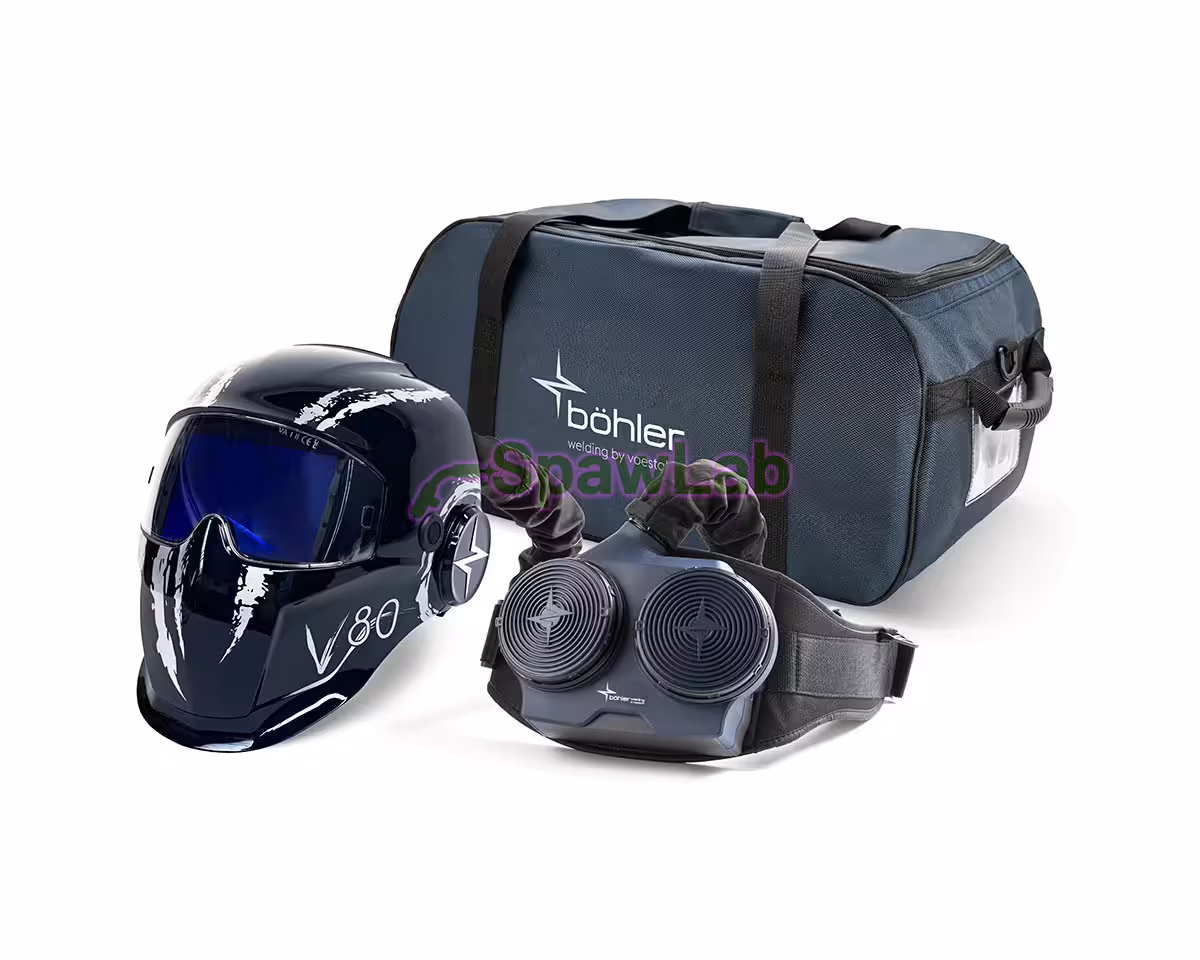

The Evolution V80 Air Kit combines the Evolution V80 Air helmet, where you set the shade yourself in 0.5 steps, with the Evolution Air PAPR in an Evolution Bag 2.0. Viewing area 124 x 80 mm, light state DIN 2.5, shade ranges DIN 4-8 and 9-14 and optical class V1 to ISO 16321-2. The 180-240 l/min air supply reaches class TH3 to EN 12941 with P R SL and A1B1E1 P R SL filters, and the 7800 mAh battery charges in 3 h.
Technical specifications
| Catalogue number | 89509 |
|---|---|
| Brand | Böhler Welding |
| Model | Evolution V80 Air Kit |
| Type | PAPR kit: helmet Evolution V80 Air (glossy blue), blower unit Evolution Air |
| Shade levels (DIN) | 2.5 / 4-8 / 9-14, 0.5 steps |
| ADF viewing area | 124 x 80 mm |
| Optical class (ISO 16321-2) | V1 |
| Air flow | 180-240 l/min (P R SL), 180-200 l/min (A1B1E1 P R SL), 6 levels |
| Protection class (EN 12941) | TH3 P R SL, TH3 A1B1E1 P R SL |
| Battery capacity | Li-Ion 7800 mAh |
| Charging time | 3 h |
| Battery operating time | up to 14 h (lowest level), 11 h (highest) |
| Alarm | visual, audible and vibrating below 170 l/min |
| Weight | blower unit 1120 g with battery and filters |
| Pack quantity | 1 kit |
| Standards | EN 12941, ISO 16321, EN 166 B |
Who it is for
- Welders who want to see more: a 124 x 80 mm viewing area at high welding speeds and in different positions.
- MIG/MAG, TIG, MMA, plasma cutting and grinding in one helmet: you only change the shade range or switch on GRIND.
- Gases and vapours: with A1B1E1 P R SL filters the system stays in class TH3.
- Long shifts: up to 14 h per battery, 3 h to recharge.
The helmet is not for laser or gas welding (acetylene). Limits of the blower system: closed tanks, pipes and ducts without ventilation, oxygen below 19.5 %, explosive atmospheres and strong wind all rule out work with this kit.
What makes the Evolution V80 Air Kit different
- Evolution V80 ADF: light state DIN 2.5, adjustment in 0.5 steps, 4 arc sensors, delay 0.1-0.85 s, 2 CR2450 batteries for 2500 h.
- Amber True Colour with reduced blue light transmission and a backlit settings panel.
- GRIND button on the side of the helmet: you switch on grind mode without taking the helmet off.
- Evolution Vision headgear with 4 balancing straps and 3 adjustable straps, circumference adjustment with a knob, plus height and tilt adjustment.
- Air flow of 180-240 l/min (P R SL) or 180-200 l/min (A1B1E1 P R SL) in 6 levels, kept constant by a microprocessor in the unit.
- Visual, audible and vibrating alarm below 170 l/min.
- Shoulder harness with chest buckle moves part of the unit weight (1120 g with battery and filters) onto your shoulders.
In the box
- Evolution V80 Air helmet (glossy blue) with ADF and face seal
- Evolution Air blower unit with fitted P R SL particle filters, pre-filters, spark arrestors and filter covers
- Heavy-duty Li-Ion battery 7800 mAh, quick charge (3 h)
- Universal quick charger with USB-C port
- Flexible air hose
- Comfort hip belt and shoulder harness
- Airflow tester
- Spare parts: 3 front cover lenses, 2 inner lenses and 20 pre-filters
- Evolution Bag 2.0
- Instruction manual
Consumables and spare parts
For the Evolution Air blower unit
- Böhler Welding P R SL particle filter Evolution Air (4 pcs): main filter, works no longer than 2 weeks or 90 h (whichever is longer)
- Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs): gas filters fitted instead of P R SL, replaced as a pair, no later than 6 months after opening
- Pre-filters Böhler Welding pre-filter Evolution Air (20 pcs), Böhler Welding pre-filter Evolution Air (40 pcs) and the odour Böhler Welding odour pre-filter Evolution Air (6 pcs) extend the life of the main filter
- Böhler Welding spark arrestor Evolution Air (2 pcs) and Böhler Welding filter cover Evolution Air (2 pcs): spark arrestors and filter covers
- Batteries: Böhler Welding heavy-duty battery 7800 mAh Evolution Air, Guardian Air with the Böhler Welding universal PAPR charger Evolution Air, Guardian Air, or the quick-charge Böhler Welding heavy-duty quick-charge battery 7800 mAh Evolution Air, Guardian Air, which needs the Böhler Welding PAPR quick charger for the quick-charge battery Evolution Air, Guardian Air
- Hoses Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air and Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air, covers Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air and Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air, O-rings Böhler Welding air hose O-ring PAPR (20 pcs)
- Belts Böhler Welding PAPR hip belt Evolution Air, Guardian Air and Böhler Welding leather hip belt PAPR Evolution Air, Guardian Air, extension Böhler Welding hip belt extension 265 mm PAPR, Supplied Air, harness Böhler Welding PAPR shoulder harness Evolution Air, Guardian Air, Supplied Air, airflow tester Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
For the Evolution V80 Air helmet
- Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs): front cover lenses
- Böhler Welding inner lens Evolution V80, V80M (2 pcs): inner lenses
- Böhler Welding ADF auto-darkening filter Evolution V80: spare ADF without batteries; batteries Böhler Welding ADF battery CR2450 Guardian, Evolution Vision, Evolution V80, Laser Guard (the ADF takes 2) and their holder Böhler Welding battery retainer Evolution V80, V80M
- Böhler Welding face seal Evolution V80 Air, V80M Air: face seal for Evolution V80 Air
- Böhler Welding headgear Evolution Vision 65F, 65FM, V80, V80M, Böhler Welding sweatband Pro Evolution Vision 65F, 65FM, V80, V80M (front) and Böhler Welding comfort neck padding Evolution Vision 65F, 65FM, V80, V80M: headgear, sweatband and neck padding
- Böhler Welding headgear hinge knobs Evolution Vision 65F, 65FM, V80, V80M (set): hinge knobs
- Magnifying lenses Böhler Welding magnifying lens (dioptre) +1.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.5 for welding helmets with the Böhler Welding dioptre adapter Evolution V80, V80M
To start, add: Böhler Welding P R SL particle filter Evolution Air (4 pcs), Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs) and Böhler Welding inner lens Evolution V80, V80M (2 pcs).
More helmets prepared for air are in the Powered air helmets category.
Standards and certificates
Evolution Air system: EN 12941:1998+A1:2003+A2:2008, with the Evolution V80 Air helmet class TH3 with P R SL and A1B1E1 P R SL filters, nominal protection factor 500, 99.8 % particle-free air. ADF: ISO 16321-2, class V1; front cover lens: EN 166 B. The blower unit is CE and UKCA marked. Spawlab is the authorised distributor and service partner of Böhler Welding in Poland. Inspections and spare parts: Spawlab service in Krotoszyn.
Documents
- Evolution Air instruction manual (PDF, multilingual)
- Evolution V80 and V80M instruction manual (PDF, multilingual)
- Evolution Air and Evolution V80 Air Kit fact sheet, 2026 (PDF, English)
- Evolution V80 and V80M flyer, 2025 (PDF, English)
Frequently asked questions
V80 Air Kit, V80M Air Kit or Evolution Vision 65F Air Kit?
The Böhler Welding Evolution V80M Air Kit, auto-shade welding helmet with Evolution Air PAPR has the same blower unit and viewing area; the extra cost buys AUTO mode, TACK mode for tacking and the shade lock. The Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR has a smaller viewing area (65 x 96 mm), but a flip-up filter with a 180 x 90 mm grinding visor underneath.
Is the V80 Air suitable for plasma cutting and grinding?
Yes. The Evolution V80 is designed for MIG, TIG, MMA, plasma cutting and grinding: CUT mode DIN 4-8, WELD mode DIN 9-14 and the GRIND button on the side of the helmet. It is not for laser or gas welding.
What do I charge a second battery with?
The kit battery charges in 3 h with the universal quick charger with USB-C port. As a second battery choose the Böhler Welding heavy-duty quick-charge battery 7800 mAh Evolution Air, Guardian Air of the same type; the Evolution Air manual specifies the Böhler Welding PAPR quick charger for the quick-charge battery Evolution Air, Guardian Air quick charger for it.
