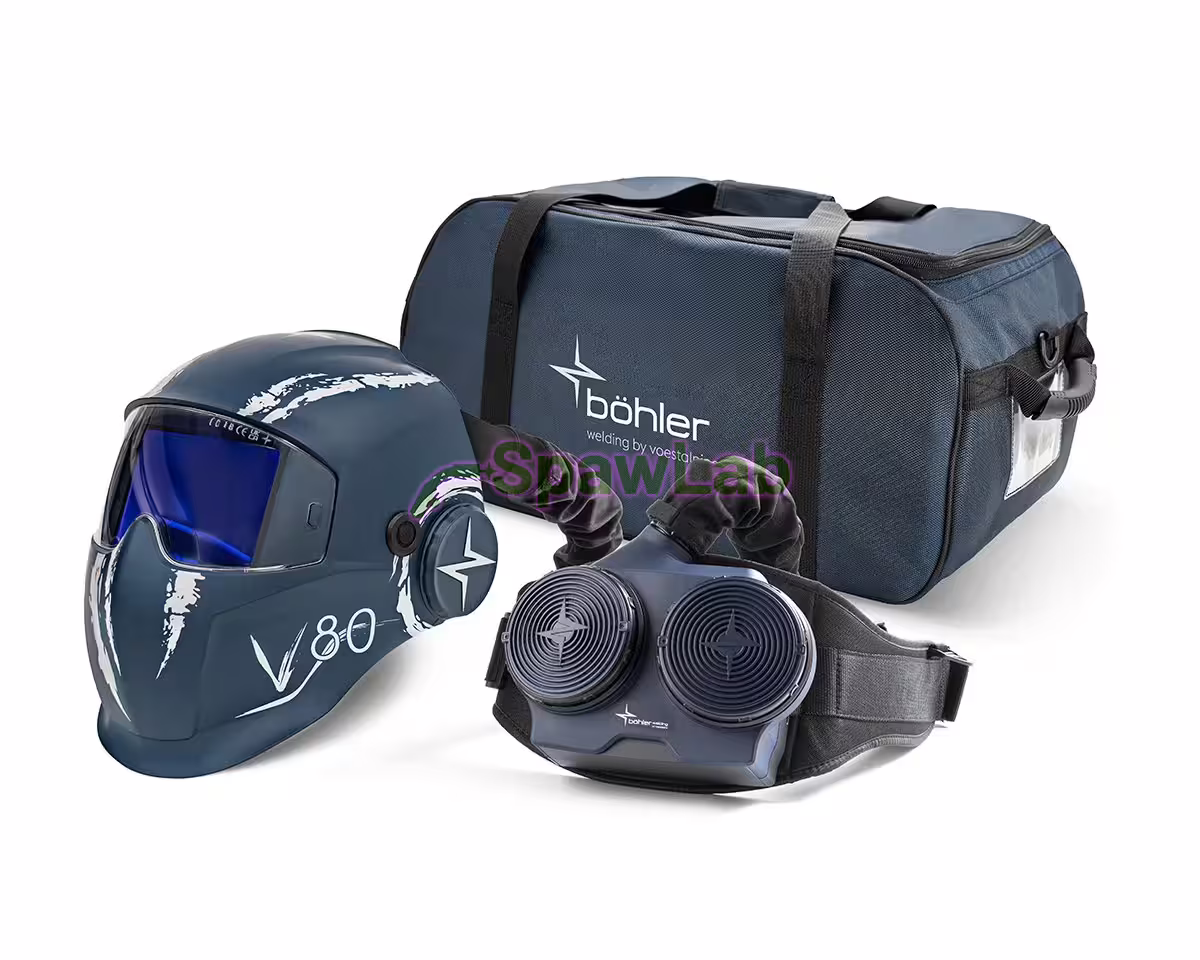

The Evolution V80M Air Kit is the version with AUTO mode: the ADF of the Evolution V80M Air helmet selects the shade by itself and adds a TACK mode and a shade lock. The Evolution Bag 2.0 also holds the Evolution Air PAPR. Viewing area 124 x 80 mm, light state DIN 2.5, shade ranges DIN 4-8 and 9-14 in 0.5 steps, optical class V1 to ISO 16321-2, 180-240 l/min of air in class TH3 to EN 12941 and a 7800 mAh battery that charges in 3 h.
Technical specifications
| Catalogue number | 89510 |
|---|---|
| Brand | Böhler Welding |
| Model | Evolution V80M Air Kit |
| Type | PAPR kit: helmet Evolution V80M Air (matt blue), blower unit Evolution Air |
| Shade levels (DIN) | 2.5 / 4-8 / 9-14, 0.5 steps, AUTO mode +/- 2 |
| ADF viewing area | 124 x 80 mm |
| Optical class (ISO 16321-2) | V1 |
| Air flow | 180-240 l/min (P R SL), 180-200 l/min (A1B1E1 P R SL), 6 levels |
| Protection class (EN 12941) | TH3 P R SL, TH3 A1B1E1 P R SL |
| Battery capacity | Li-Ion 7800 mAh |
| Charging time | 3 h |
| Battery operating time | up to 14 h (lowest level), 11 h (highest) |
| Alarm | visual, audible and vibrating below 170 l/min |
| Weight | blower unit 1120 g with battery and filters |
| Pack quantity | 1 kit |
| Standards | EN 12941, ISO 16321, EN 166 B |
Who it is for
- Tacking and series of short welds: TACK mode keeps the filter half-dark between the tacks.
- Different currents in one shift: AUTO mode selects the shade without you reaching for the buttons.
- A large view: 124 x 80 mm at high welding speeds and in different positions.
- Gases and vapours: with A1B1E1 P R SL filters class TH3 stays unchanged.
Laser and gas welding (acetylene) are outside the scope of this helmet. Under the Evolution Air manual, work is not allowed in unventilated tanks, pipes and ducts, with oxygen under 19.5 %, in explosive atmospheres or in strong wind.
What makes the Evolution V80M Air Kit different
- AUTO mode: 4 arc sensors and 2 auto-shade sensors, correction of the result by 2 shades up or down, shade lock.
- TACK mode, 2-step delay and fade delay; delay 0.1-0.85 s.
- 124 x 80 mm viewing area, light state DIN 2.5, ranges DIN 4-8 and 9-14 adjustable in 0.5 steps, class V1 to ISO 16321-2.
- Evolution Vision headgear with 4 balancing straps and 3 adjustable straps, circumference adjustment with a knob, plus height and tilt adjustment.
- Evolution Air: 180-240 l/min in 6 levels, air flow held by a microprocessor, light, sound and vibration alarm below 170 l/min.
- 7800 mAh battery: up to 14 h at the lowest level, 3 h to charge.
- The 2 CR2450 batteries in the ADF last 2500 h.
In the box
- Evolution V80M Air helmet (matt blue) with ADF and face seal
- Evolution Air blower unit with fitted P R SL particle filters, pre-filters, spark arrestors and filter covers
- Heavy-duty Li-Ion battery 7800 mAh, quick charge (3 h)
- Universal quick charger with USB-C port
- Flexible air hose
- Comfort hip belt and shoulder harness
- Airflow tester
- Spare parts: 3 front cover lenses, 2 inner lenses and 20 pre-filters
- Evolution Bag 2.0
- Instruction manual
Consumables and spare parts
For the Evolution Air blower unit
- Böhler Welding P R SL particle filter Evolution Air (4 pcs): main filter, works no longer than 2 weeks or 90 h (whichever is longer)
- Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs): gas filters fitted instead of P R SL, replaced as a pair, no later than 6 months after opening
- Pre-filters Böhler Welding pre-filter Evolution Air (20 pcs), Böhler Welding pre-filter Evolution Air (40 pcs) and the odour Böhler Welding odour pre-filter Evolution Air (6 pcs) extend the life of the main filter
- Böhler Welding spark arrestor Evolution Air (2 pcs) and Böhler Welding filter cover Evolution Air (2 pcs): spark arrestors and filter covers
- Batteries: Böhler Welding heavy-duty battery 7800 mAh Evolution Air, Guardian Air with the Böhler Welding universal PAPR charger Evolution Air, Guardian Air, or the quick-charge Böhler Welding heavy-duty quick-charge battery 7800 mAh Evolution Air, Guardian Air, which needs the Böhler Welding PAPR quick charger for the quick-charge battery Evolution Air, Guardian Air
- Hoses Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air and Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air, covers Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air and Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air, O-rings Böhler Welding air hose O-ring PAPR (20 pcs)
- Belts Böhler Welding PAPR hip belt Evolution Air, Guardian Air and Böhler Welding leather hip belt PAPR Evolution Air, Guardian Air, extension Böhler Welding hip belt extension 265 mm PAPR, Supplied Air, harness Böhler Welding PAPR shoulder harness Evolution Air, Guardian Air, Supplied Air, airflow tester Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
For the Evolution V80M Air helmet
- Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs): front cover lenses
- Böhler Welding inner lens Evolution V80, V80M (2 pcs): inner lenses
- Böhler Welding ADF auto-darkening filter Evolution V80M auto-shade: spare ADF without batteries; batteries Böhler Welding ADF battery CR2450 Guardian, Evolution Vision, Evolution V80, Laser Guard (the ADF takes 2) and their holder Böhler Welding battery retainer Evolution V80, V80M
- Böhler Welding face seal Evolution V80 Air, V80M Air: face seal for Evolution V80 Air
- Böhler Welding headgear Evolution Vision 65F, 65FM, V80, V80M, Böhler Welding sweatband Pro Evolution Vision 65F, 65FM, V80, V80M (front) and Böhler Welding comfort neck padding Evolution Vision 65F, 65FM, V80, V80M: headgear, sweatband and neck padding
- Böhler Welding headgear hinge knobs Evolution Vision 65F, 65FM, V80, V80M (set): hinge knobs
- Magnifying lenses Böhler Welding magnifying lens (dioptre) +1.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +1.5 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.0 for welding helmets, Böhler Welding magnifying lens (dioptre) +2.5 for welding helmets with the Böhler Welding dioptre adapter Evolution V80, V80M
To start, add: Böhler Welding P R SL particle filter Evolution Air (4 pcs), Böhler Welding pre-filter Evolution Air (20 pcs) and Böhler Welding front cover lens Evolution Vision 65F, 65FM, V80, V80M (5 pcs).
More helmets prepared for air are in the Powered air helmets category.
Standards and certificates
Evolution Air system: EN 12941:1998+A1:2003+A2:2008, with the Evolution V80M Air helmet class TH3 with P R SL and A1B1E1 P R SL filters, nominal protection factor 500, 99.8 % particle-free air. ADF: ISO 16321-2, class V1; front cover lens: EN 166 B. The blower unit is CE and UKCA marked. Spawlab is the authorised distributor and service partner of Böhler Welding in Poland. Inspections and spare parts: Spawlab service in Krotoszyn.
Documents
- Evolution Air instruction manual (PDF, multilingual)
- Evolution V80 and V80M instruction manual (PDF, multilingual)
- Evolution Air and Evolution V80 Air Kit fact sheet, 2026 (PDF, English)
- Evolution V80 and V80M flyer, 2025 (PDF, English)
Frequently asked questions
What is TACK mode for?
When tacking, the filter does not return to the light state between tacks but stays half-dark, lighter than the set shade. When you stop welding, it switches to the light state after 2 s. The manual names this function, the 2-step delay and the fade delay as ways to reduce eye fatigue.
V80M Air Kit or V80 Air Kit, or perhaps the 65FM Air Kit?
Compared with the Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR you pay extra for AUTO mode, TACK and the shade lock; the blower unit and viewing area are the same. The Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR also selects the shade itself and has a 180 x 90 mm grinding visor under a flip-up filter, but a 65 x 96 mm viewing area instead of 124 x 80 mm.
Is the V80M Air suitable for grinding?
Yes. The GRIND button on the side of the helmet switches the filter to grind mode without taking the helmet off. The same helmet is used for MIG, TIG, MMA and plasma cutting; you only change the shade range.
Does Guardian Air work with the V80M Air?
Choose Evolution Air. The manufacturer documents list certification for the V80 Air and V80M Air only with this unit (TH3 with P R SL and A1B1E1 P R SL filters). The unit on its own is available as Böhler Welding Evolution Air PAPR blower unit, complete kit with filters, the helmet on its own as Böhler Welding Evolution V80M Air auto-shade welding helmet for the Evolution Air PAPR system.
