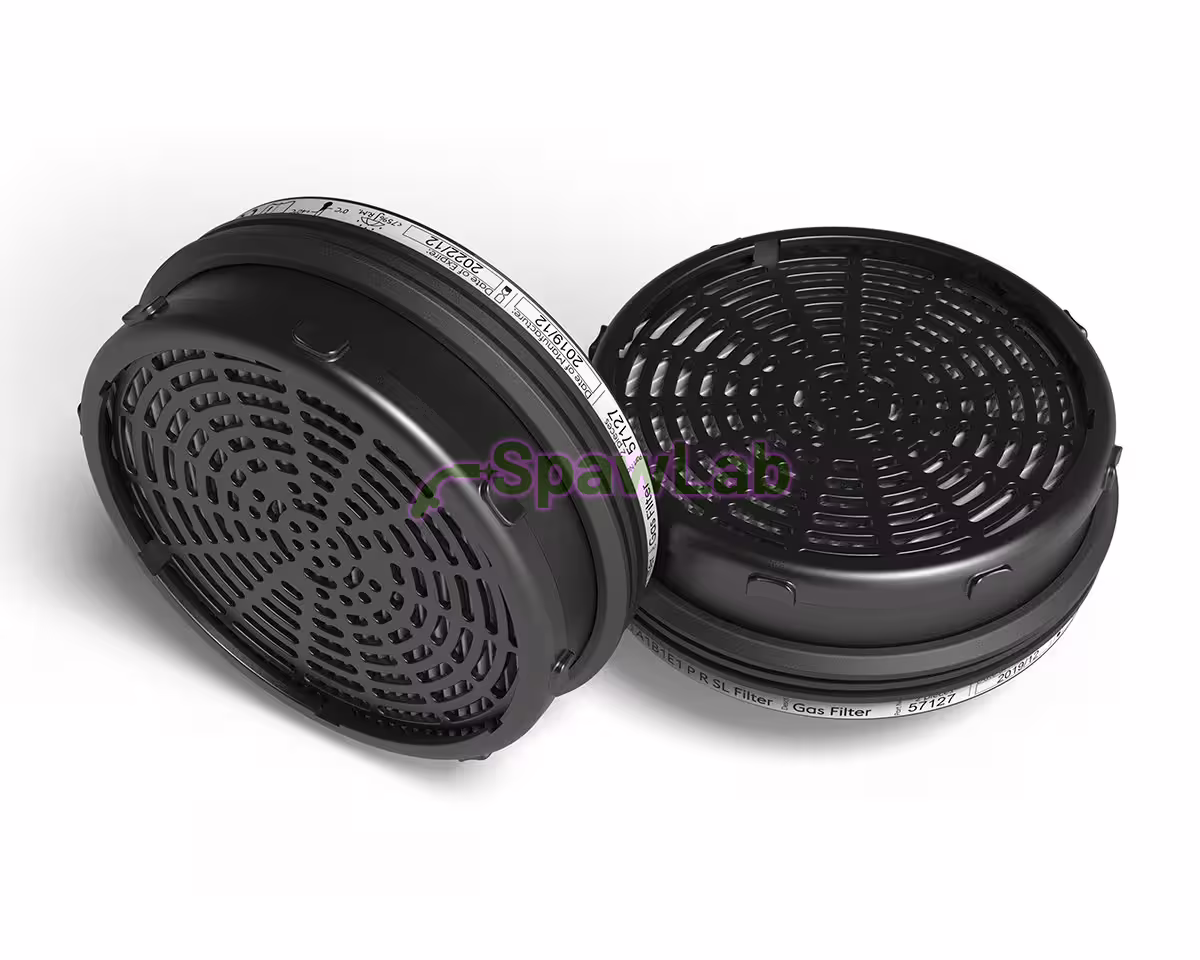

The A1B1E1 P R SL gas filter is a combined filter for the Böhler Welding Evolution Air powered air-purifying respirator: it adds a gas layer to the P R SL particle filter. Use it where gases and vapours are present in the air besides welding fume. Each pack holds 2 filters, one set for the twin-filter unit.
Technical specifications
| Catalogue number | 57127 |
|---|---|
| Brand | Böhler Welding |
| Compatible with | Evolution Air (77008, 77011) |
| Type | combined gas and particle filter |
| Protects against | A1, B1, E1 (gases and vapours), P (particles) |
| Protection class (EN 12941) | TH2 to TH3 A1B1E1 P R SL (depending on helmet) |
| Colour marking | white, brown, grey, yellow |
| Max. flow per filter | 100 l/min |
| Unit air flow | 180 to 200 l/min |
| After opening | max. 6 months |
| Storage | 0 to +40 °C, 0 to 75 % RH |
| Fitting | screwed in by hand, both at once |
| Pack quantity | 2 pcs |
| Standards | EN 12941:1998+A1:2003+A2:2008 |
Who it is for
For Evolution Air users exposed to gases and vapours together with particles. The filter manual requires the type and concentration of contaminants to be known and an oxygen level of at least 19.5 %. Do not use it in unventilated spaces (manholes, containers, pipelines) or in explosive atmospheres. Guardian Air and Supplied Air do not work with this filter.
Key features
- A: organic gases and vapours with a boiling point above 65 °C (brown).
- B: inorganic gases and vapours (grey).
- E: sulphur dioxide and other acid gases (yellow).
- P: particles in the form of solid and liquid aerosols (white).
Performance in the Evolution Air system
- Airflow with gas filters: 180 to 200 l/min in 6 steps; each filter is certified up to 100 l/min.
- Class with the Guardian 50M Air, 50FM Air, 62 Air and 62F Air helmets: TH2 ABE1 P R SL.
- With Evolution Vision 65F Air, 65FM Air and Big Vision Air: TH3 ABE1 P R SL.
- With Evolution V80 Air, V80M Air and Laser Guard Air: TH3 A1B1E1 P R SL.
Fitting and replacing the A1B1E1 P R SL gas filter
Unscrew the filter anticlockwise until it comes free of the unit. Check the new one for damage and screw it in by hand until tight. Always change both filters together and never mix filter types in the unit. Once the pack is opened, the filter may be used for 6 months at most; the storage period in the sealed pack is shown by a pictogram on the filter. Store at 0 to +40 °C and up to 75 % humidity, and dispose of used filters as hazardous waste.
Caution when welding: near open flame and flying hot particles the filter may catch fire. Heavy vapours can collect close to the floor.
Compatible with
The Evolution Air unit only, and the kits built on it:
- Böhler Welding Evolution Air PAPR blower unit, complete kit with filters
- Böhler Welding Evolution Air motor unit, PAPR blower without filters
- Böhler Welding Guardian 62 Air Kit, welding helmet with Evolution Air PAPR
- Böhler Welding Guardian 62F Air Kit, flip-up welding helmet with Evolution Air PAPR
- Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR
- Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR
- Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR
- Böhler Welding Evolution V80M Air Kit, auto-shade welding helmet with Evolution Air PAPR
- Böhler Welding Big Vision Air Kit Evolution Air, grinding visor with Evolution Air PAPR
Consumables and spare parts
- Böhler Welding P R SL particle filter Evolution Air (4 pcs)
- Böhler Welding pre-filter Evolution Air (20 pcs)
- Böhler Welding spark arrestor Evolution Air (2 pcs)
- Böhler Welding filter cover Evolution Air (2 pcs)
- Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
All PAPR parts: Filters and powered air parts.
Standards and certificates
EN 12941:1998+A1:2003+A2:2008, CE marking; Evolution Air with this filter reaches class TH2 to TH3 A1B1E1 P R SL depending on the helmet.
Documents
- A1B1E1 P R SL gas filter manual (PDF, multilingual)
- Evolution Air instruction manual (PDF, multilingual)
- Evolution V80 Air Kit fact sheet with Evolution Air spare parts (PDF, English)
- PPE & accessories catalogue 2023/24 (PDF, English)
Frequently asked questions
Can I fit one gas filter and one P R SL filter?
No. All filters in the unit must be of the same type, and both gas filters are changed at the same time.
Why is the airflow lower with gas filters?
Each gas filter is certified up to 100 l/min, so the unit delivers 180 to 200 l/min with them instead of 240 l/min.
Does it fit Guardian Air?
No. The filter manual allows only the certified Evolution Air system; Guardian Air works with the P R SL filter only.
