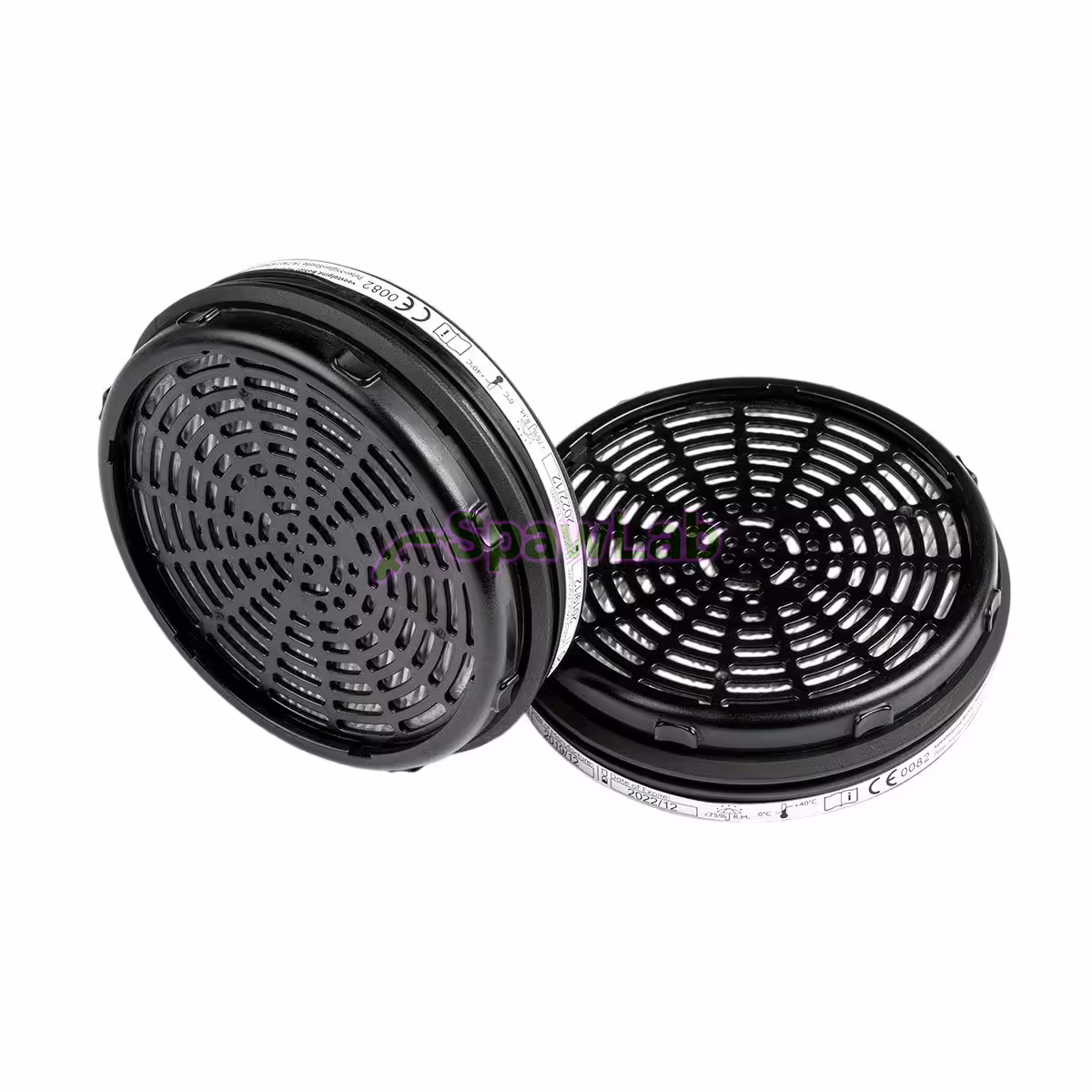

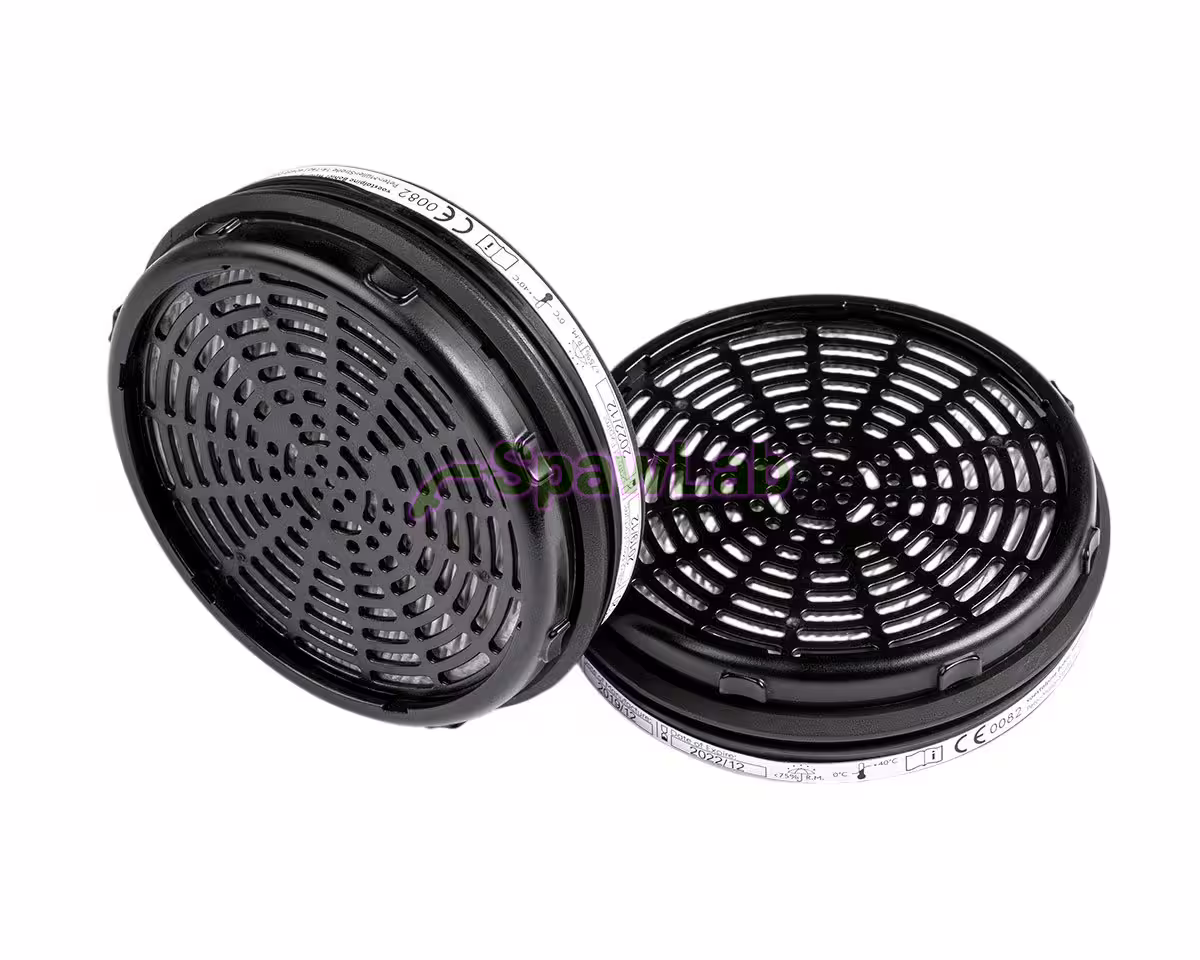

The P R SL particle filter for Evolution Air is the main filter of this Böhler Welding powered air-purifying respirator (PAPR). It stops dust and fume from welding and grinding, and with the Evolution Air blower unit the system meets the highest protection class TH3 to EN 12941 (99.8 % particle-free air). Each pack holds 4 filters; part number 88452 replaces the former 57106 and 57120.
Technical specifications
| Catalogue number | 88452 |
|---|---|
| Brand | Böhler Welding |
| Compatible with | Evolution Air (77008, 77011) |
| Type | P R SL particle filter |
| Protection class (EN 12941) | TH3 P R SL |
| Protects against | solid and liquid particles (dust, fume, aerosols) |
| Colour marking | white |
| Fitting | screwed in by hand |
| Max. filter working time | 2 weeks or 90 h (whichever is greater) |
| Storage | 0 to +40 °C, below 75 % RH |
| Replaces part numbers | 57106, 57120 |
| Pack quantity | 4 pcs |
| Bulk pack | 16 packs (64 pcs) |
| Standards | EN 12941:1998 |
Who it is for
For welders and grinders who wear a helmet with air supply on the Evolution Air unit. The filter does not stop organic vapours and gases; for those you need the A1B1E1 P R SL gas filter. Do not use the system in tanks, pipes or channels, or where the oxygen content is below 19.5 %.
Key features
- The letter P in the P R SL marking stands for particles in the form of solid and liquid aerosols.
- With Evolution Air: class TH3 P R SL to EN 12941:1998+A1:2003+A2:2008, nominal protection factor 500.
- Stops most particles: dust, liquid aerosols, bacteria, viruses and enzymes.
- On P R SL filters the unit delivers 180 to 240 l/min in 6 steps; with gas filters only up to 200 l/min.
- No tools needed: you screw the filter in and out by hand.
Fitting and replacing the particle filter for Evolution Air
Evolution Air has two round filter seats, so a pack of 4 gives two sets. Before fitting, check that the filter housing and seal are intact, then screw the filter in by hand until tight. The pre-filter, spark arrestor and filter cover go on top of the filter.
The manual limits a main filter to 2 weeks or 90 hours of use, whichever is the greater, and the warranty requires a change at least every 2 weeks. Replace a damaged or clogged filter sooner: when the low-flow alarm (below 170 l/min) persists after changing the pre-filter. Never clean or reuse filters.
Compatible with
The Evolution Air unit and the kits built on it:
- Böhler Welding Evolution Air PAPR blower unit, complete kit with filters
- Böhler Welding Evolution Air motor unit, PAPR blower without filters
- Böhler Welding Guardian 62 Air Kit, welding helmet with Evolution Air PAPR
- Böhler Welding Guardian 62F Air Kit, flip-up welding helmet with Evolution Air PAPR
- Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR
- Böhler Welding Evolution Vision 65FM Air Kit, auto-shade welding helmet with Evolution Air PAPR
- Böhler Welding Evolution V80 Air Kit, welding helmet with Evolution Air PAPR
- Böhler Welding Evolution V80M Air Kit, auto-shade welding helmet with Evolution Air PAPR
- Böhler Welding Big Vision Air Kit Evolution Air, grinding visor with Evolution Air PAPR
Guardian Air uses its own filter of a different design: Böhler Welding P R SL particle filter Guardian Air (4 pcs).
Consumables and spare parts
- Böhler Welding pre-filter Evolution Air (20 pcs)
- Böhler Welding odour pre-filter Evolution Air (6 pcs)
- Böhler Welding spark arrestor Evolution Air (2 pcs)
- Böhler Welding filter cover Evolution Air (2 pcs)
- Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs)
- Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
All PAPR parts: Filters and powered air parts.
Standards and certificates
The filter is marked EN 12941:1998 and CE; in the Evolution Air system class TH3 P R SL.
Documents
- Evolution Air P R SL filter manual (PDF, multilingual)
- Evolution Air instruction manual (PDF, multilingual)
- Evolution V80 Air Kit fact sheet with Evolution Air spare parts (PDF, English)
Frequently asked questions
How often should I change the P R SL filter?
After 2 weeks or 90 working hours at the latest, whichever is the greater. In dusty conditions it clogs sooner: if the airflow alarm persists after a new pre-filter, change the main filters.
Does this filter protect against gases?
No. Particle filters do not stop organic vapours and gases. For gases and vapours use the Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs), which works with Evolution Air only.
Can I fit one P R SL filter and one gas filter?
No. All filters fitted in the unit at the same time must be of the same type.
Is there a larger pack?
A bulk pack of 16 packs (64 pcs) is also available.
