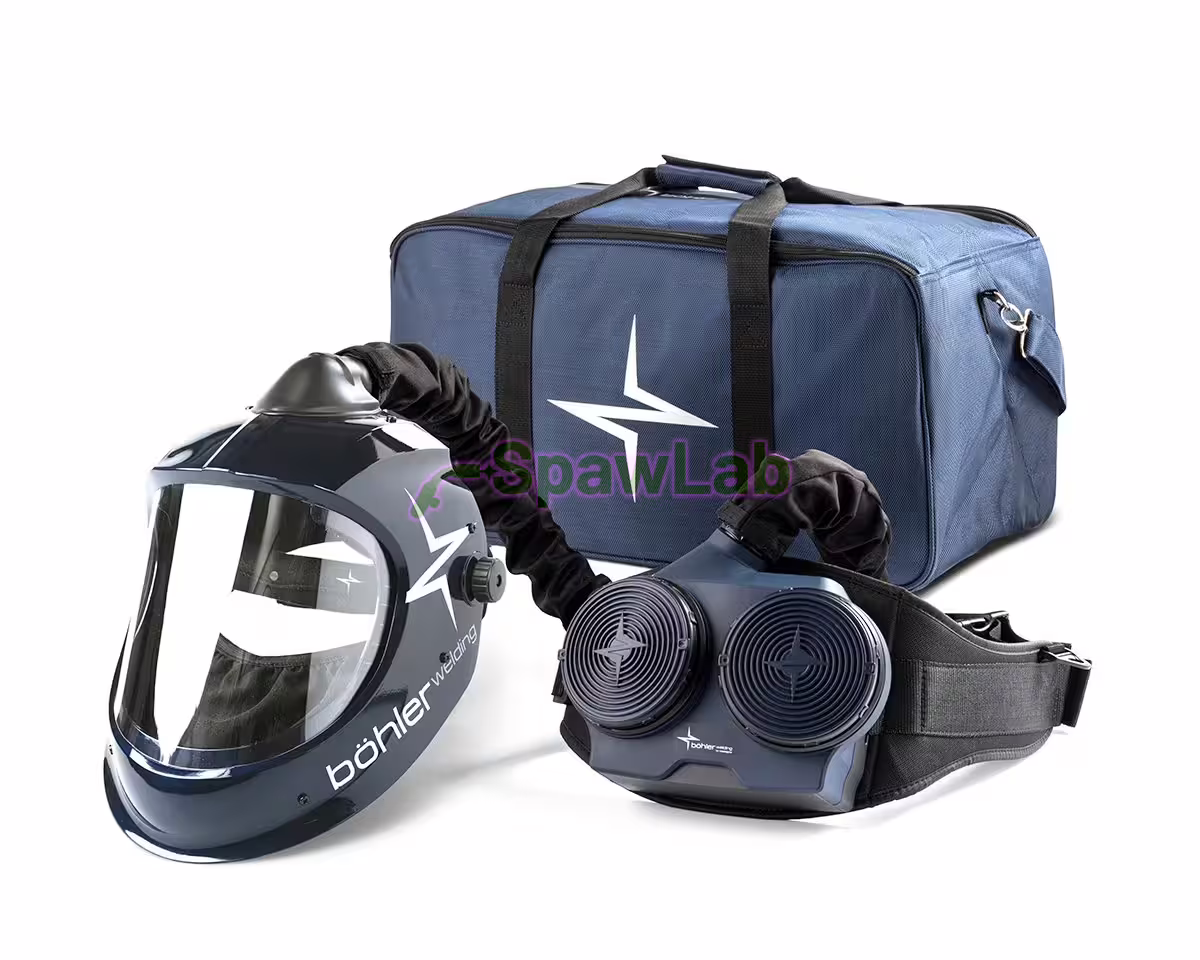

The Big Vision Air Kit Evolution Air is a grinding set with the stronger blower unit: the Big Vision Air grinding visor with a 180 x 160 mm screen and Evolution Air (PAPR). The 180-240 l/min air supply reaches class TH3 to EN 12941 with P R SL filters and with A1B1E1 P R SL gas filters, and the 7800 mAh battery lasts up to 14 h. The visor weighs 545 g including the face seal.
Technical specifications
| Catalogue number | 88576 |
|---|---|
| Brand | Böhler Welding |
| Model | Big Vision Air Kit Evolution Air |
| Type | PAPR kit: helmet Big Vision Air, grinding visor (glossy blue), blower unit Evolution Air |
| Viewing area | screen 180 x 160 mm |
| Air flow | 180-240 l/min (P R SL), 180-200 l/min (A1B1E1 P R SL), 6 levels |
| Protection class (EN 12941) | TH3 P R SL, TH3 A1B1E1 P R SL |
| Battery capacity | Li-Ion 7.4 V, 7800 mAh |
| Charging time | 8-9 h |
| Battery operating time | up to 14 h (lowest level), 11 h (highest) |
| Alarm | visual, audible and vibrating below 170 l/min |
| Weight | visor 545 g with face seal, blower unit 1120 g with battery and filters |
| Operating temperature | visor -5 to +55 °C, blower unit 0 to +40 °C |
| Pack quantity | 1 kit |
| Standards | EN 12941, EN 166 B |
Who it is for
- Grinding and weld cleaning in dust: the visor covers the eyes and the whole face, and the P R SL filters clean the air.
- Dust together with gases and vapours: with A1B1E1 P R SL filters fitted the kit stays in class TH3.
- Long shifts: up to 14 h per battery at the lowest level.
- Workshops with Air series welding helmets: Evolution Air is certified with them as well.
Big Vision Air has no welding filter, so you do not use it for welding; the manual recommends impact-resistant safety glasses underneath, for example Böhler Welding Eyewear Clear safety glasses. The kit is not used in closed tanks and ducts without ventilation, at oxygen levels below 19.5 %, in explosive atmospheres or in strong wind.
What makes the Big Vision Air Kit Evolution Air different
- The 180 x 160 mm screen (no welding filter) withstands medium energy impact (class B to EN 166), sparks and heat.
- A knob above the screen sets how much air reaches the forehead.
- Air flow of 180-240 l/min with P R SL filters and 180-200 l/min with A1B1E1 P R SL filters, class TH3 in both cases.
- 6 blower levels and a microprocessor that compensates for filter clogging and falling battery voltage.
- When the air flow drops below 170 l/min, the unit warns with light, sound and vibration.
- Li-Ion battery 7.4 V, 7800 mAh: 14 h at the lowest and 11 h at the highest level.
- Part of the unit weight (1120 g with battery and filters) is taken by the shoulder harness.
In the box
- Big Vision Air grinding visor (glossy blue) with face seal
- Evolution Air blower unit (PAPR): complete set for work
The complete Evolution Air system sold separately is described on the Böhler Welding Evolution Air PAPR blower unit, complete kit with filters page.
Consumables and spare parts
For the Evolution Air blower unit
- Böhler Welding P R SL particle filter Evolution Air (4 pcs): main filter, works no longer than 2 weeks or 90 h (whichever is longer)
- Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs): gas filters fitted instead of P R SL, replaced as a pair, no later than 6 months after opening
- Pre-filters Böhler Welding pre-filter Evolution Air (20 pcs), Böhler Welding pre-filter Evolution Air (40 pcs) and the odour Böhler Welding odour pre-filter Evolution Air (6 pcs) extend the life of the main filter
- Böhler Welding spark arrestor Evolution Air (2 pcs) and Böhler Welding filter cover Evolution Air (2 pcs): spark arrestors and filter covers
- Batteries: Böhler Welding heavy-duty battery 7800 mAh Evolution Air, Guardian Air with the Böhler Welding universal PAPR charger Evolution Air, Guardian Air, or the quick-charge Böhler Welding heavy-duty quick-charge battery 7800 mAh Evolution Air, Guardian Air, which needs the Böhler Welding PAPR quick charger for the quick-charge battery Evolution Air, Guardian Air
- Hoses Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air and Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air, covers Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air and Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air, O-rings Böhler Welding air hose O-ring PAPR (20 pcs)
- Belts Böhler Welding PAPR hip belt Evolution Air, Guardian Air and Böhler Welding leather hip belt PAPR Evolution Air, Guardian Air, extension Böhler Welding hip belt extension 265 mm PAPR, Supplied Air, harness Böhler Welding PAPR shoulder harness Evolution Air, Guardian Air, Supplied Air, airflow tester Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
For the Big Vision Air grinding visor
- Böhler Welding grinding visor Big Vision, Big Vision Air (2 pcs): grinding screens; tinted DIN 5 version: Böhler Welding visor shade 5 Big Vision, Big Vision Air (2 pcs)
- Böhler Welding tear-off film Big Vision, Big Vision Air for grinding visor (10 pcs): protective film for the grinding screen
- Böhler Welding face seal Guardian 50M Air, 50FM Air, 62 Air, 62F Air, Big Vision Air and Böhler Welding air duct Guardian 50M Air, 50FM Air, 62 Air, 62F Air, Big Vision Air: face seal and air duct
- Böhler Welding headgear Guardian 50, 62, 62F, Big Vision, Laser Guard and Böhler Welding sweatbands Guardian 50, 62, 62F, Big Vision, Laser Guard (2 pcs, front and rear): headgear and sweatbands
- Böhler Welding head top pouch (black): head top pouch
To start, add: Böhler Welding P R SL particle filter Evolution Air (4 pcs), Böhler Welding pre-filter Evolution Air (20 pcs) and Böhler Welding grinding visor Big Vision, Big Vision Air (2 pcs).
More helmets prepared for air are in the Powered air helmets category.
Standards and certificates
Evolution Air system: EN 12941:1998+A1:2003+A2:2008, with the Big Vision Air helmet class TH3 with P R SL and A1B1E1 P R SL filters, nominal protection factor 500, 99.8 % particle-free air. Big Vision Air visor: EN 166 (shell and screen, medium energy impact B), Regulation (EU) 2016/425. The blower unit is CE and UKCA marked. Spawlab is the authorised distributor and service partner of Böhler Welding in Poland. Inspections and spare parts: Spawlab service in Krotoszyn.
Documents
- Evolution Air instruction manual (PDF, multilingual)
- Big Vision and Big Vision Air instruction manual (PDF, multilingual)
- Big Vision and Big Vision Air info sheet (PDF, English)
- Evolution Air and Evolution V80 Air Kit fact sheet, 2026 (PDF, English)
Frequently asked questions
Can the Big Vision Air replace a welding helmet?
No, it is a grinding visor only, without protection against arc light. If you weld and grind in turns, choose a kit with a flip-up ADF and grinding visor, for example the Böhler Welding Evolution Vision 65F Air Kit, flip-up welding helmet with Evolution Air PAPR.
What do I pay extra for compared with the Guardian Air kit?
The visor is the same, the difference is the blower unit. Compared with the Böhler Welding Big Vision Air Kit Guardian Air, grinding visor with Guardian Air PAPR you get up to 240 l/min instead of 220 l/min, a battery for 14 h instead of 8 h, a vibrating alarm and the option of A1B1E1 P R SL gas filters. Guardian Air is lighter: 870 g against 1120 g. Already have a unit? Buy the visor on its own, Böhler Welding Big Vision Air grinding visor for PAPR powered air systems.
How often should I change the filters?
Check or change the pre-filter when the alarm goes off. The Böhler Welding P R SL particle filter Evolution Air (4 pcs) P R SL main filter works no longer than 2 weeks or 90 h (whichever is longer), the Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs) filters up to 6 months after opening, always as a pair.
