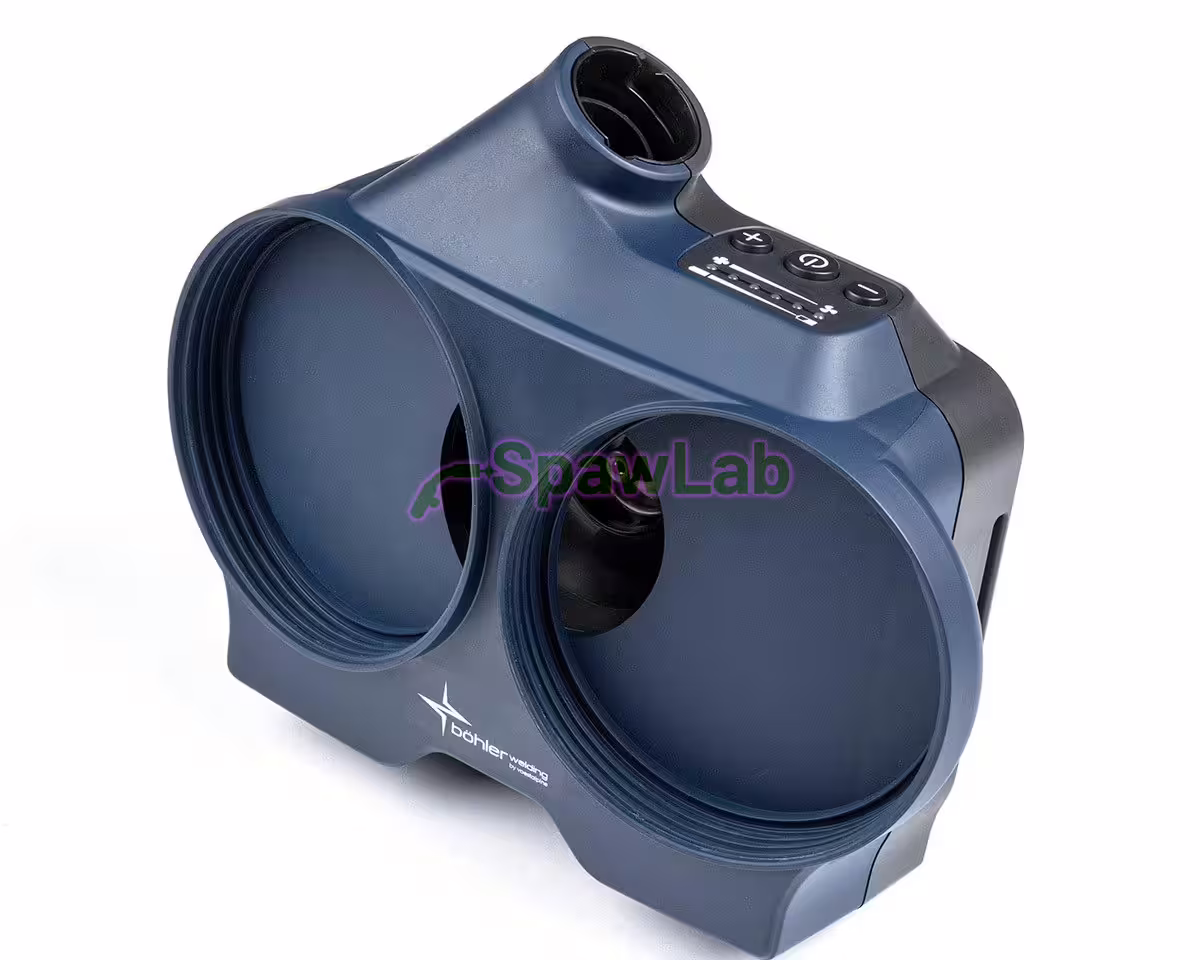

The Evolution Air motor unit is the blower with control panel for the Evolution Air PAPR system, sold without filters. You order it as a spare part when the rest of the system is in working order. Assembled with P R SL filters it delivers 180-240 l/min in 6 levels and class TH3 to EN 12941.
Technical specifications
| Catalogue number | 77011 |
|---|---|
| Brand | Böhler Welding |
| Model | Evolution Air, motor unit |
| Compatible with | Evolution Air blower system |
| Air flow | 180-240 l/min (P R SL), 180-200 l/min (A1B1E1 P R SL), 6 levels |
| Protection class (EN 12941) | TH3 P R SL, TH2-TH3 A1B1E1 P R SL (system) |
| Filter | P R SL or A1B1E1 P R SL (separate) |
| Battery capacity | Li-Ion 7.4 V, 7800 mAh or 5200 mAh (separate) |
| Alarm | visual, audible and vibrating below 170 l/min |
| Noise level | 65 dB |
| Operating temperature | 0 to +40 °C |
| Pack quantity | 1 pc. |
| Standards | EN 12941 |
Who it is for
- Evolution Air users whose blower unit is damaged while the battery, belt, hose and charger still work.
- Companies that keep a spare unit so that a workstation does not stand still during a repair.
- Equipping a workstation from scratch? Choose the complete Böhler Welding Evolution Air PAPR blower unit, complete kit with filters system: besides the unit you get filters, a 7800 mAh battery, charger, hose, belt, harness and airflow tester.
Once assembled, the limits of the whole system apply: no enclosed unventilated spaces, no oxygen below 19.5 %, no explosive atmospheres, no strong wind.
What makes the Evolution Air motor unit different
- Air flow of 180-240 l/min with P R SL filters and 180-200 l/min with A1B1E1 P R SL filters, 6 levels, +/- buttons held for 2 s.
- Microprocessor-controlled electronics keep the air flow steady as the filters clog and the battery voltage falls.
- Three signals below 170 l/min (light, sound, vibration) and a visual alarm for a low battery.
- Works with the 7800 mAh heavy-duty battery (up to 14 h at the lowest level, 11 h at the highest) and with the 5200 mAh standard battery.
- You screw the filters in by hand without tools, and the disc-shaped pre-filter sits under the filter cover.
- Noise 65 dB; works at 0 to +40 °C.
In the box
- Evolution Air motor unit
Compatible with
The motor unit is part of the Böhler Welding Evolution Air PAPR blower unit, complete kit with filters system and, once assembled, works with the same helmets.
Helmets certified with Evolution Air (head sizes 535 to 600 mm) and the protection class of each combination:
- Böhler Welding Guardian 50M Air welding helmet for PAPR powered air systems, Böhler Welding Guardian 50FM Air flip-up welding helmet for PAPR powered air systems, Böhler Welding Guardian 62 Air welding helmet for PAPR powered air systems and Böhler Welding Guardian 62F Air flip-up welding helmet for PAPR powered air systems: class TH3 with P R SL filters, TH2 with A1B1E1 P R SL filters
- Böhler Welding Evolution Vision 65F Air flip-up welding helmet for PAPR powered air systems and Böhler Welding Evolution Vision 65FM Air auto-shade welding helmet for PAPR powered air systems: TH3 with both filter types
- Böhler Welding Evolution V80 Air welding helmet for the Evolution Air PAPR system and Böhler Welding Evolution V80M Air auto-shade welding helmet for the Evolution Air PAPR system: TH3 with both filter types
- Böhler Welding Big Vision Air grinding visor for PAPR powered air systems: grinding visor, TH3 with both filter types
- Böhler Welding Laser Guard Air laser and hybrid welding helmet for PAPR powered air systems: helmet for laser and arc welding, TH3 with both filter types
Consumables and spare parts
- Böhler Welding P R SL particle filter Evolution Air (4 pcs): main filter, works no longer than 2 weeks or 90 h (whichever is longer)
- Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs): gas filters fitted instead of P R SL, replaced as a pair, no later than 6 months after opening
- Pre-filters Böhler Welding pre-filter Evolution Air (20 pcs), Böhler Welding pre-filter Evolution Air (40 pcs) and the odour Böhler Welding odour pre-filter Evolution Air (6 pcs) extend the life of the main filter
- Böhler Welding spark arrestor Evolution Air (2 pcs) and Böhler Welding filter cover Evolution Air (2 pcs): spark arrestors and filter covers
- Batteries: Böhler Welding heavy-duty battery 7800 mAh Evolution Air, Guardian Air with the Böhler Welding universal PAPR charger Evolution Air, Guardian Air, or the quick-charge Böhler Welding heavy-duty quick-charge battery 7800 mAh Evolution Air, Guardian Air, which needs the Böhler Welding PAPR quick charger for the quick-charge battery Evolution Air, Guardian Air
- Hoses Böhler Welding FLEX flexible air hose up to 180 cm Evolution Air, Guardian Air and Böhler Welding standard air hose 100 cm Evolution Air, Guardian Air, Supplied Air, covers Böhler Welding air hose cover up to 120 cm Evolution Air, Guardian Air and Böhler Welding air hose cover up to 180 cm Evolution Air, Guardian Air, O-rings Böhler Welding air hose O-ring PAPR (20 pcs)
- Belts Böhler Welding PAPR hip belt Evolution Air, Guardian Air and Böhler Welding leather hip belt PAPR Evolution Air, Guardian Air, extension Böhler Welding hip belt extension 265 mm PAPR, Supplied Air, harness Böhler Welding PAPR shoulder harness Evolution Air, Guardian Air, Supplied Air, airflow tester Böhler Welding ball rotameter, airflow tester for PAPR and Supplied Air
Choose the face seal to match the helmet: Böhler Welding face seal Guardian 50M Air, 50FM Air, 62 Air, 62F Air, Big Vision Air for Guardian Air and Big Vision Air helmets, Böhler Welding face seal Evolution Vision 65F Air, 65FM Air for Evolution Vision 65 Air, Böhler Welding face seal Evolution V80 Air, V80M Air for Evolution V80 Air.
More respiratory systems and kits are in the Powered air systems category.
Standards and certificates
EN 12941:1998+A1:2003+A2:2008, in the Evolution Air system class TH3 P R SL and TH2-TH3 A1B1E1 P R SL, nominal protection factor 500. CE and UKCA marked. Manufacturer warranty: 24 months on the blower unit. Spawlab is the authorised distributor and service partner of Böhler Welding in Poland. Inspections, repairs and parts: Spawlab service in Krotoszyn.
Documents
- Evolution Air instruction manual (PDF, multilingual)
- Evolution Air P R SL filter instructions (PDF, multilingual)
- Evolution Air and Evolution V80 Air Kit fact sheet, 2026 (PDF, English)
- PPE and accessories catalogue 2023/24 (PDF, English)
Frequently asked questions
What is in the box and what do I need separately?
The box holds the Evolution Air motor unit only, without filters. To start, add: Böhler Welding P R SL particle filter Evolution Air (4 pcs) (or the Böhler Welding A1B1E1 P R SL gas filter Evolution Air (2 pcs) gas filters), Böhler Welding pre-filter Evolution Air (20 pcs) and Böhler Welding spark arrestor Evolution Air (2 pcs); move the Böhler Welding filter cover Evolution Air (2 pcs) covers over from your existing system or order new ones. The battery, charger, belt and hose come from the kit you already have.
Does it fit the older Böhler Air system?
Yes, the 77011 motor unit replaces the Böhler Air unit 57044. The consumables of both systems have the same part numbers, for example the Böhler Welding pre-filter Evolution Air (20 pcs) pre-filters and the Böhler Welding heavy-duty battery 7800 mAh Evolution Air, Guardian Air battery.
Motor unit or the complete Evolution Air system?
The motor unit is enough when the rest of the kit works. The complete Böhler Welding Evolution Air PAPR blower unit, complete kit with filters differs in that, besides the unit with P R SL filters, you get a 7800 mAh battery, charger, hose, belt, harness and airflow tester, everything for the first start-up.
