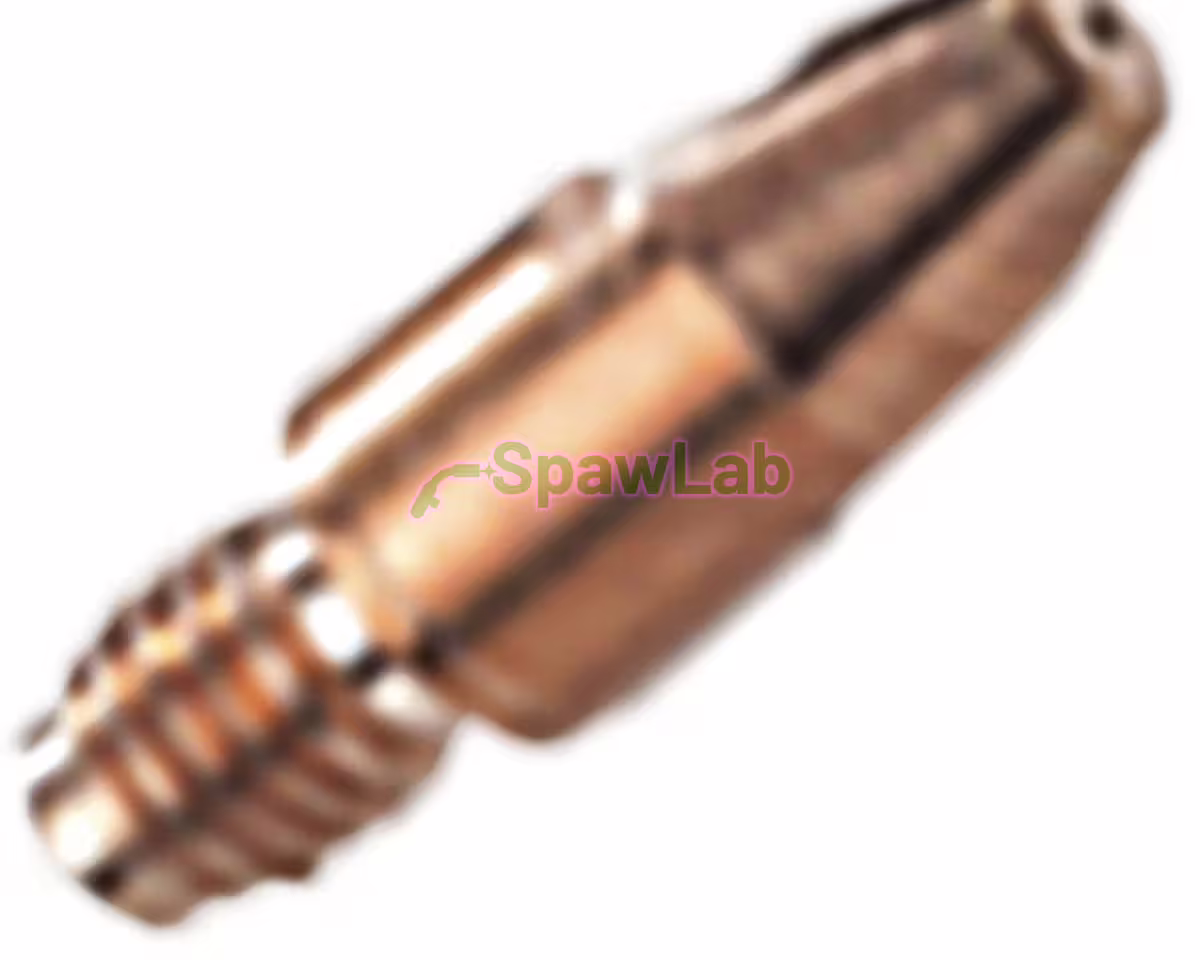

Böhler Welding contact tip made of CuCrZr alloy for 0.8 mm wire, M8 x 1 thread, 30 mm long. It fits the MT 350 G, MT 440 W, MT 540 W (incl. U/D) and PP Plus 401 D.
What it is for
The contact tip transfers current to the wire and guides it into the arc. Replace it when the bore is worn, the arc becomes unstable or the wire feeds unevenly.
| Part number | 82.16.72948 |
|---|---|
| Brand | Böhler Welding |
| Material | CuCrZr (copper-chromium-zirconium alloy) |
| Version | standard |
| Wire diameter | 0.8 mm |
| Thread | M8 x 1 mm |
| Length | 30 mm |
| Drawing item no. (price list 2026/27) | 2 (MT 350 G), 3 (MT 440 W, MT 540 W), 5 (PP Plus 401 D) |
| Pack quantity | 10 pcs |
Fits
- MT 350 G 4 m
- MT 350 G U/D 4 m
- MT 440 W 3 m, MT 440 W 4 m
- MT 440 W U/D 3 m, MT 440 W U/D 4 m
- MT 540 W 3 m, MT 540 W 4 m
- MT 540 W U/D 3 m, MT 540 W U/D 4 m
- PP Plus 401 D 4 m, PP Plus 401 D 8 m
Also order
Useful when replacing contact tips:
- Tip holder M8 for MT 350 G (5 pcs)
- Tip holder M8 for MT 440 W (5 pcs)
- Tip holder M8 for MT 540 W (5 pcs)
- Insulated steel liner blue 0.8 mm, 3 m
FAQ
Which wire is this tip for?
For 0.8 mm wire. The same version in other sizes: 1.0 mm, 1.2 mm and 1.6 mm.
How does CuCrZr differ from ECu?
CuCrZr is a copper-chromium-zirconium alloy, harder than electrolytic copper (ECu). The bore keeps its size longer at higher currents and during long welding runs; thread and length are the same. ECu version: ECu M8 0.8 mm.
Does it fit the MT 150 G?
No. The MT 150 G uses M6 tips, 25 mm long, for example ECu M6 0.8 mm.
We source Böhler Welding parts from the manufacturer as its authorised distributor and service partner in Poland. You get a VAT invoice, and we ship from Krotoszyn, also to EU countries.
